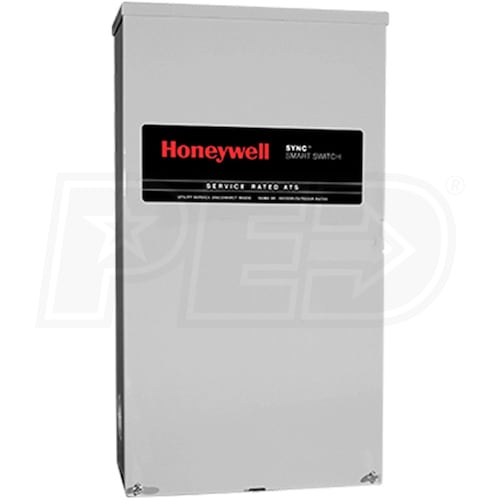

Honeywell™ 400-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management (Service Disconnect)
Model: RTSM400A3
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Ask a Question
$2,649.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
Learn More Installation
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Type
Service Disconnect
Amp Rating
400
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Type
Service Disconnect
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Features
Features
  • Honeywell™ 400-Amp Automatic Transfer Switch
  • Designed speficially for Honeywell™ SYNC™ Controllers
  • Service Entrance Rated (Load Side & Line Side Disc. Breakers)
  • Installs between main meter & service panel
  • DPM Technology So Your Generator Works Smarter
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
  • Air conditioners, water heaters, well pumps, etc. (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Honeywell Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: #4 - 2-250 MCM
  • Best- In-Class 5-Year Limited Warranty - UL Listed
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
140 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
48 Inches
Product Width
21.82 Inches
Product Height
10.06 Inches
UPC
696471620139
Type
Service Disconnect
Amp Rating
400
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Type
Service Disconnect
Load Mgmt.
Built-In
Enclosure
NEMA 3R
