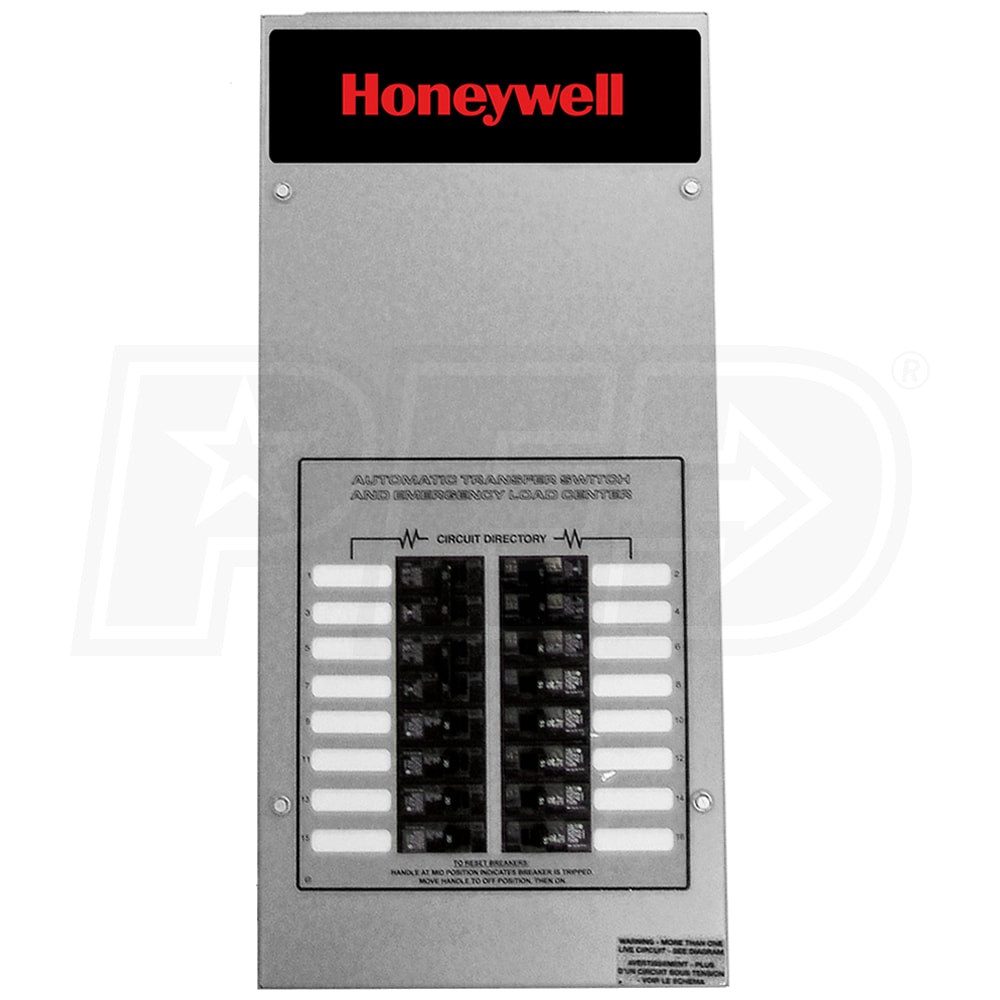

Honeywell™ 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center

Honeywell™ 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
Our Price
Compare Prices
Shipping Info
Model: RTG16EZA1H
$789.00

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -

Learn More
Free Shipping$789.00Buy Now
$795.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Type
Load Center
Amp Rating
100
Circuits
16
Enclosure
NEMA 1R
Type
Load Center
Circuits
16
Enclosure
NEMA 1R
Features
Features
  • Honeywell 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
  • Perfect for backing up emergency circuits
  • Steel NEMA-1 Indoor Enclosure
  • Electrostatically applied and baked powder paint
  • Breakers:
  • 5 x 15A (120V) 1-Pole
  • 5 x 20A (120V) 1-Pole
  • 1 x 20A (240V) 2-Pole
  • 1 x 40A (240V) 2-Pole
  • 1 x 50A (240V) 2-Pole
  • Recommended Generator Size Range 11kW - 16kW
  • For Use With Honeywell Standby Generators Only
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Transfer Switch Style
Select Circuit
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
Overview
Weight
30 Pounds
Consumer Warranty
5 Years
Product Length
27 Inches
Product Width
13 Inches
Product Height
7 Inches
UPC
696471001273
Transfer Switch Circuits
15A 120V
5
20A 120V
5
30A 240V
1
40A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Type
Load Center
Amp Rating
100
Circuits
16
Enclosure
NEMA 1R
Type
Load Center
Circuits
16
Enclosure
NEMA 1R
Features
Features
  • Honeywell 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
  • Perfect for backing up emergency circuits
  • Steel NEMA-1 Indoor Enclosure
  • Electrostatically applied and baked powder paint
  • Breakers:
  • 5 x 15A (120V) 1-Pole
  • 5 x 20A (120V) 1-Pole
  • 1 x 20A (240V) 2-Pole
  • 1 x 40A (240V) 2-Pole
  • 1 x 50A (240V) 2-Pole
  • Recommended Generator Size Range 11kW - 16kW
  • For Use With Honeywell Standby Generators Only
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Transfer Switch Style
Select Circuit
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
Overview
Weight
30 Pounds
Consumer Warranty
5 Years
Product Length
27 Inches
Product Width
13 Inches
Product Height
7 Inches
UPC
696471001273
Transfer Switch Circuits
15A 120V
5
20A 120V
5
30A 240V
1
40A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Transfer Switch Style
Select Circuit
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
Overview
Weight
30 Pounds
Consumer Warranty
5 Years
Product Length
27 Inches
Product Width
13 Inches
Product Height
7 Inches
UPC
696471001273
Transfer Switch Circuits
15A 120V
5
20A 120V
5
30A 240V
1
40A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
