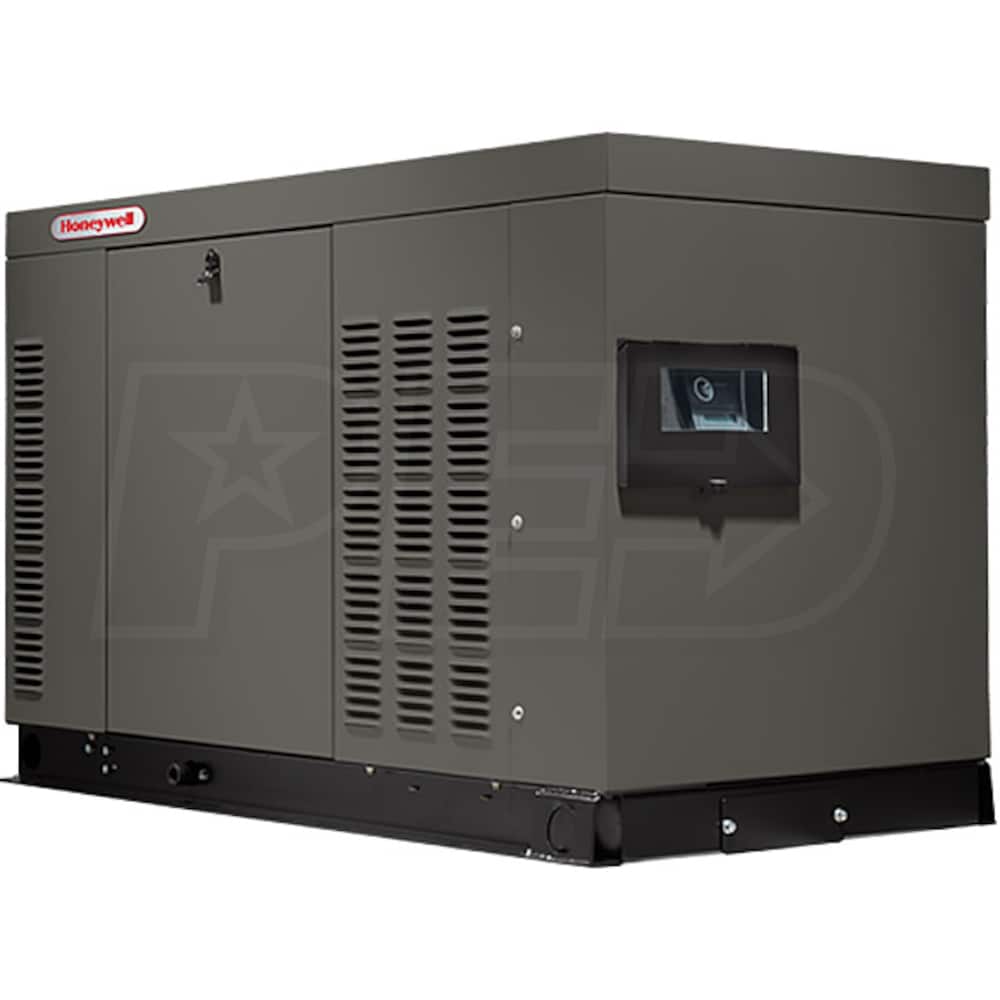

Honeywell™ 32 kW Commercial Automatic Standby Generator (120/208V 3-Phase)
Model: HG03224GNAX
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
32,000
Rated Watts
Surge Watts
32,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
32,000
Surge Watts
32,000 Starting Watts
Fuel
LP/Natural Gas
Engine
Generac 2.4L 4-Cylinder
Features
Features
- Honeywell™ 32 kW Commercial Emergency Standby Generator
- For commercial building with 120/208V 3-Phase service
- Runs on clean burning Natural Gas (NG) or Liquid Propane (LP)
- Powered By Generac's Turbocharged 2.4L Inline 4-Cylinder Liquid Cooled Engine
- Runs at 1800 RPM, allowing for quieter operation, reduced fuel costs and longevity
- PrecisionPower™ Electrical Technology - Less Than 5% THD
- Utility quality power that won't harm electronics & micro-chip based appliances
- Digital SYNC 1.0™ Generator Controller w/ 2-Line LCD Screen
- Easily view logs of history, maintenance and events
- External viewing window for generator status & breaker position
- State-Of-The-Art Power Maximizing Regulation System
- Optimized for fast response time to varying loads & +/- 1% Digital Voltage Regulation
- WhisperCheck™ Self-Test Exercise Mode - Only 58 dB(A)
- Slower engine speeds during testing, produces less noise and saves fuel
- Aluminum Enclosure w/ RhinoCoat™ Finish
- Withstands winds up to 150 mph & provides protection from the elements
- Requires* Honeywell™ Automatic Transfer Switch (Sold Separately)
- Provides fully automatic operation & total system compatibility
- Best-In-Class 5-Year Comprehensive Warranty -Not For Sale In CA/MA
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
32000 Watts
Surge Watts
32000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
32000 Watts
LP Power Capacity
32000 Watts
NG Fuel Consumption @ 50% Load
226 ft³/hr
NG Fuel Consumption @ 100% Load
375 ft³/hr
LP Fuel Consumption @ 50% Load
2.7 gallons/hr
LP Fuel Consumption @ 100% Load
4.6 gallons/hr
Rated Amps
111 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64 Run (58 Test) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
1225 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
76.8 Inches
Product Width
35 Inches
Product Height
46.1 Inches
UPC
696471618877
Transfer Switch Circuits
Circuit Breaker Size
100 Amps
Grade
Style
Run Watts
32,000
Rated Watts
Surge Watts
32,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
32,000
Surge Watts
32,000 Starting Watts
Fuel
LP/Natural Gas
Engine
Generac 2.4L 4-Cylinder
Features
Features
- Honeywell™ 32 kW Commercial Emergency Standby Generator
- For commercial building with 120/208V 3-Phase service
- Runs on clean burning Natural Gas (NG) or Liquid Propane (LP)
- Powered By Generac's Turbocharged 2.4L Inline 4-Cylinder Liquid Cooled Engine
- Runs at 1800 RPM, allowing for quieter operation, reduced fuel costs and longevity
- PrecisionPower™ Electrical Technology - Less Than 5% THD
- Utility quality power that won't harm electronics & micro-chip based appliances
- Digital SYNC 1.0™ Generator Controller w/ 2-Line LCD Screen
- Easily view logs of history, maintenance and events
- External viewing window for generator status & breaker position
- State-Of-The-Art Power Maximizing Regulation System
- Optimized for fast response time to varying loads & +/- 1% Digital Voltage Regulation
- WhisperCheck™ Self-Test Exercise Mode - Only 58 dB(A)
- Slower engine speeds during testing, produces less noise and saves fuel
- Aluminum Enclosure w/ RhinoCoat™ Finish
- Withstands winds up to 150 mph & provides protection from the elements
- Requires* Honeywell™ Automatic Transfer Switch (Sold Separately)
- Provides fully automatic operation & total system compatibility
- Best-In-Class 5-Year Comprehensive Warranty -Not For Sale In CA/MA
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
32000 Watts
Surge Watts
32000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
32000 Watts
LP Power Capacity
32000 Watts
NG Fuel Consumption @ 50% Load
226 ft³/hr
NG Fuel Consumption @ 100% Load
375 ft³/hr
LP Fuel Consumption @ 50% Load
2.7 gallons/hr
LP Fuel Consumption @ 100% Load
4.6 gallons/hr
Rated Amps
111 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64 Run (58 Test) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
1225 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
76.8 Inches
Product Width
35 Inches
Product Height
46.1 Inches
UPC
696471618877
Transfer Switch Circuits
Circuit Breaker Size
100 Amps
Product Specs
+−
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
32000 Watts
Surge Watts
32000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
32000 Watts
LP Power Capacity
32000 Watts
NG Fuel Consumption @ 50% Load
226 ft³/hr
NG Fuel Consumption @ 100% Load
375 ft³/hr
LP Fuel Consumption @ 50% Load
2.7 gallons/hr
LP Fuel Consumption @ 100% Load
4.6 gallons/hr
Rated Amps
111 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64 Run (58 Test) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
1225 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
76.8 Inches
Product Width
35 Inches
Product Height
46.1 Inches
UPC
696471618877
Transfer Switch Circuits
Circuit Breaker Size
100 Amps
