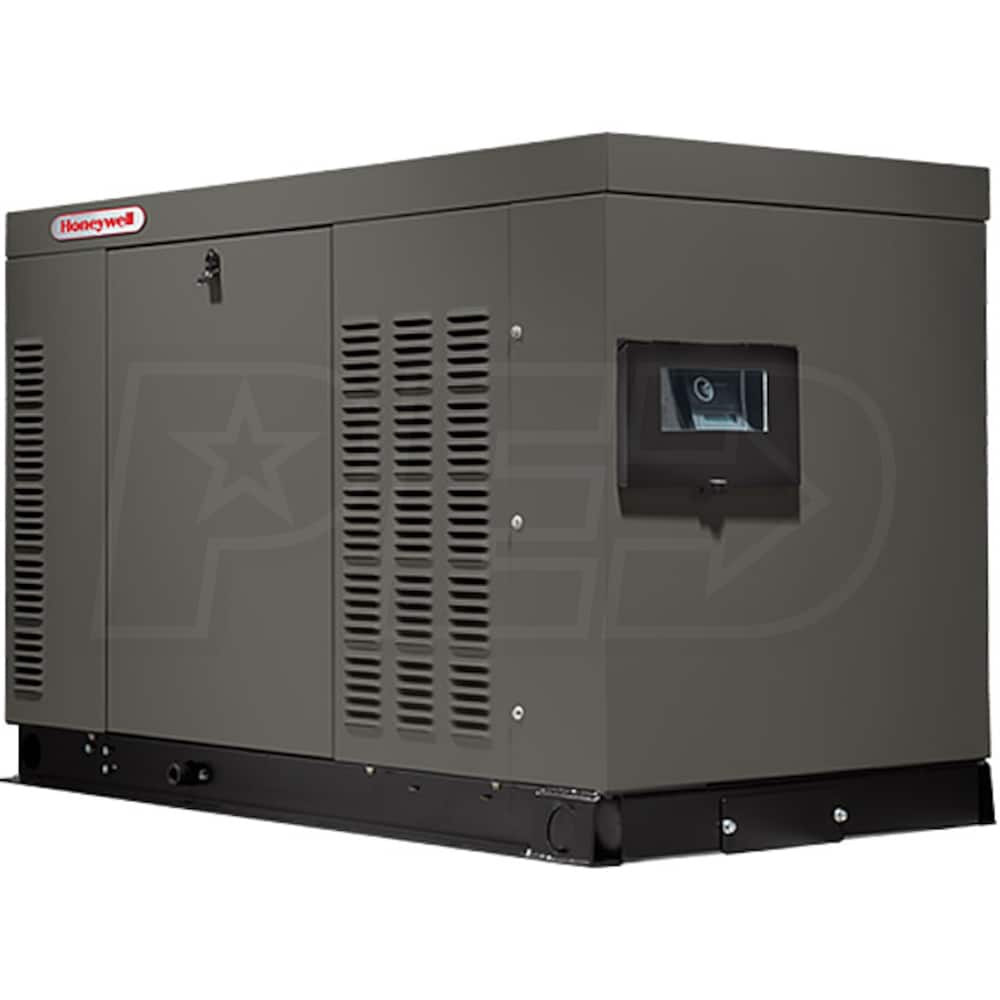

Honeywell™ 22 kW Liquid-Cooled Automatic Standby Generator (Premium-Grade) w/ Mobile Link™ (120/240V Single-Phase)
Model:
HG02224ANAX
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
22,000 Rated Watts
Surge Watts
22,000
Starting Watts
Fuel
LP/Natural Gas
Engine
Generac 2.4L 4-Cylinder
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Honeywell™ 22 kW Liquid-Cooled Automatic Standby Generator
- Runs on clean burning Natural Gas (NG) or Liquid Propane (LP)
- Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection
- Powered By Generac's 2.4L Inline 4-Cylinder Liquid Cooled Engine
- Runs at 1800 RPM, allowing for quieter operation, reduced fuel costs and longevity
- PrecisionPower™ Electrical Technology - Less Than 5% THD
- Utility quality power that won't harm electronics & micro-chip based appliances
- Digital SYNC 1.0™ Generator Controller w/ 2-Line LCD Screen
- Easily view logs of history, maintenance and events
- External viewing window for generator status & breaker position
- State-Of-The-Art Power Maximizing Regulation System
- Optimized for fast response time to varying loads & +/- 1% Digital Voltage Regulation
- WhisperCheck™ Self-Test Exercise Mode - Only 61 dB(A)
- Slower engine speeds during testing, produces less noise and saves fuel
- Aluminum Enclosure w/ RhinoCoat™ Finish
- Withstands winds up to 150 mph & provides protection from the elements
- Requires* Honeywell™ Automatic Transfer Switch (Sold Separately)
- Provides fully automatic operation & total system compatibility
- Best-In-Class 5-Year Comprehensive Warranty
^Please Note - Requires Loading Dock or Forklift For Delivery^
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
HG02224ANAX
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
905 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
62.2 Inches
Product Width
30.6 Inches
Product Height
38.5 Inches
UPC
696471618839
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Surge Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
22000 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
190 ft³/hr
NG Fuel Consumption @ 100% Load
316 ft³/hr
LP Fuel Consumption @ 50% Load
2.1 gallons/hr
LP Fuel Consumption @ 100% Load
3.4 gallons/hr
Rated Amps
92 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70 Run (61 Test) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Transfer Switch Circuits
Circuit Breaker Size
100 Amps
