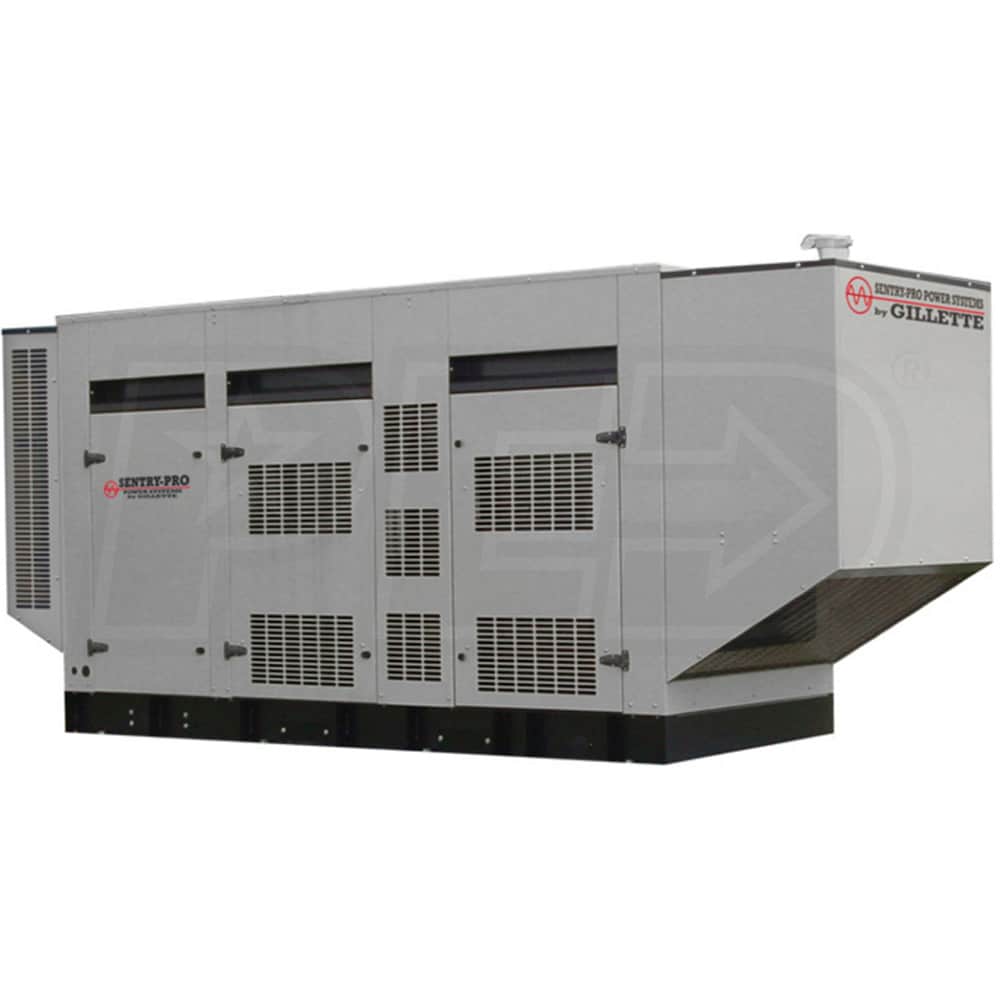

Gillette T4D-1500 - 150 kW Prime Power Tier 4 Final Diesel Generator (120/240V 3-Phase)

Gillette T4D-1500 - 150 kW Prime Power Tier 4 Final Diesel Generator (120/240V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: T4D-1500-3-3
(Based on expert analysis, manufacturer ratings and customer reviews)
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
150,000
Rated Watts
Voltage
120/240 Three-Phase
Fuel
Engine
Volvo
Grade
Professional
Style
Standby (Liquid Cooled)
Run Watts
150,000
Voltage
120/240 Three-Phase
Fuel
Diesel
Engine
Volvo
Features
Features
  • Gillette T4D-1500 - 150kW Prime Power Tier 4 Diesel Generator
  • For commercial applications with 120/240V 3-Phase service
  • Please contact us for additional voltage options
  • 7.7L Volvo-Penta 6-Cylinder Liquid Cooled Diesel Engine
  • Provides long life, high performance, and great fuel efficiency
  • Electronic governor for precise isochronous frequency regulation
  • EPA emissions certified and Tier IV Final compliant
  • Stamford Brushless Alternator (UL Certified)
  • Circuit-breaker protection, wired to gen-set
  • Self-ventilated and drip proof construction
  • Automatic Voltage Regulation (+/- 1 %)
  • Solid state, frequency compensated design
  • Under-speed and Over-excitation protection
  • Deep Sea 7420 Generator Controller
  • Digital microprocessor w/ logic for programming in the field
  • Backlit LCD display for engine/generator status and warnings
  • Stop / Manual / Auto Modes and automatic engine shutdowns
  • Level 2 - Weather / Soundproof Aluminum Housing
  • Enamel Powder Coat for corrosion resistance
  • 18/8 Stainless Steel hardware for maximum enclosure life
  • Includes Critical Grade Muffler
  • Operates at only 83 dB @ 23'
  • 3-Stage Battery Charger w/ Float (Battery Not Included)
  • Also includes battery tray, cables and hold down straps
  • PLEASE NOTE - Requires Fuel Tank (Sold Separately)
  • 24 Month / 1000 Hour Engine & Generator Warranty
Specifications
Engine
Engine Brand
Volvo
Starting System
12v Auto Start
CC
7700 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
150000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
6.81 gallons/hr
Rated Amps
451 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
83
Hour Meter
Yes
Voltage Meter
Yes
Enclosure
Aluminum
Battery
Not Included
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Professional
Overview
Made in USA
Yes
Weight
7547 Pounds
Product Length
162 Inches
Product Width
52 Inches
Product Height
80 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Grade
Style
Run Watts
150,000
Rated Watts
Voltage
120/240 Three-Phase
Fuel
Engine
Volvo
Grade
Professional
Style
Standby (Liquid Cooled)
Run Watts
150,000
Voltage
120/240 Three-Phase
Fuel
Diesel
Engine
Volvo
Features
Features
  • Gillette T4D-1500 - 150kW Prime Power Tier 4 Diesel Generator
  • For commercial applications with 120/240V 3-Phase service
  • Please contact us for additional voltage options
  • 7.7L Volvo-Penta 6-Cylinder Liquid Cooled Diesel Engine
  • Provides long life, high performance, and great fuel efficiency
  • Electronic governor for precise isochronous frequency regulation
  • EPA emissions certified and Tier IV Final compliant
  • Stamford Brushless Alternator (UL Certified)
  • Circuit-breaker protection, wired to gen-set
  • Self-ventilated and drip proof construction
  • Automatic Voltage Regulation (+/- 1 %)
  • Solid state, frequency compensated design
  • Under-speed and Over-excitation protection
  • Deep Sea 7420 Generator Controller
  • Digital microprocessor w/ logic for programming in the field
  • Backlit LCD display for engine/generator status and warnings
  • Stop / Manual / Auto Modes and automatic engine shutdowns
  • Level 2 - Weather / Soundproof Aluminum Housing
  • Enamel Powder Coat for corrosion resistance
  • 18/8 Stainless Steel hardware for maximum enclosure life
  • Includes Critical Grade Muffler
  • Operates at only 83 dB @ 23'
  • 3-Stage Battery Charger w/ Float (Battery Not Included)
  • Also includes battery tray, cables and hold down straps
  • PLEASE NOTE - Requires Fuel Tank (Sold Separately)
  • 24 Month / 1000 Hour Engine & Generator Warranty
Specifications
Engine
Engine Brand
Volvo
Starting System
12v Auto Start
CC
7700 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
150000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
6.81 gallons/hr
Rated Amps
451 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
83
Hour Meter
Yes
Voltage Meter
Yes
Enclosure
Aluminum
Battery
Not Included
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Professional
Overview
Made in USA
Yes
Weight
7547 Pounds
Product Length
162 Inches
Product Width
52 Inches
Product Height
80 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
+
Specifications
Engine
Engine Brand
Volvo
Starting System
12v Auto Start
CC
7700 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
150000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
6.81 gallons/hr
Rated Amps
451 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
83
Hour Meter
Yes
Voltage Meter
Yes
Enclosure
Aluminum
Battery
Not Included
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Professional
Overview
Made in USA
Yes
Weight
7547 Pounds
Product Length
162 Inches
Product Width
52 Inches
Product Height
80 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
