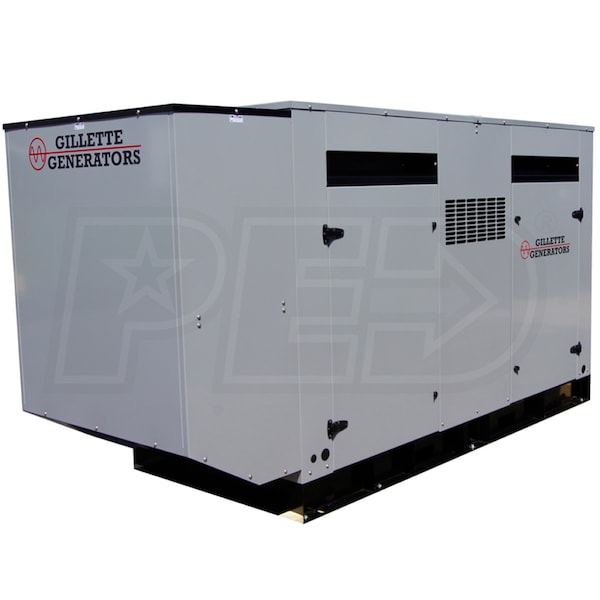

Gillette SPJD-800 75kW Automatic Standby JOHN DEERE Powered Diesel Generator (120/240V Single-Phase)

Gillette SPJD-800 75kW Automatic Standby JOHN DEERE Powered Diesel Generator (120/240V Single-Phase)
Our Price
Compare Prices
Shipping Info
Model: SPJD-800-1-1
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.

Call 1 (800) 800-3317 for pricing and order information.



Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
75,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
John Deere
Grade
Style
Standby (Liquid Cooled)
Run Watts
75,000
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
John Deere
Features
Features
  • Gillette SPJD-800 - 75kW Standby Diesel Generator
  • For residential applications with 120/240V Single-Phase service
  • Please contact us for additional voltage options
  • 4.5L John Deere 4-Cylinder Liquid Cooled Diesel Engine
  • Provides long life, high performance, and great fuel efficiency
  • Electronic governor for precise isochronous frequency regulation
  • Stamford Brushless Alternator (UL Certified)
  • Circuit-breaker protection, wired to gen-set
  • Self-ventilated and drip proof construction
  • Automatic Voltage Regulation (1/2 %)
  • Solid state, frequency compensated design
  • Under-speed and Over-excitation protection
  • Deep Sea 7420 Generator Controller
  • Digital microprocessor w/ logic for programming in the field
  • Backlit LCD display for engine/generator status and warnings
  • Stop / Manual / Auto Modes and automatic engine shutdowns
  • Level 2 - Weather / Soundproof Aluminum Housing
  • Enamel Powder Coat for corrosion resistance
  • 18/8 Stainless Steel hardware for maximum enclosure life
  • Includes Critical Grade Muffler
  • Operates at only 73 dB @ 23'
  • 2-Stage Battery Charger w/ Float (Battery Not Included)
  • Also includes battery tray, cables and hold down straps
  • PLEASE NOTE - Requires Fuel Tank (Sold Separately)
  • *Not Designed For Prime Power Applications*
  • 24 Month / 2000 Hour (Engine) & 24 Month / 1000 Hour (Generator) Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
75000 Watts
Fuel Type
Diesel
Rated Amps
312 Amps
Diesel Fuel Consumption @ 50% Load
4.0 gallons/hr
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
73
Hour Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Engine
Engine Brand
John Deere
Starting System
12v Auto Start
CC
4500 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
