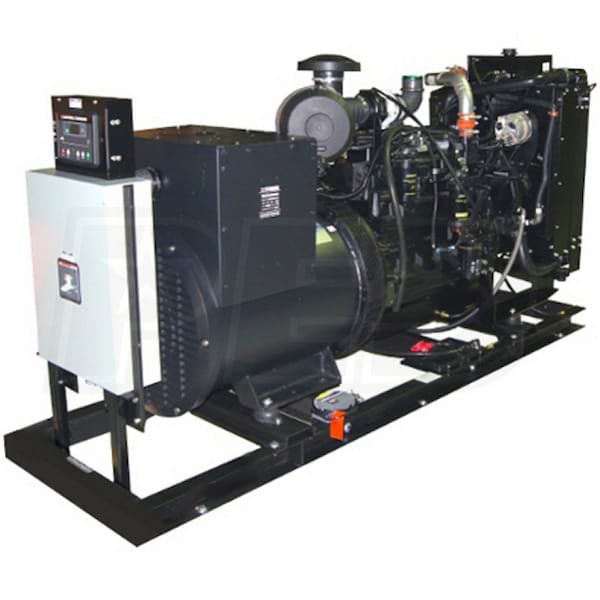

Gillette SPJD-1550 - 155kW Automatic Standby JOHN DEERE Powered Diesel Generator (120/240V Single-Phase)
Model: SPJD-1550-1-1
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Gillette SPJD-1550 - 155kW Standby Diesel Generator
- For residential applications with 120/240V Single-Phase service
- Please contact us for additional voltage options
- 6.8L John Deere 6-Cylinder Liquid Cooled Diesel Engine
- Provides long life, high performance, and great fuel efficiency
- Electronic governor for precise isochronous frequency regulation
- Stamford Brushless Alternator (UL Certified)
- Circuit-breaker protection, wired to gen-set
- Self-ventilated and drip proof construction
- Automatic Voltage Regulation (1/2 %)
- Solid state, frequency compensated design
- Under-speed and Over-excitation protection
- Deep Sea 7420 Generator Controller
- Digital microprocessor w/ logic for programming in the field
- Backlit LCD display for engine/generator status and warnings
- Stop / Manual / Auto Modes and automatic engine shutdowns

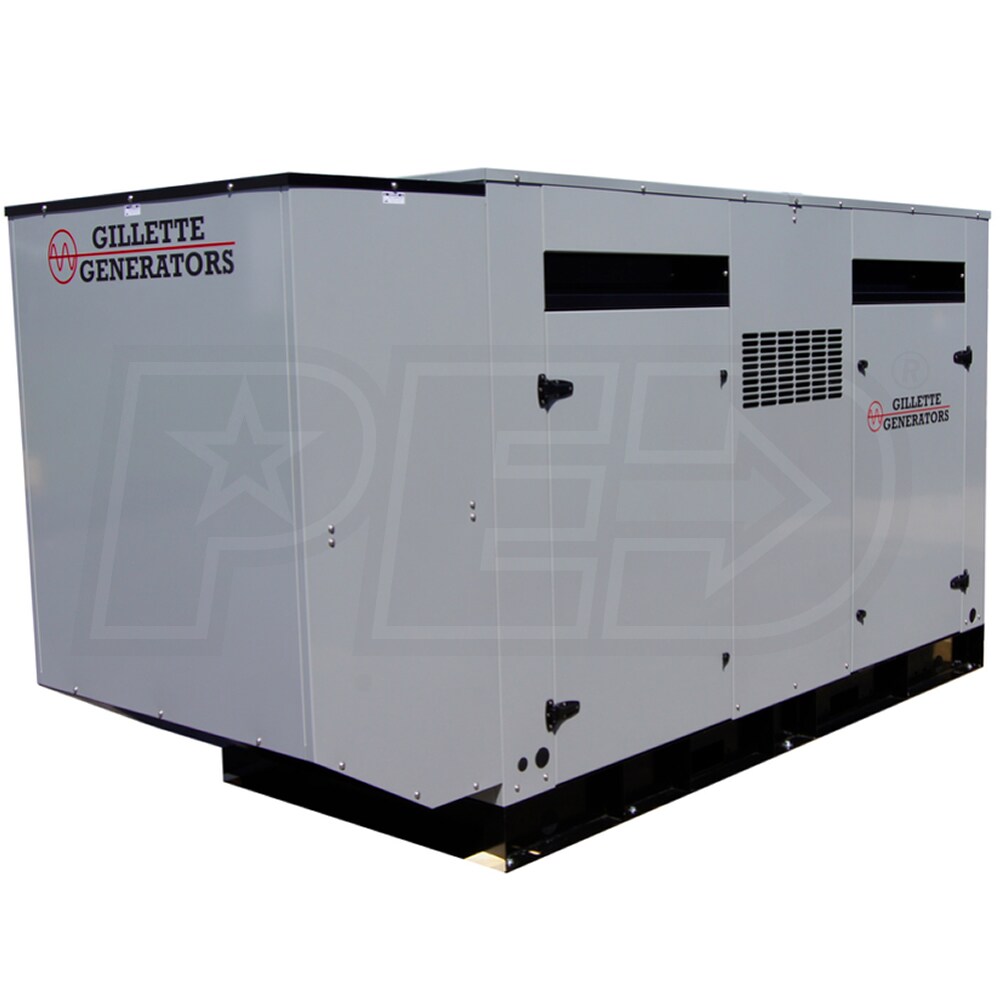

- Level 2 - Weather / Soundproof Aluminum Housing
- Enamel Powder Coat for corrosion resistance
- 18/8 Stainless Steel hardware for maximum enclosure life
- Includes Critical Grade Muffler
- Operates at only 75 dB @ 23'
- 2-Stage Battery Charger w/ Float (Battery Not Included)
- Also includes battery tray, cables and hold down straps
- PLEASE NOTE - Requires Fuel Tank (Sold Separately)
- *Not Designed For Prime Power Applications*
- 24 Month / 2000 Hour (Engine) & 24 Month / 1000 Hour (Generator) Warranty
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
155000 Watts
Fuel Type
Diesel
Rated Amps
646 Amps
Diesel Fuel Consumption @ 50% Load
6.2 gallons/hr
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75
Hour Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
John Deere
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
134 Inches
Product Width
48 Inches
Product Height
72.5 Inches
Features
Features
- Gillette SPJD-1550 - 155kW Standby Diesel Generator
- For residential applications with 120/240V Single-Phase service
- Please contact us for additional voltage options
- 6.8L John Deere 6-Cylinder Liquid Cooled Diesel Engine
- Provides long life, high performance, and great fuel efficiency
- Electronic governor for precise isochronous frequency regulation
- Stamford Brushless Alternator (UL Certified)
- Circuit-breaker protection, wired to gen-set
- Self-ventilated and drip proof construction
- Automatic Voltage Regulation (1/2 %)
- Solid state, frequency compensated design
- Under-speed and Over-excitation protection
- Deep Sea 7420 Generator Controller
- Digital microprocessor w/ logic for programming in the field
- Backlit LCD display for engine/generator status and warnings
- Stop / Manual / Auto Modes and automatic engine shutdowns
- Level 2 - Weather / Soundproof Aluminum Housing
- Enamel Powder Coat for corrosion resistance
- 18/8 Stainless Steel hardware for maximum enclosure life
- Includes Critical Grade Muffler
- Operates at only 75 dB @ 23'
- 2-Stage Battery Charger w/ Float (Battery Not Included)
- Also includes battery tray, cables and hold down straps
- PLEASE NOTE - Requires Fuel Tank (Sold Separately)
- *Not Designed For Prime Power Applications*
- 24 Month / 2000 Hour (Engine) & 24 Month / 1000 Hour (Generator) Warranty
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
155000 Watts
Fuel Type
Diesel
Rated Amps
646 Amps
Diesel Fuel Consumption @ 50% Load
6.2 gallons/hr
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75
Hour Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
John Deere
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
134 Inches
Product Width
48 Inches
Product Height
72.5 Inches
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
155000 Watts
Fuel Type
Diesel
Rated Amps
646 Amps
Diesel Fuel Consumption @ 50% Load
6.2 gallons/hr
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75
Hour Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
John Deere
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
134 Inches
Product Width
48 Inches
Product Height
72.5 Inches
