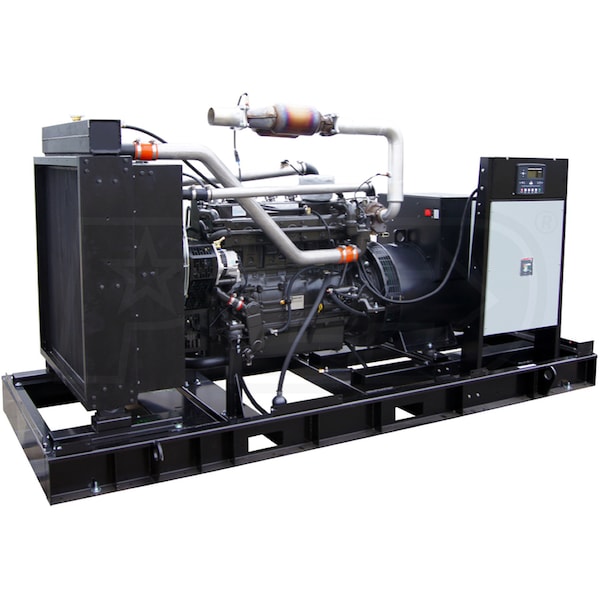

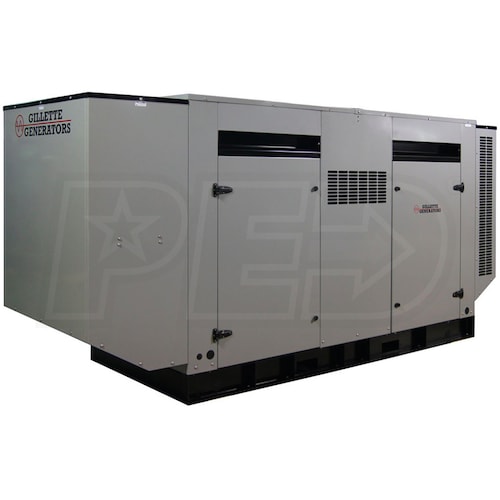

Gillette PR-1000 - 100 kW Prime Power Generator (NG - 120/240V Single-Phase)
Gillette PR-1000 - 100 kW Prime Power Generator (NG - 120/240V Single-Phase)
+
Share This Product
-
Product Description
-
Reviews
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
100,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
PSI
Grade
Professional
Style
Standby (Liquid Cooled)
Run Watts
100,000
Voltage
120/240 Single-Phase
Fuel
Natural Gas
Engine
PSI
Features
Features
- Gillette PR-1000 - 100kW Prime Power Natural Gas Generator
- For applications with 120/240V Single-Phase service
- Please contact us for additional voltage options
- 8.1L Power Solutions (PSI) 6-Cylinder Liquid Cooled Engine
- Provides long life, high performance, and great fuel efficiency
- Electronic governor for precise isochronous frequency regulation
- Stamford Brushless Alternator (UL Certified)
- Circuit-breaker protection, wired to gen-set
- Self-ventilated and drip proof construction
- Automatic Voltage Regulation (+/- 1/2 %)
- Solid state, frequency compensated design
- Under-speed and Over-excitation protection
- Deep Sea 7420 Generator Controller
- Digital microprocessor w/ logic for programming in the field
- Backlit LCD display for engine/generator status and warnings
- Stop / Manual / Auto Modes and automatic engine shutdowns
- Level 2 - Weather / Soundproof Aluminum Housing
- Enamel Powder Coat for corrosion resistance
- 18/8 Stainless Steel hardware for maximum enclosure life
- Includes Critical Grade Muffler
- Operates at only 75 dB @ 23'
- 2-Stage Battery Float Charger (Battery Not Included)
- Also includes battery tray, cables and hold down straps
- 12 Month / 2000 Hour (Engine) & 24 Month / 1000 Hour Generator Warranty
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
100000 Watts
Fuel Type
Natural Gas
NG Power Capacity
100000 Watts
NG Fuel Consumption @ 50% Load
730 ft³/hr
NG Fuel Consumption @ 100% Load
1330 ft³/hr
Rated Amps
417 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75
Hour Meter
Yes
Voltage Meter
Yes
Battery
Not Included (700 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Professional
Prime Power
Yes
Engine
Engine Brand
PSI
Starting System
12v Auto Start
CC
8100 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
6570 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
174 Inches
Product Width
52 Inches
Product Height
80 Inches
