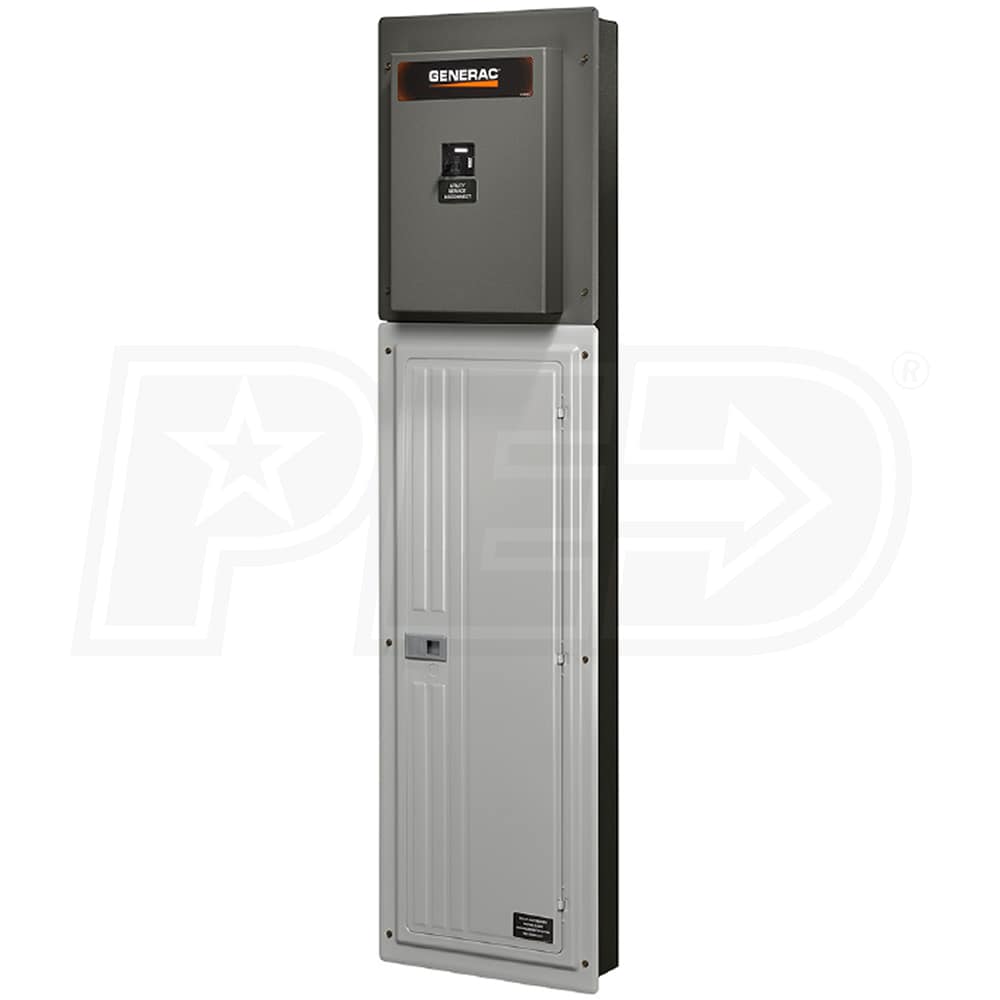

Generac 200-Amp GenReady™ Automatic Transfer Switch & Load Center w/ Power Management (Service Disconnect)
Model:
RXG42SHA1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Service Disconnect
Amp Rating
200
Circuits
42
Voltage
120/240 Single-Phase
Enclosure
NEMA 1R
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Generac 200-Amp GenReady™ Automatic Transfer Switch & Load Center
- Ideal during new construction or major electrical retrofit
- Compatible with Evolution or Nexus generator controllers
- 200-Amp Main Circuit Breaker
- Designed for single-phase operation
- 42-Space Main Load Center (Breakers Not Included)
- 60 Circuit capacity with the use of tandem breakers
- Accepts GFCI, AFCI and tandem breakers
- For use with Siemens, Murray, Square D and Eaton 1" breakers
- 200-Amp Automatic Transfer Switch
- Service-entrance rated for reduced installation costs
- Digital Power Management Technology (DPM)
- Allows your generator to work smarter, not harder
- Manage Up To (4) Individual HVAC Loads - No Hardware Req.
- Great for homes with multiple Air conditioners (24 VAC controlled)
- Up To (8) Smart Management Modules (SMM) (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- NEMA 1 Indoor Rated Enclosure
- Flush-mount design with electrostatically applied & baked powder coat paint
- Installation Flexibility
- Multiple GenReady™ panels can be supported with a single generator
- Allows for the generator to be installed at a later time
- Tech Spec Summary: Only For Use w/ Generac Generators
- UL67 & UL1008
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RXG42SHA1
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
64 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
59.09 Inches
Product Depth
7.13 Inches
Product Width
14.36 Inches
UPC
696471069860
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Transfer Switch Amperage
200-Amps
Max Circuits
60
Enclosure
NEMA 1R
Number of Circuit Breakers
42
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
