Generac 200-Amp PWRview™ Automatic Smart Transfer Switch w/ Power Management & HEMS (Service Disconnect)

Model:

RXEMW200A3

Write a Review
Sold Out
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac 200-Amp PWRview™ Automatic Smart Transfer Switch w/ Power Management & HEMS (Service Disconnect)
Generac 200-Amp PWRview™ Automatic Smart Transfer Switch w/ Power Management & HEMS (Service Disconnect)
Model: RXEMW200A3
Sold Out
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Service Disconnect

Amp Rating

200

Load Mgmt.

Built-In

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

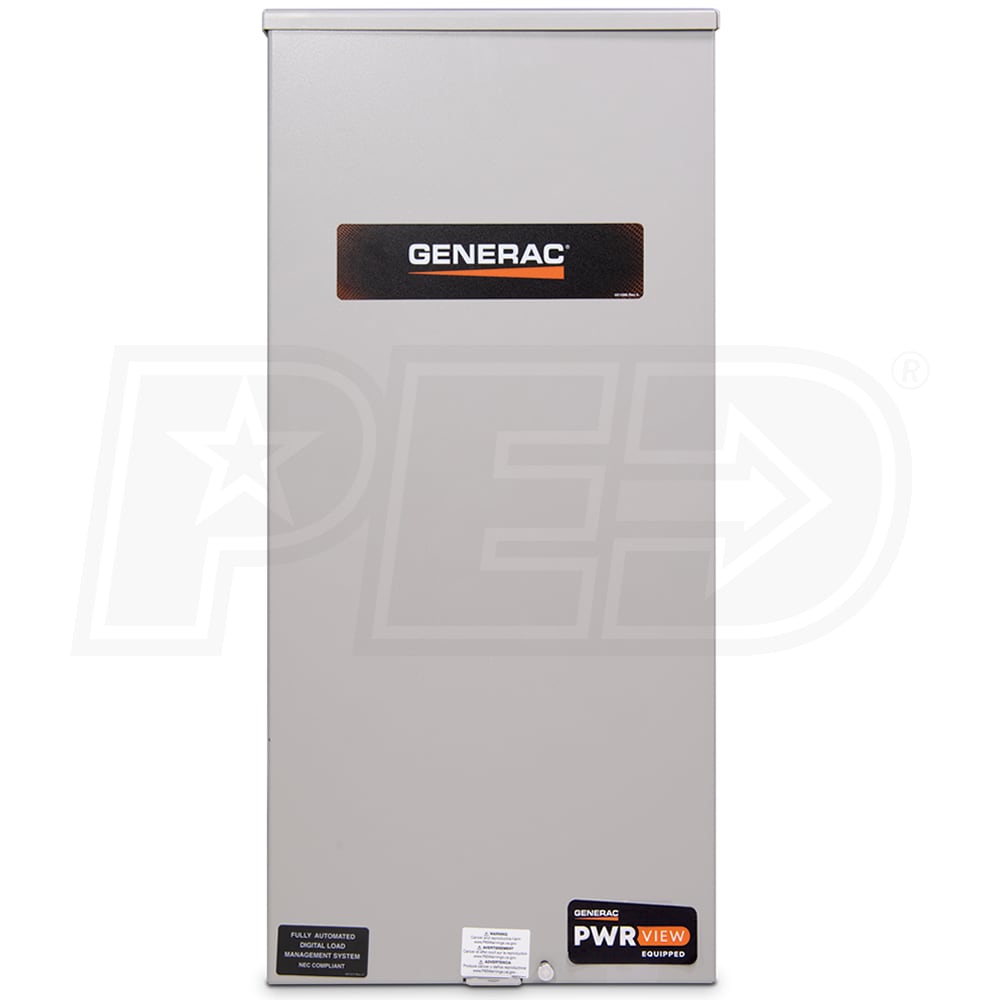

  • Generac 200-Amp PWRview™ Automatic Smart Transfer Switch
  • Compatible with Evolution or Nexus generator controllers

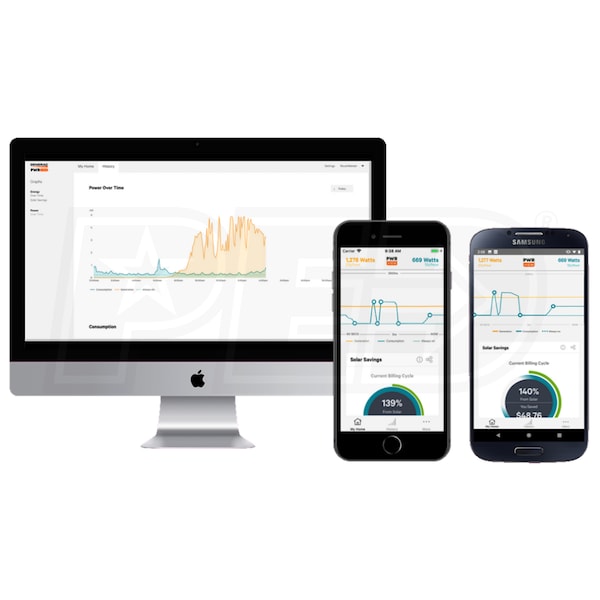

  • PWRview™ Home Energy Monitoring System
  • Provides an in-depth look at electricity usage and waste
  • Intuitive app for real-time energy usage
  • Detailed bill tracking, history and forecast
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Req.
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • Service Entrance Rated (Load Side & Line Side Disc. Breakers)
  • Installs between main meter & service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: 2/0 - #14
  • 5-Year Limited Warranty - UL Listed
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RXEMW200A3
specs product image PID-107082
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Transfer Switch Amperage
200-Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
39 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
6.3 Inches
Product Width
13.5 Inches
Product Height
30 Inches
