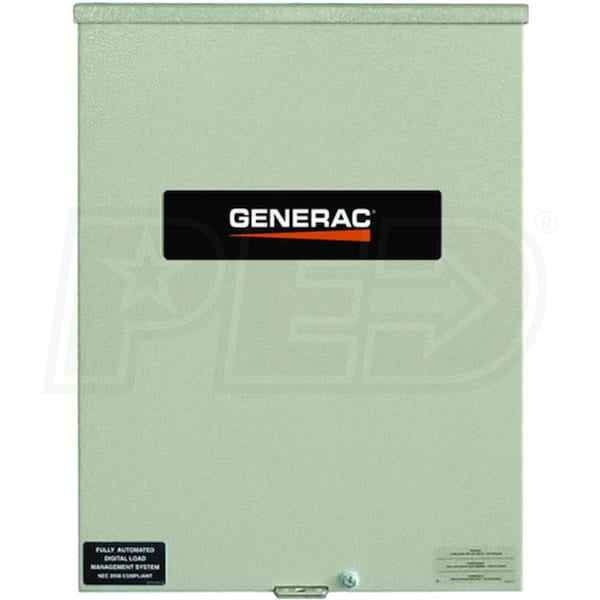

Generac 400-Amp Automatic Smart Transfer Switch w/ Power Management (Scratch & Dent)

Model:

RTSC400A3-SD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac 400-Amp Automatic Smart Transfer Switch w/ Power Management (Scratch & Dent)
Generac 400-Amp Automatic Smart Transfer Switch w/ Power Management (Scratch & Dent)
Model: RTSC400A3-SD
Was $2,019.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

400

Load Mgmt.

Compatible

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • ***Scratch & Dent Model****
  • Has Scratches / Scuffs - Missing Original Packaging
  • Shipped to another customer and returned to us, cosmetic only, will not affect operation
  • 400-Amp Automatic Transfer Switch w/ Power Management
  • For Generac Evolution™ & Generac Nexus™ Controllers
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • Digital Power Management Technology (DPM)
  • Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 3R Indoor/Outdoor Rated
  • Steel, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: #4 or 1/0 - 250 MCM
  • 5-Year Limited Warranty - UL Listed
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RTSC400A3-SD
specs product image PID-70421
Overview
Weight
133 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
36 Inches
Product Width
24 Inches
Product Height
10 Inches
UPC
696471619867
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Compatible
ATS Load Shedding
Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
