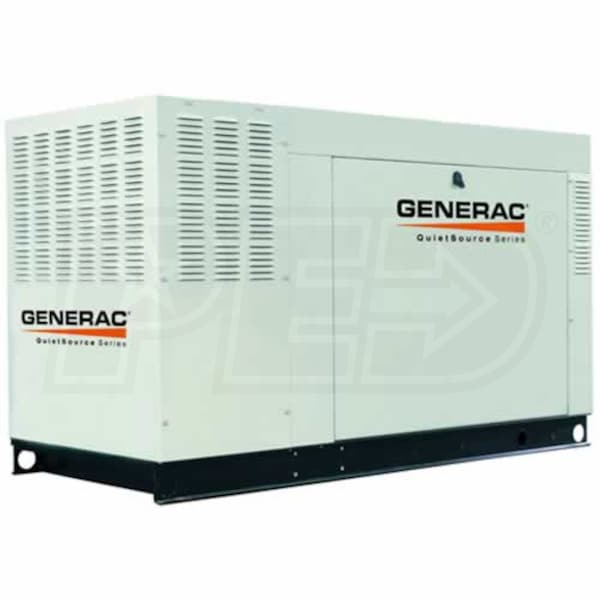

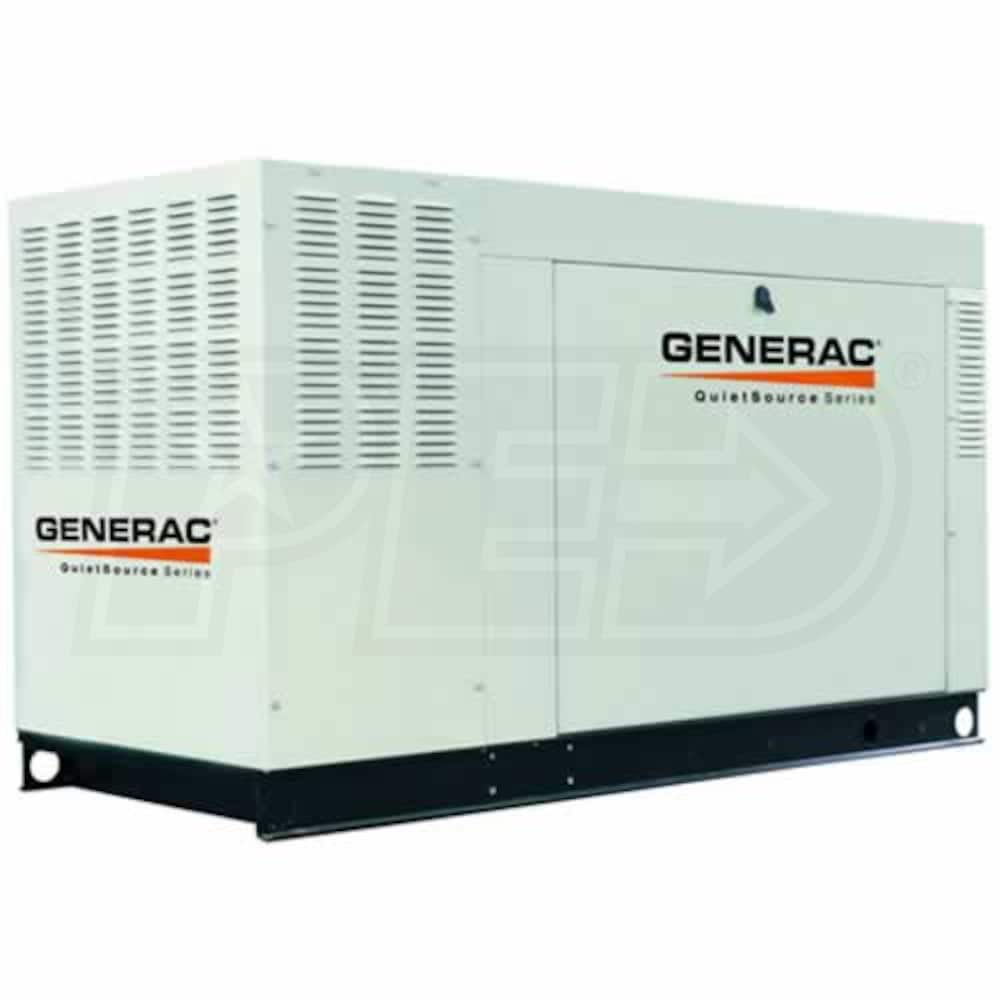

Generac QuietSource Series™ 48 kW Standby Power Generator (Premium-Grade)

Generac QuietSource Series™ 48 kW Standby Power Generator (Premium-Grade)
Model: QT04854ANAX
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, California, Hawaii, Massachusetts or any destination outside of the United States
Share
  • Product Description
  • 5
    Reviews
  • 6
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
48,000
Rated Watts
Surge Watts
48,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
48,000
Surge Watts
48,000 Starting Watts
Fuel
LP/Natural Gas
Engine
Generac 5.4L V-8


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Premium-Grade Standby Generator
  • High-quality, liquid-cooled standby generator
  • Designed for luxury homes and commercial buildings
  • Whisper-Test™
  • Low-speed exercise mode for quieter weekly tests
  • Exercises at a quiet 63 decibels at 23 feet
  • Sound level comparable to an idling car
  • Automotive-Style Engine
  • Powerful Generac V8 engine
  • Operates at half the speed of other engines (1800 vs. 3600 RPM)
  • Runs at a quiet 68 decibels at 23 feet under load
  • Aluminum Enclosure
  • Corrosion-resistant material ideal for salty air conditions
  • Sound attenuated acoustically designed enclosure
  • Tri-Lingual Digital Nexus™ Controller
  • Two-Line LCD Display provides service & maintenance intervals
  • Automatic Shutdown
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Transfer Switch (Sold Separately)
  • Fork Lift or Loading Dock is Required for Delivery
Specifications
Engine
Engine Brand
Generac 5.4L V-8
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
48000 Watts
Rated Watts
48000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
48000 Watts
LP Power Capacity
48000 Watts
NG Fuel Consumption @ 50% Load
392 ft³/hr
NG Fuel Consumption @ 100% Load
756 ft³/hr
LP Fuel Consumption @ 50% Load
4.14 gallons/hr
LP Fuel Consumption @ 100% Load
7.96 gallons/hr
Rated Amps
200 Amps
Decibel Rating @ 7m
63 Test (68 Run) dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Aluminum
Battery
Not Included (525 CCA)
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
1516 Pounds
Product Style
Standby Generator
Product Length
77 Inches
Product Width
34 Inches
Product Height
45 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471613308
Grade
Style
Run Watts
48,000
Rated Watts
Surge Watts
48,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
48,000
Surge Watts
48,000 Starting Watts
Fuel
LP/Natural Gas
Engine
Generac 5.4L V-8


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Premium-Grade Standby Generator
  • High-quality, liquid-cooled standby generator
  • Designed for luxury homes and commercial buildings
  • Whisper-Test™
  • Low-speed exercise mode for quieter weekly tests
  • Exercises at a quiet 63 decibels at 23 feet
  • Sound level comparable to an idling car
  • Automotive-Style Engine
  • Powerful Generac V8 engine
  • Operates at half the speed of other engines (1800 vs. 3600 RPM)
  • Runs at a quiet 68 decibels at 23 feet under load
  • Aluminum Enclosure
  • Corrosion-resistant material ideal for salty air conditions
  • Sound attenuated acoustically designed enclosure
  • Tri-Lingual Digital Nexus™ Controller
  • Two-Line LCD Display provides service & maintenance intervals
  • Automatic Shutdown
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Transfer Switch (Sold Separately)
  • Fork Lift or Loading Dock is Required for Delivery
Specifications
Engine
Engine Brand
Generac 5.4L V-8
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
48000 Watts
Rated Watts
48000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
48000 Watts
LP Power Capacity
48000 Watts
NG Fuel Consumption @ 50% Load
392 ft³/hr
NG Fuel Consumption @ 100% Load
756 ft³/hr
LP Fuel Consumption @ 50% Load
4.14 gallons/hr
LP Fuel Consumption @ 100% Load
7.96 gallons/hr
Rated Amps
200 Amps
Decibel Rating @ 7m
63 Test (68 Run) dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Aluminum
Battery
Not Included (525 CCA)
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
1516 Pounds
Product Style
Standby Generator
Product Length
77 Inches
Product Width
34 Inches
Product Height
45 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471613308
Product Specs
+
Specifications
Engine
Engine Brand
Generac 5.4L V-8
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
48000 Watts
Rated Watts
48000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
48000 Watts
LP Power Capacity
48000 Watts
NG Fuel Consumption @ 50% Load
392 ft³/hr
NG Fuel Consumption @ 100% Load
756 ft³/hr
LP Fuel Consumption @ 50% Load
4.14 gallons/hr
LP Fuel Consumption @ 100% Load
7.96 gallons/hr
Rated Amps
200 Amps
Decibel Rating @ 7m
63 Test (68 Run) dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Aluminum
Battery
Not Included (525 CCA)
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
1516 Pounds
Product Style
Standby Generator
Product Length
77 Inches
Product Width
34 Inches
Product Height
45 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471613308
Reviews
(5)
+
Generac QuietSource QT04854ANAX Reviews & Ratings
Product Q&A
(6)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
I am considering a 48kw Generac QuietSource natural gas generator for my home in Estero, Fl. What size natural gas line is required to run this model (QT04854ANAX)?
Jeff King
from Florida
March 16, 2014
Answer
Here are the fuel pipe requirements on the Generac QT04854ANAX which will also be listed within the installation guide included with the generator......

Natural Gas:

1 Inch: Cannot Use
1-1/4 Inch: Cannot Use
1-1/2 Inch: Max Distance 50 Feet
2 Inch: Max Distance 230 Feet

Liquid Propane Vapor:

1 Inch: Cannot Use
1-1/4 Inch: Max Distance 70 Feet
1-1/2 Inch: Max Distance 165 Feet
2 Inch: Max Distance 620 Feet

Add 2.5ft per any bend, tee or angle in the pipe to the overall distance.

Gas Pipe sizing is one of the most commonly made mistakes. A properly sized gas pipe is critical to the proper operation of the generator. The generator inlet size has no bearing on the proper gas pipe size.
+
Jim, If I purchased the QT04854ANAX Model. What more will I need to Purchase to make the Unit automatically come on and of during emergency use? I'm sure there are the hidden items that if you don't ask, you find out after purchasing it that you need to spend another $5,000 to $10,000 to get it up and running properly.
Royce Parfait
from Tennessee
May 11, 2013
Answer
The items required to properly connect to your electrical system would be the Automatic Transfer Switch where the size is based on either the incoming utility amperage or the amperage of the electrical panel you are powering with the generator.

Generac Transfer Switches

You will also need the 12VDC starting battery so the unit can start when power fails. We do not sell the batteries for the larger generators so you will need to purchase that locally.
+
I'm going to build a house in the spring of 2013 and I want to have a standby generator installed when the house is built. What would be the best size generator? I plan on having a geothermal heating/ac system and the house will be all electric.
Dan
from Kansas
August 06, 2012
Answer
Thank you for visiting Electric Generators Direct. In regards to your question, the generator size is determined by the starting amperage load of the equipment you are planning on powering when you lose power.

The starting amperage load will be much larger than the running load and proper calculations need to be done to properly size a unit.

We recommend having a certified electrician do your wattage calculations as every home is different.

The electrician would calculate with the following formula to properly size the generator which should be sized at 80% of its running capacity to allow enough flexibility to handle large intermittent loads and still keep voltage output at proper levels.

(Starting Amps x Volts = Watts)

Note: Geo-Thermal systems can require a tremendous amount of starting current and all calculations should be done onsite professionally.
+
How much lp gas will this unit use in 1 hour? what is the life expectancy of the generator and the v8 engine. I plan to run the unit with a startup at 6:00A.M. and shut down at 10:00 P.M.
Ed Jones
from Nevada
June 08, 2012
Answer
This model uses 4.1gal/hr when operating at half load and the full load runtime can be found in the specs available on the site under the specs link.

These units are designed for emergency backup power only and cannot be used as a primary power source.

The manufacturer does not provide a specific life span as this does depend on maintenance and care of the unit.
+
Hi Jim, I would like to bring the conduit up through the concrete pad under the generator. Where can I find the measurements for the exact place to be under the generator electrical wiring area ? Thank you
FRank
from Connecticut
April 17, 2012
Answer
The installation drawing can be found in the specification sheet listed on the generator product page under the specs link. I have also added the individual installation drawing in the same section.

Installation Drawing
+
I'm looking for 45Kw generator that I would like to install indoors and run the exhaust pipe out through the wall. Per local fire department I can install up to a 240 gal tank, but I see no mention of storage tank size (recommended or otherwise). Please advise
Alon
from California
March 14, 2012
Answer
Please note that per the generator Installation Manual:
This equipment is a liquid-cooled, engine-driven generator set. The generator is designed to supply electrical power that operates critical electrical loads during utility power failure. The unit has been factory-installed in a weather resistant, all metal enclosure and is intended for outdoor installation only.
