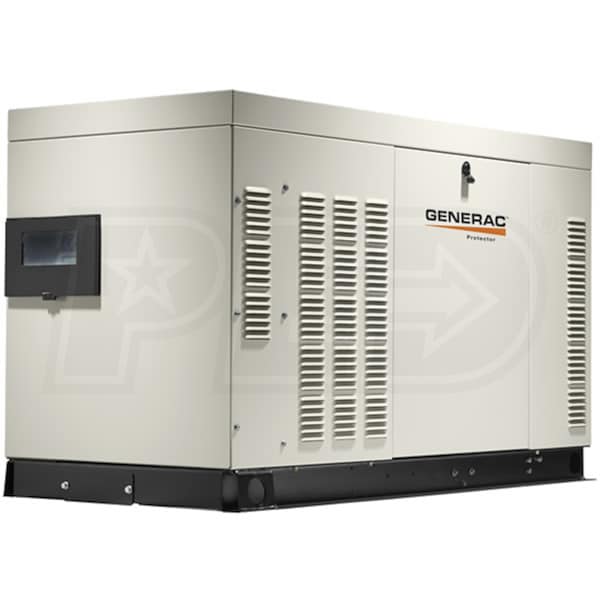

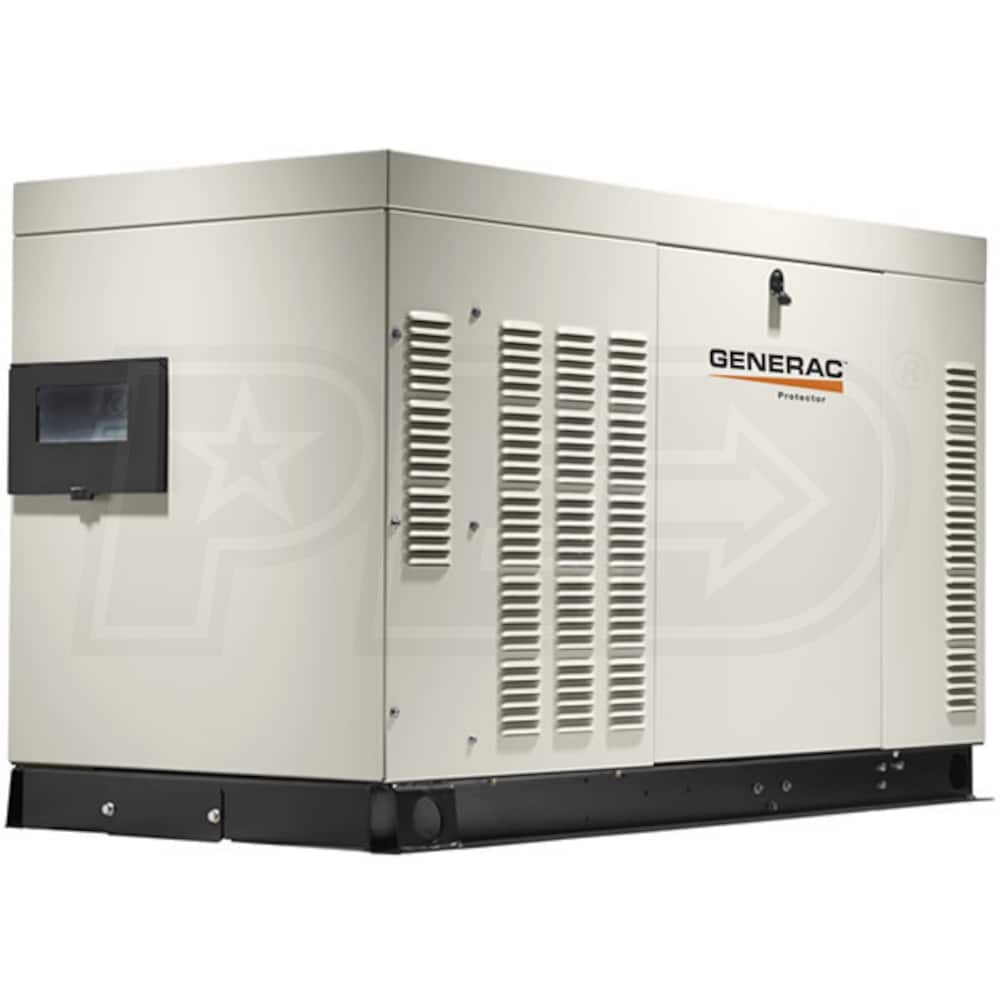

Generac Protector® Series 60kW Automatic Standby Generator (Aluminum)(277/480V 3-Phase)(NG)
Generac Protector® Series 60kW Automatic Standby Generator (Aluminum)(277/480V 3-Phase)(NG)
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
60,000
Rated Watts
Voltage
277/480 Three-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
60,000
Voltage
277/480 Three-Phase
Fuel
Natural Gas
Engine
Generac 2.4L 4-Cylinder
Features
Features
- Protector® Natural Gas Emergency Standby Generator
- For commercial buildings w/ 277/480V 3-Phase service
- WILL NOT WORK with LP fuel source
- Quiet-Test™
- Low-speed exercise mode for quieter weekly tests; 65 dB @ 23'

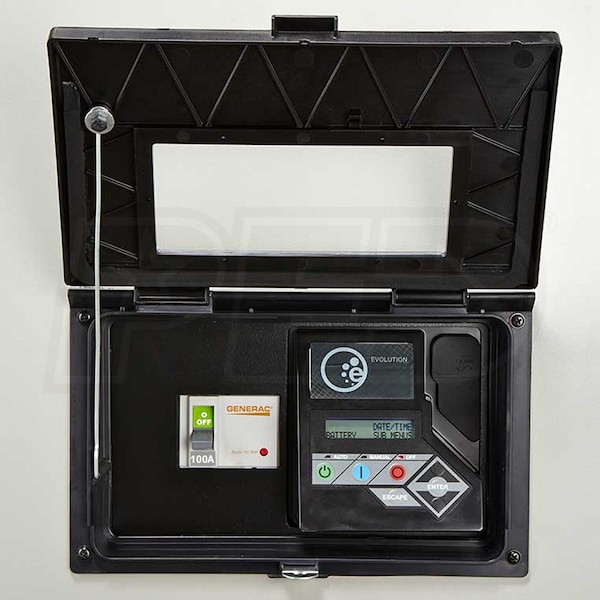

- Multi-Lingual Evolution™ Controller
- Two-Line LCD Display provides service & maintenance intervals
- Automotive-Style Engine
- Powerful Generac 2.4L 4-cylinder liquid-cooled engine
- Sound Attenuated, Acoustically Designed Aluminum Enclosure
- Corrosion-resistant material ideal for salty air conditions
- Lockable, external viewing window for quick status check
- Automatic Shutdown Safety Feature
- High coolant temp, low coolant, low oil pressure and overspeed
- Mobile Link Compatible (Sold Separately)
- Easily check generator status via computer, tablet or smartphone
- Transfer Switch (Sold Separately)
- Customize your system based on your actual application
- UL 2200 Listed For Safety & Certified Power Ratings
- 5-Year Limited Warranty + 24/7-365 Customer Support
- Have your questions answered when it's convenient for you
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Watts
60000 Watts
Fuel Type
Natural Gas
NG Power Capacity
60000 Watts
NG Fuel Consumption @ 50% Load
483 ft³/hr
NG Fuel Consumption @ 100% Load
862 ft³/hr
Rated Amps
90 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 Test (72 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
1230 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
76.8 Inches
Product Width
35 Inches
Product Height
46.1 Inches
UPC
696471618358
Grade
Style
Run Watts
60,000
Rated Watts
Voltage
277/480 Three-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
60,000
Voltage
277/480 Three-Phase
Fuel
Natural Gas
Engine
Generac 2.4L 4-Cylinder
Features
Features
- Protector® Natural Gas Emergency Standby Generator
- For commercial buildings w/ 277/480V 3-Phase service
- WILL NOT WORK with LP fuel source
- Quiet-Test™
- Low-speed exercise mode for quieter weekly tests; 65 dB @ 23'
- Multi-Lingual Evolution™ Controller
- Two-Line LCD Display provides service & maintenance intervals
- Automotive-Style Engine
- Powerful Generac 2.4L 4-cylinder liquid-cooled engine
- Sound Attenuated, Acoustically Designed Aluminum Enclosure
- Corrosion-resistant material ideal for salty air conditions
- Lockable, external viewing window for quick status check
- Automatic Shutdown Safety Feature
- High coolant temp, low coolant, low oil pressure and overspeed
- Mobile Link Compatible (Sold Separately)
- Easily check generator status via computer, tablet or smartphone
- Transfer Switch (Sold Separately)
- Customize your system based on your actual application
- UL 2200 Listed For Safety & Certified Power Ratings
- 5-Year Limited Warranty + 24/7-365 Customer Support
- Have your questions answered when it's convenient for you
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Watts
60000 Watts
Fuel Type
Natural Gas
NG Power Capacity
60000 Watts
NG Fuel Consumption @ 50% Load
483 ft³/hr
NG Fuel Consumption @ 100% Load
862 ft³/hr
Rated Amps
90 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 Test (72 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
1230 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
76.8 Inches
Product Width
35 Inches
Product Height
46.1 Inches
UPC
696471618358
Product Specs
+−
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Watts
60000 Watts
Fuel Type
Natural Gas
NG Power Capacity
60000 Watts
NG Fuel Consumption @ 50% Load
483 ft³/hr
NG Fuel Consumption @ 100% Load
862 ft³/hr
Rated Amps
90 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 Test (72 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
1230 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
76.8 Inches
Product Width
35 Inches
Product Height
46.1 Inches
UPC
696471618358
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Can this generator run on propane?
Michael C.
from Texas
May 21, 2018
Answer
The Generac RG06024KVAX is the propane model. Find it here. If you have any other questions about this or other products from our website, please contact us.
