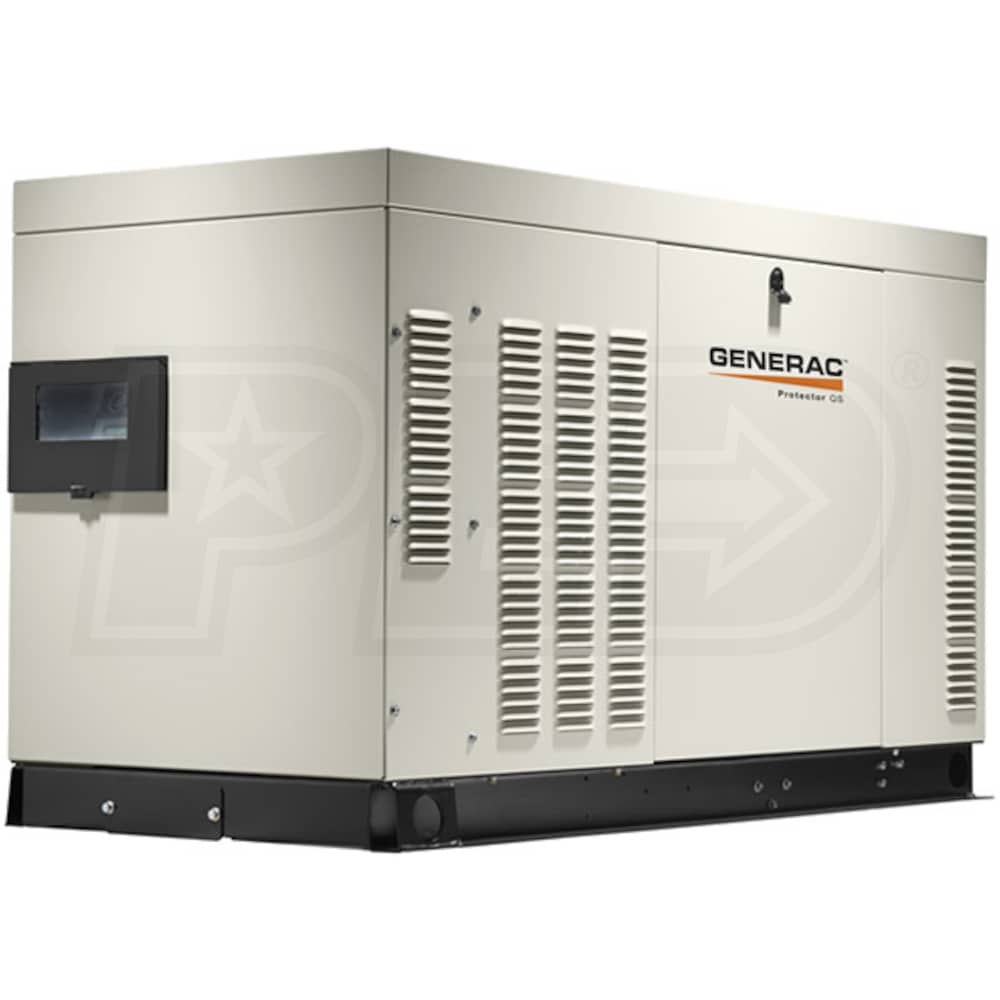

Generac Protector® QS Series 32kW Automatic Standby Generator (Premium-Grade) w/ Mobile Link™ (120/240V Single-Phase)

Model:

RG03224ANAX

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Generac Protector® QS Series 32kW Automatic Standby Generator (Premium-Grade) w/ Mobile Link™ (120/240V Single-Phase)
Generac Protector® QS Series 32kW Automatic Standby Generator (Premium-Grade) w/ Mobile Link™ (120/240V Single-Phase)
Model: RG03224ANAX
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

32,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac 2.4L 4-Cylinder

    ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • Protector® QS Series Premium-Grade Standby Generator
  • Designed for luxury homes & small commercial buildings
  • Runs off natural gas or LP fuel source
  • Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection
  • Quiet-Test™
  • Low-speed exercise mode for quieter weekly tests; 58 dB @ 23'

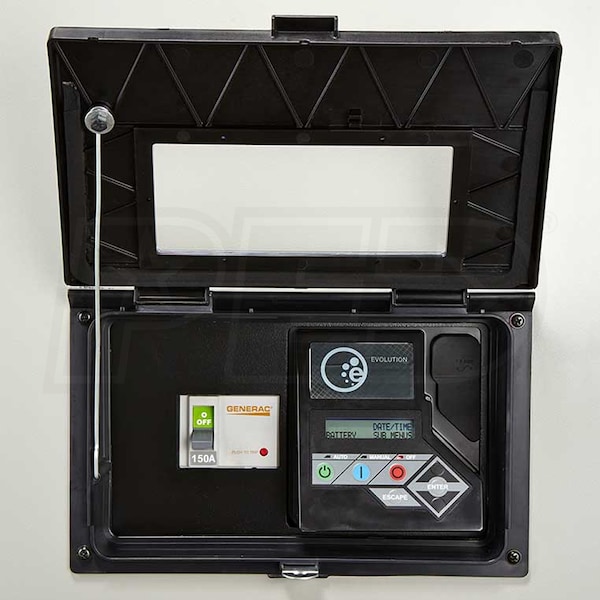

  • Multi-Lingual Evolution™ Controller
  • Two-Line LCD Display provides service & maintenance intervals
  • Automotive-Style Engine
  • Operates at half the speed of other engines (1800 vs 3600 RPM)
  • Powerful Generac in-line 4-cylinder liquid-cooled engine
  • Sound Attenuated, Acoustically Designed Aluminum Enclosure
  • Corrosion-resistant material ideal for salty air conditions
  • Lockable, external viewing window for quick status check
  • Automatic Shutdown Safety Feature
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Transfer Switch (Sold Separately)
  • Customize your system based on your actual application
  • 5-Year Limited Warranty + 24/7-365 Customer Support
  • Have your questions answered when it's convenient for you
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RG03224ANAX
specs product image PID-15963
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
1225 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
76.8 Inches
Product Width
35 Inches
Product Height
46.1 Inches
UPC
696471617870
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
32000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
32000 Watts
LP Power Capacity
32000 Watts
NG Fuel Consumption @ 50% Load
226 ft³/hr
NG Fuel Consumption @ 100% Load
375 ft³/hr
LP Fuel Consumption @ 50% Load
2.7 gallons/hr
LP Fuel Consumption @ 100% Load
4.6 gallons/hr
Rated Amps
133 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
58 Test (64 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
150 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
