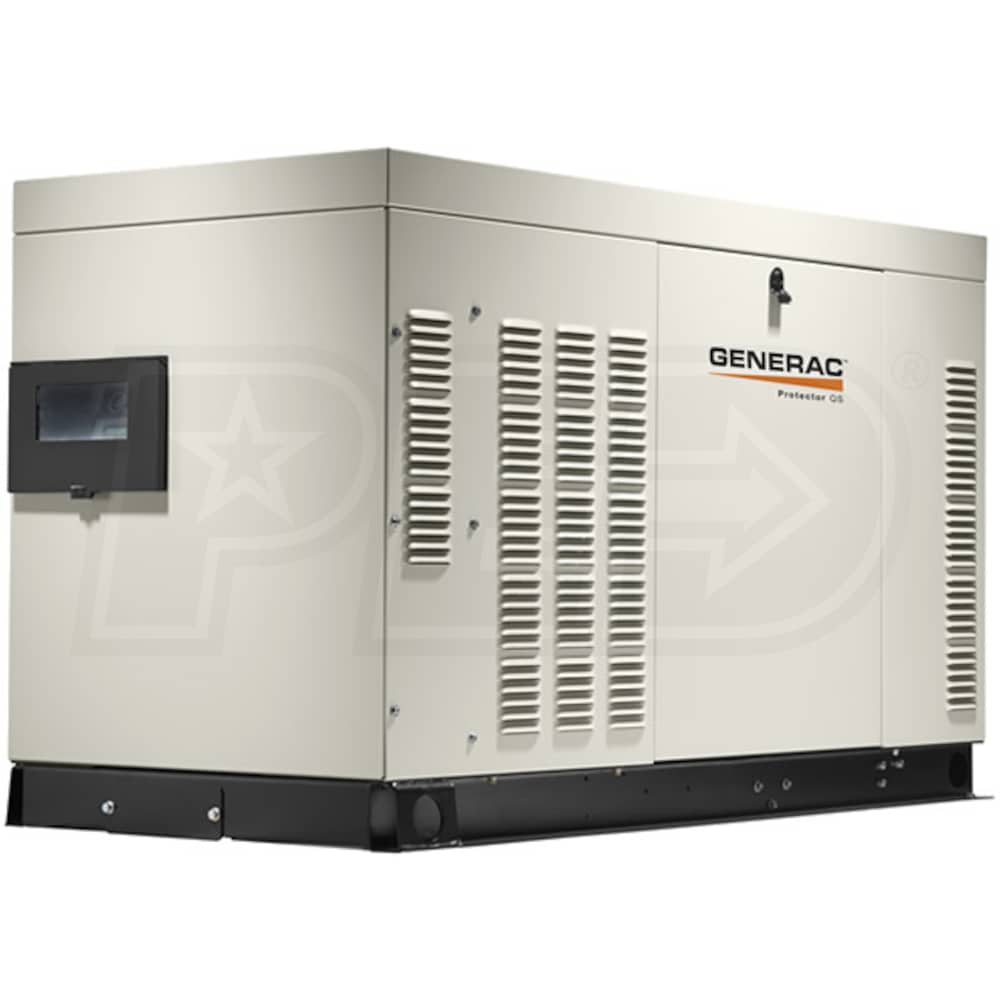

Generac Protector® QS Series 22kW Automatic Standby Generator (120/208V 3-Phase)
Model: RG02224GNAX
+
Share This Product
-
Product Description
-
3Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
22,000
Rated Watts
Voltage
120/208 Three-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
22,000
Voltage
120/208 Three-Phase
Fuel
LP/Natural Gas
Engine
Generac 2.4L 4-Cylinder
Features
Features
- Protector® QS Series Premium-Grade Standby Generator
- For small commercial buildings with 120/208V 3-Phase service
- Runs off natural gas or LP fuel supply
- Quiet-Test™
- Low-speed exercise mode for quieter weekly tests; 61 dB @ 23'

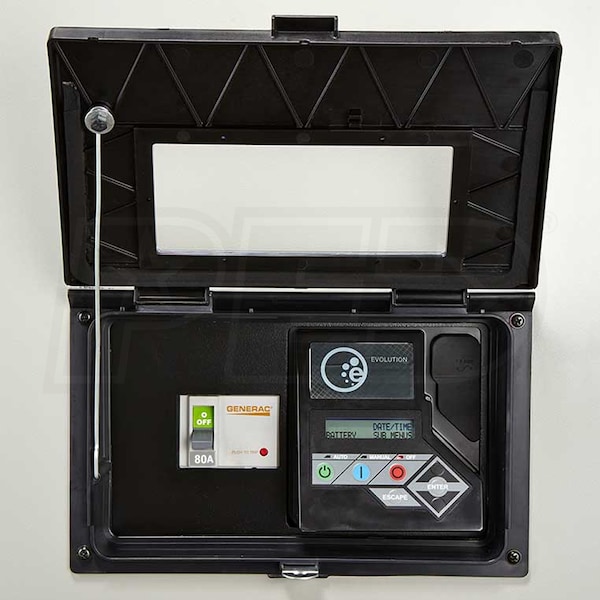

- Multi-Lingual Evolution™ Controller
- Two-Line LCD Display provides service & maintenance intervals
- Automotive-Style Engine
- Operates at half the speed of other engines (1800 vs 3600 RPM)
- Powerful Generac in-line 4-cylinder liquid-cooled engine
- Sound Attenuated, Acoustically Designed Aluminum Enclosure
- Corrosion-resistant material ideal for salty air conditions
- Lockable, external viewing window for quick status check
- Automatic Shutdown Safety Feature
- High coolant temp, low coolant, low oil pressure and overspeed
- Mobile Link Compatible (Sold Separately)
- Easily check generator status via computer, tablet or smartphone
- Transfer Switch (Sold Separately)
- Customize your system based on your actual application
- 5-Year Limited Warranty + 24/7-365 Customer Support
- Have your questions answered when it's convenient for you
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
22000 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
190 ft³/hr
NG Fuel Consumption @ 100% Load
316 ft³/hr
LP Fuel Consumption @ 50% Load
2.1 gallons/hr
LP Fuel Consumption @ 100% Load
3.4 gallons/hr
Rated Amps
76 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
61 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
80 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
905 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
62.2 Inches
Product Width
30.6 Inches
Product Height
38.6 Inches
UPC
696471616811
Grade
Style
Run Watts
22,000
Rated Watts
Voltage
120/208 Three-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
22,000
Voltage
120/208 Three-Phase
Fuel
LP/Natural Gas
Engine
Generac 2.4L 4-Cylinder
Features
Features
- Protector® QS Series Premium-Grade Standby Generator
- For small commercial buildings with 120/208V 3-Phase service
- Runs off natural gas or LP fuel supply
- Quiet-Test™
- Low-speed exercise mode for quieter weekly tests; 61 dB @ 23'
- Multi-Lingual Evolution™ Controller
- Two-Line LCD Display provides service & maintenance intervals
- Automotive-Style Engine
- Operates at half the speed of other engines (1800 vs 3600 RPM)
- Powerful Generac in-line 4-cylinder liquid-cooled engine
- Sound Attenuated, Acoustically Designed Aluminum Enclosure
- Corrosion-resistant material ideal for salty air conditions
- Lockable, external viewing window for quick status check
- Automatic Shutdown Safety Feature
- High coolant temp, low coolant, low oil pressure and overspeed
- Mobile Link Compatible (Sold Separately)
- Easily check generator status via computer, tablet or smartphone
- Transfer Switch (Sold Separately)
- Customize your system based on your actual application
- 5-Year Limited Warranty + 24/7-365 Customer Support
- Have your questions answered when it's convenient for you
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
22000 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
190 ft³/hr
NG Fuel Consumption @ 100% Load
316 ft³/hr
LP Fuel Consumption @ 50% Load
2.1 gallons/hr
LP Fuel Consumption @ 100% Load
3.4 gallons/hr
Rated Amps
76 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
61 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
80 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
905 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
62.2 Inches
Product Width
30.6 Inches
Product Height
38.6 Inches
UPC
696471616811
Product Specs
+−
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
22000 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
190 ft³/hr
NG Fuel Consumption @ 100% Load
316 ft³/hr
LP Fuel Consumption @ 50% Load
2.1 gallons/hr
LP Fuel Consumption @ 100% Load
3.4 gallons/hr
Rated Amps
76 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
61 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
80 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
905 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
62.2 Inches
Product Width
30.6 Inches
Product Height
38.6 Inches
UPC
696471616811
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Where can I listen to the 22KW liquid cooled generator in action to assess the noise level ?
David
from Pennsylvania
December 05, 2020
Answer
As much as we understand how much our customers would love to get the real experience of listening to one of the units, we do not have any suggestions for seeing it in real life. Our suggestion would be to try and locate a person who already owns the unit or trying to get a feel for the sound through videos online.
