Generac Protector QS® 22kW Automatic Standby Generator (Premium-Grade)(120/240V Single-Phase)

Generac Protector QS® 22kW Automatic Standby Generator (Premium-Grade)(120/240V Single-Phase)
Model: RG02224ANAX
$8,819.00
Only 5 In-Stock
Ships Monday, May 28th
Free Shipping &
Tax-Free (Except IL)
$50 Referral Rebate - Click Here For Printable Form

Only 5 In-Stock
Ships Monday, May 28th
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 4
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
22,000
Rated Watts
Surge Watts
22,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
22,000
Surge Watts
22,000 Starting Watts
Fuel
LP/Natural Gas
Engine
Generac 2.4L 4-Cylinder
Features
Features
  • Premium-Grade Standby Generator
  • Designed for luxury homes & small commercial buildings
  • Runs off natural gas or LP fuel supply
  • Quiet-Test
  • Low-speed exercise mode for quieter weekly tests; 61 dB @ 23'

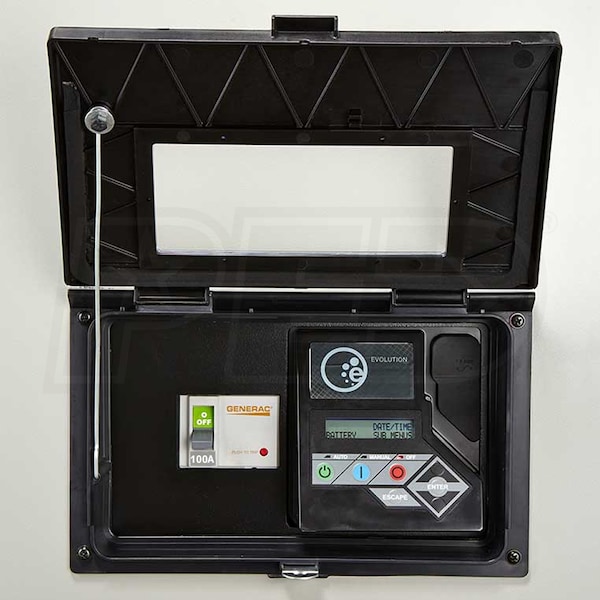

  • Multi-Lingual Evolution
  • Two-Line LCD Display provides service & maintenance intervals
  • Automotive-Style Engine
  • Operates at half the speed of other engines (1800 vs 3600 RPM)
  • Powerful Generac in-line 4-cylinder liquid-cooled engine
  • Sound Attenuated, Acoustically Designed Aluminum Enclosure
  • Corrosion-resistant material ideal for salty air conditions
  • Lockable, external viewing window for quick status check
  • Automatic Shutdown Safety Feature
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Mobile Link (Sold Separately)
  • Easily check generator status via computer, tablet or smartphone
  • Transfer Switch (Sold Separately)
  • Customize your system based on your actual application
Specifications
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
22000 Watts
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
22000 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
190 ft³/hr
NG Fuel Consumption @ 100% Load
316 ft³/hr
LP Fuel Consumption @ 50% Load
2.1 gallons/hr
LP Fuel Consumption @ 100% Load
3.4 gallons/hr
Rated Amps
92 Amps
Decibel Rating @ 7m
61 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Aluminum
Battery
Not Included (525 CCA)
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
843 Pounds
Product Style
Standby Generator
Product Length
62.2 Inches
Product Width
30.6 Inches
Product Height
38.6 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
696471616323
Grade
Style
Run Watts
22,000
Rated Watts
Surge Watts
22,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
22,000
Surge Watts
22,000 Starting Watts
Fuel
LP/Natural Gas
Engine
Generac 2.4L 4-Cylinder
Features
Features
  • Premium-Grade Standby Generator
  • Designed for luxury homes & small commercial buildings
  • Runs off natural gas or LP fuel supply
  • Quiet-Test
  • Low-speed exercise mode for quieter weekly tests; 61 dB @ 23'
  • Multi-Lingual Evolution
  • Two-Line LCD Display provides service & maintenance intervals
  • Automotive-Style Engine
  • Operates at half the speed of other engines (1800 vs 3600 RPM)
  • Powerful Generac in-line 4-cylinder liquid-cooled engine
  • Sound Attenuated, Acoustically Designed Aluminum Enclosure
  • Corrosion-resistant material ideal for salty air conditions
  • Lockable, external viewing window for quick status check
  • Automatic Shutdown Safety Feature
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Mobile Link (Sold Separately)
  • Easily check generator status via computer, tablet or smartphone
  • Transfer Switch (Sold Separately)
  • Customize your system based on your actual application
Specifications
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
22000 Watts
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
22000 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
190 ft³/hr
NG Fuel Consumption @ 100% Load
316 ft³/hr
LP Fuel Consumption @ 50% Load
2.1 gallons/hr
LP Fuel Consumption @ 100% Load
3.4 gallons/hr
Rated Amps
92 Amps
Decibel Rating @ 7m
61 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Aluminum
Battery
Not Included (525 CCA)
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
843 Pounds
Product Style
Standby Generator
Product Length
62.2 Inches
Product Width
30.6 Inches
Product Height
38.6 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
696471616323
Product Specs
+
Specifications
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
22000 Watts
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
22000 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
190 ft³/hr
NG Fuel Consumption @ 100% Load
316 ft³/hr
LP Fuel Consumption @ 50% Load
2.1 gallons/hr
LP Fuel Consumption @ 100% Load
3.4 gallons/hr
Rated Amps
92 Amps
Decibel Rating @ 7m
61 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Aluminum
Battery
Not Included (525 CCA)
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
843 Pounds
Product Style
Standby Generator
Product Length
62.2 Inches
Product Width
30.6 Inches
Product Height
38.6 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
696471616323
Reviews
(4)
+
Generac Protector RG02224ANAX Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Mike, the Generator Expert
icon-social-fb1
+
I have 200 amp service with a heat pump and all other appliances are electric. Will I be able to have my whole house work with this model?
Vincent Generoso
from South Carolina
June 30, 2016
Answer
Thank you for visiting Electric Generators Direct.

In regards to your question, proper sizing of the generator is crucial to the success of any installation and requires a good working knowledge of electricity and its characteristics, as well as the varying requirements of the electrical equipment comprising the load. When analyzing the electrical load, consult the manufacturer’s nameplate on each major appliance or piece of equipment to determine its starting amperage.

The following formula can help determine the starting wattage. (Starting Amps x Volts = Watts) When choosing the generator output select a rating that is approximately 20 to 25% higher than the peak load (for example, if the load is about 8 kilowatts, select a 10 kW generator).

A higher rated generator will operate comfortably at approximately 80% of its full capacity and will provide a margin of flexibility if the load increases in the future.

certified electrician should be consulted for proper sizing and installation of any generator.

I have attached the Generac estimated sizing calculator to help you get started.
Generator Sizing Calculator

If you have any further questions please let us know.
