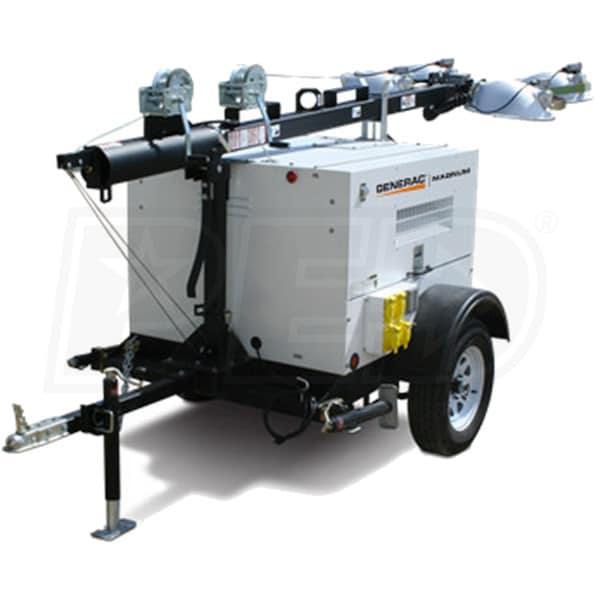

Generac MLT4200IF4-STD - 20kW Towable Diesel Horizontal Mast Light Tower w/ Isuzu Engine & Manual Winch

Close
Generac Electric Generators and Accessories
Model: MLT4200IF4-STD
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
This Item Is Built To Order

Factory items ship direct from the manufacturer. Shipping times vary.
$23,899.00

  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping
Grade
Style
Run Watts
20,000
Rated Watts
Voltage
120/240 Single-Phase
Engine
Isuzu
MLT4200IF4-STD - 20kW Horizontal Mast Light Tower (Isuzu« / Manual Winch)
Designed & engineered for optimum performance, reliability and longevity

4 x 1000-Watt Metal Halide Lamps
Provides light coverage for up to 7 acres; Individual On/Off switches
Oval aluminum reflectors w/ tempered glass lens & silicone gaskets
Friction disc mounting for tool less positioning

30-Foot, 3-Section Horizontal Mast w/ Manual Winch
Dual-Winch system located at ergonomic height; Simple, single person operation
359░ Ground-Level mast/fixture rotation w/ locking system

2.2L Isuzu« Liquid Cooled Diesel Engine (EPA Tier 4 Final)
Fuel efficient design runs at 1800 RPM for extended engine life

50-Gallon Polyethylene Internal Fuel Tank
Provides up to 23.5 hours of run time with all 4-lights On

120/240V - 167/83A Marathon Electric Brushless Alternator
Robust design provides up to 20 kW of standby output

(2) 240V 30A (L6-30R) & (2) 240V 50A (Non-Nema 6369) Twistlock Outlets
Individually breakered for added safety during operation

(2) 120V 20A GFCI Duplex Outlets
Provides the convenience of powering 120V equipment

14-Gauge Steel Enclosure - 68 dB(A) @ 23'
Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
Multi-lingual operating/safety decals; Manual holder w/ operating manual

Tubular Steel Trailer w/ 48" Removable Tongue
(4) 2000 lb. Adjustable leveling jacks; Transport/lock in horizontal storage position
Front step platform for easy adjustment of light fixtures

DOT Approved Tail, Side, Brake and Directional Lights
3000 lb. Leaf spring axle; Single wall polyethylene fenders
15" P205/75R15 - 6 ply wheel/tire; 58" Axle Span
2" Ball hitch & safety chains w/ spring loaded safety hooks

Includes Starting Battery

CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER

1-Year / Unlimited, 2-Year/ 2,000 Hour Limited Warranty
Engine
Engine Brand
Isuzu
Starting System
12-Volt Button Start
HP
40.2 HP
CC
2200 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
20000 Watts
Rated Amps
167/83 @ 240 Volts (Single Phase) Amps
Tank Size
50 Gallons
Fuel Tank Material
Plastic
Decibel Rating @ 7m
68
Idle Control
No
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
2
CS6369 - 50-Amp Twistlock
2
Overview
Certification
EPA Tier 4
Made in USA
Yes
Weight
2315 Pounds
Product Length
115 Inches
Product Width
68 Inches
Product Height
70 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Model
MLT4200IF4-STD
