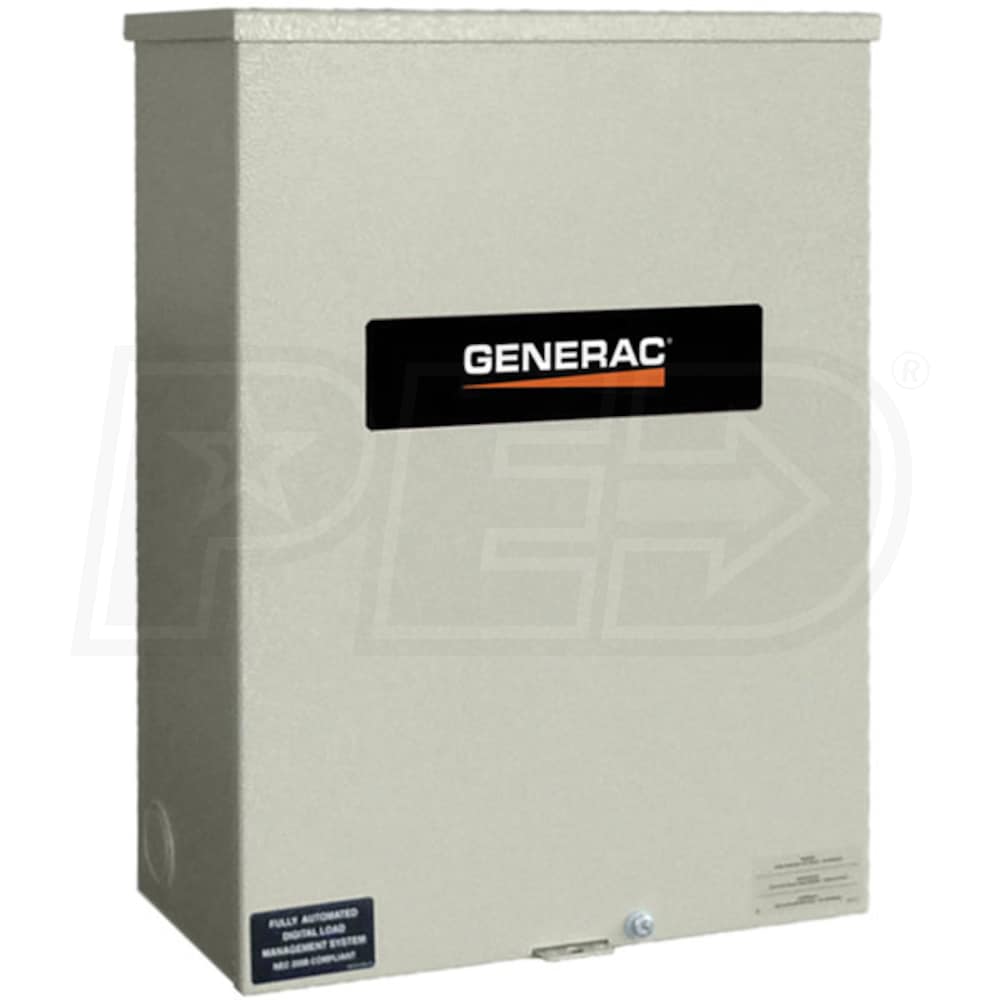

Generac Guardian RTSR100A3
Generac Guardian RTSR100A3
Hover to zoom
1 Of 5



Product Discontinued Product Discontinued
Generac Smart Switch - 100-Amp Automatic Transfer Switch + AC Shedding
Generac Smart Switch - 100-Amp Automatic Transfer Switch + AC Shedding
Model: RTSR100A3
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

Load Mgmt.

Voltage

Enclosure

  • 100-Amp Generac Smart Automatic Transfer Switch
  • For Generac Evolution™ & Generac Nexus™ & R200 Controllers
  • Leverages digital power management (PMM) technology
  • Ability to manage 2 A/C units with no additional hardware
  • Intelligently Manage 4 More Loads w/ Additional PMM Kit/Modules
  • PMM Starter Kit (6199) & PMM Module (6186) (Both Sold Separately)
  • NEMA 3R Indoor/Outdoor Rated
  • Steel, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder paint
  • Standard Installation
  • Requires a sub-panel for overload protection
  • Tech Spec Summary:
  • Load transition type: Open Transition
  • Withstand rating: 10,000 Amps
  • Lug range: 2/0 - #14
  • For Use With Generac Generators Only
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RTSR100A3
specs product image PID-10679
Overview
Weight
20 Pounds
Consumer Warranty
5 Years
Product Length
20 Inches
Product Width
15 Inches
Product Height
8 Inches
Product Specs
Frequency
60 Hertz
Rated Watts
24000 Watts
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
