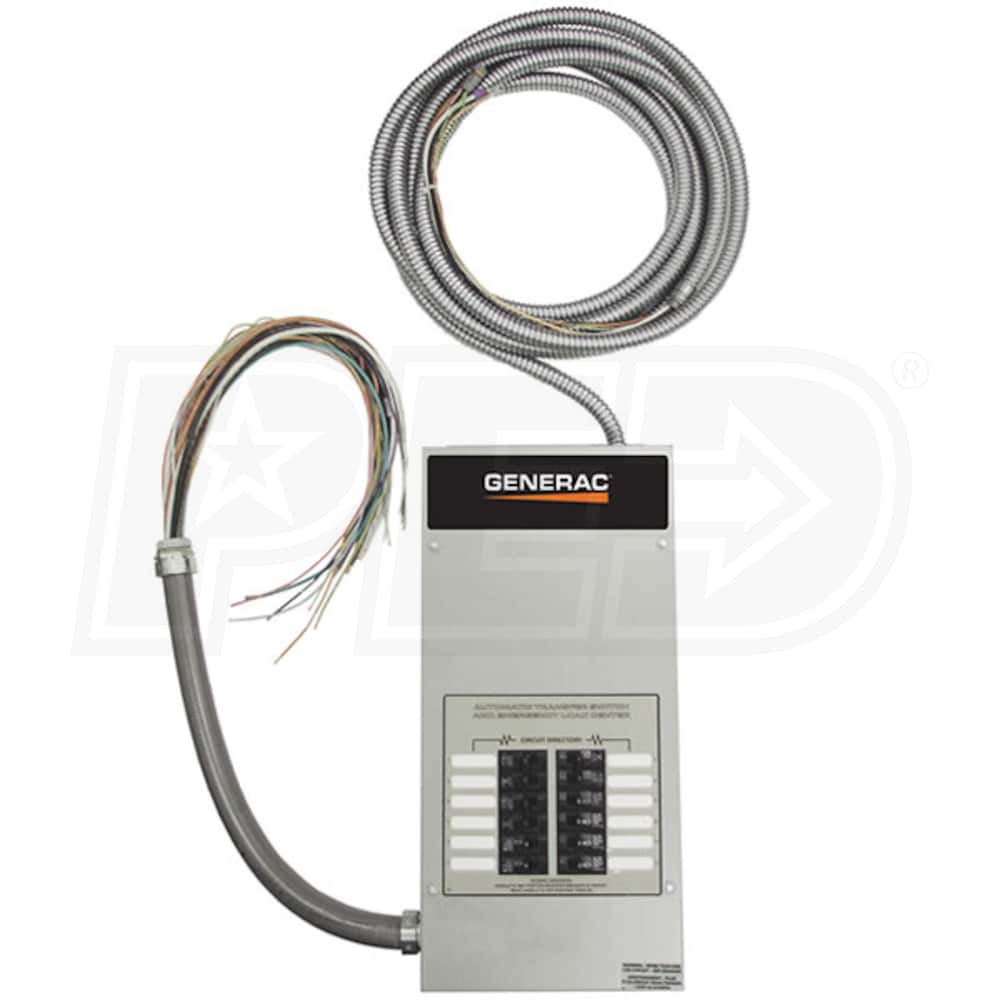

Generac 50-Amp Indoor Automatic Transfer Switch w/ 12-Circuit Load Center

Generac 50-Amp Indoor Automatic Transfer Switch w/ 12-Circuit Load Center
Model: RTG12EZA1
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sales Tax Extra $411.00Visit Site
No Sales Tax* (Except CA,GA)$411.00Visit Site
Sales Tax Extra $449.99Visit Site
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • 4
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Load Center
Amp Rating
50
Circuits
Enclosure
Features
Features
  • 50-A Indoor Automatic Transfer Switch w/ 12-Circuit Load Center
  • Perfect for backing up emergency circuits
  • Steel NEMA-1 Indoor Enclosure
  • Electrostatically applied and baked powder paint
  • Breakers:
  • 5 x 15A (120V) 1-Pole
  • 3 x 20A (120V) 1-Pole
  • 1 x 30A (240V) 2-Pole
  • 1 x 30A (240V) 2-Pole
  • Includes:
  • Pre-wired external connection box
  • 30' Pre-Wired Conduit From Transfer Switch To Generator
  • 2' Pre-Wired Conduit From Transfer Switch To Main Panel
  • Max Generator Size 17kW
  • For Use With Generac Generators Only
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Transfer Switch Style
Pre-Wired (12-Circuit)
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
50 Amps
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
5
20A 120V
3
30A 240V
1
40A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Weight
30 Pounds
Product Length
22.4 Inches
Product Width
15.4 Inches
Product Height
3.8 Inches
Consumer Warranty
5 Years
UPC
696471614350
Type
Load Center
Amp Rating
50
Circuits
Enclosure
Features
Features
  • 50-A Indoor Automatic Transfer Switch w/ 12-Circuit Load Center
  • Perfect for backing up emergency circuits
  • Steel NEMA-1 Indoor Enclosure
  • Electrostatically applied and baked powder paint
  • Breakers:
  • 5 x 15A (120V) 1-Pole
  • 3 x 20A (120V) 1-Pole
  • 1 x 30A (240V) 2-Pole
  • 1 x 30A (240V) 2-Pole
  • Includes:
  • Pre-wired external connection box
  • 30' Pre-Wired Conduit From Transfer Switch To Generator
  • 2' Pre-Wired Conduit From Transfer Switch To Main Panel
  • Max Generator Size 17kW
  • For Use With Generac Generators Only
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Transfer Switch Style
Pre-Wired (12-Circuit)
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
50 Amps
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
5
20A 120V
3
30A 240V
1
40A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Weight
30 Pounds
Product Length
22.4 Inches
Product Width
15.4 Inches
Product Height
3.8 Inches
Consumer Warranty
5 Years
UPC
696471614350
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Transfer Switch Style
Pre-Wired (12-Circuit)
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
50 Amps
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
5
20A 120V
3
30A 240V
1
40A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Weight
30 Pounds
Product Length
22.4 Inches
Product Width
15.4 Inches
Product Height
3.8 Inches
Consumer Warranty
5 Years
UPC
696471614350
