Generac Synergy™ 20kW Variable Speed Standby Generator (200A Service Disc.+ Power Mgmt.) + 3" GenPad™ + Battery

Generac Synergy™ 20kW Variable Speed Standby Generator (200A Service Disc.+ Power Mgmt.) + 3" GenPad™ + Battery
Model: EGD-7040KIT
Add to Cart for Price
In-Stock
Ships Tuesday, Jul 17th
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons

In-Stock Free ShippingNo Sales Tax* (Except IL)Buy Now
No Sales Tax* (Except IL)$5,496.98Visit Site
In-Stock
Ships Tuesday, Jul 17th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 4
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
20,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
20,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Features
Features
  • 20kW (LPG) / 18kW (NG) Generac Synergy
  • 12" Flexible fuel line and Direct-To-Dirt composite mounting pad
  • Built-in Battery Charger (Battery Sold Separately)
  • Quiet, tests at only 57 dB(A) & runs at 63 dB(A) @ 23 feet
  • 5-Year Limited Warranty
  • Plus 24/7•365 Customer Support so you have your questions answered when its convenient for you
  • Generac's G-Force Engine
  • Varies engine RPMs based on demand; unlike traditional standbys
  • Automatic Voltage Regulator (AVR) - Less Than 1.5% THD
  • Monitors demand & adjusts engine speed; Save $ & use less fuel
  • Ensures 60 Hz output, even at lower speeds for very clean power
  • 200-Amp Generac Synergy Automatic Transfer Switch
  • DPM technology allows for the smart control of 2 air conditioners
  • Intelligently manage 4 more loads w/ add. PMM Kit/Mods. (Sold Separately)
  • Service Entrance Rated w/ NEMA 3R Aluminum Enclosure
  • Mounts between meter & main service panel; Load & Line breakers
  • Evolution™ Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser lets you set how often & what time generator will self-test
  • Tough, Durable All-Aluminum Sound Attenuated Enclosure
  • RhinoCoat powder-coated finish keeps enclosure protected from the elements
  • Generac OHVI Air-Cooled Engine
  • Full pressure lubrication system w/ 2 year oil change interval
  • Optimized muffler and resonator for dramatically quieter operation
  • Installation Flexibility*
  • Can be installed within 18" of a building; *Always check local building codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Additional Features:
  • Product Includes

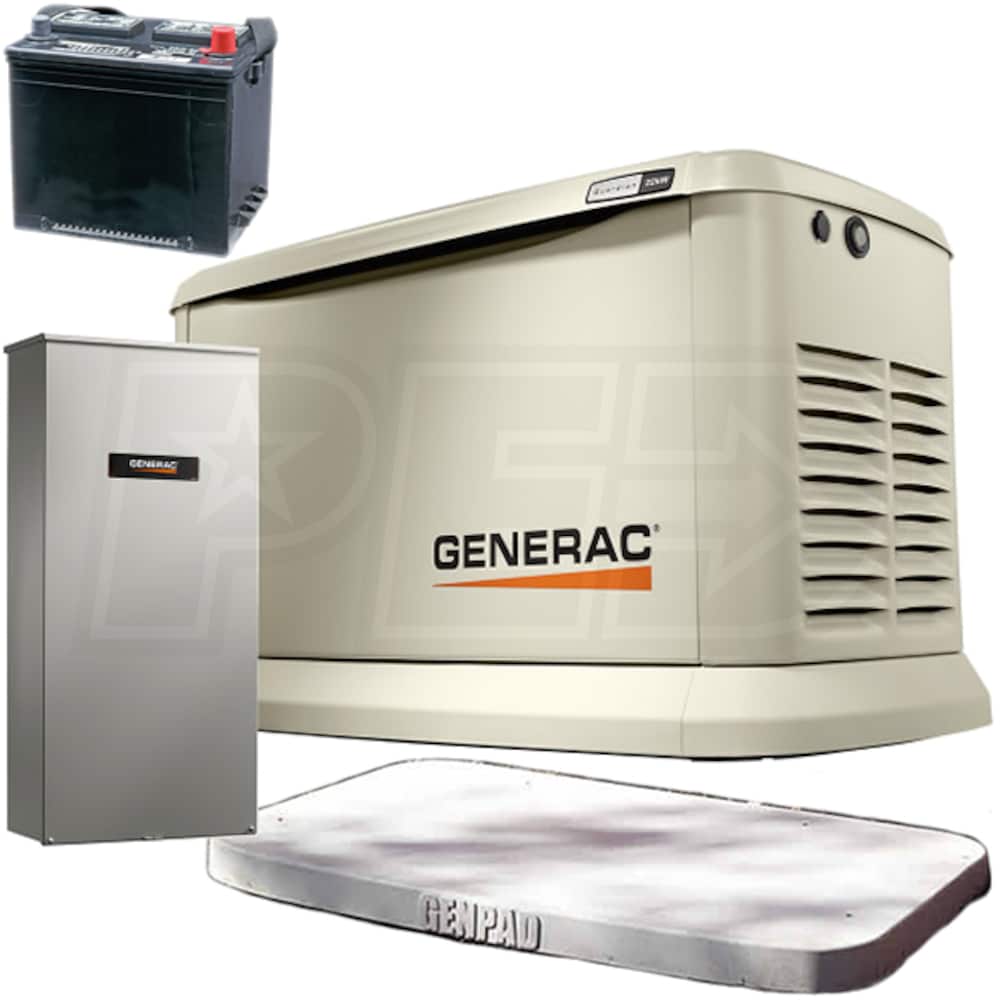

    • (1) Generac Synergy™ 20kW Variable Speed Standby Generator (200A Service Disc.+ Power Mgmt.) (7040)

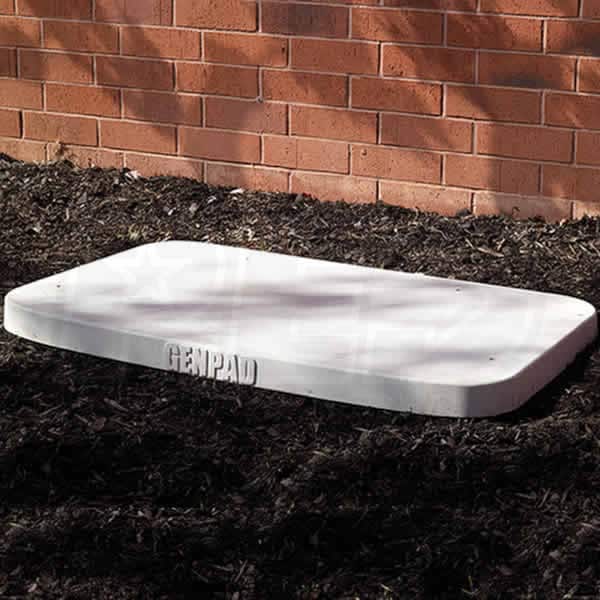

    • (1) GenPad™ Standard 3" Composite Cement Pad for Generac 9kW-22kW (2016+) (10000007852)

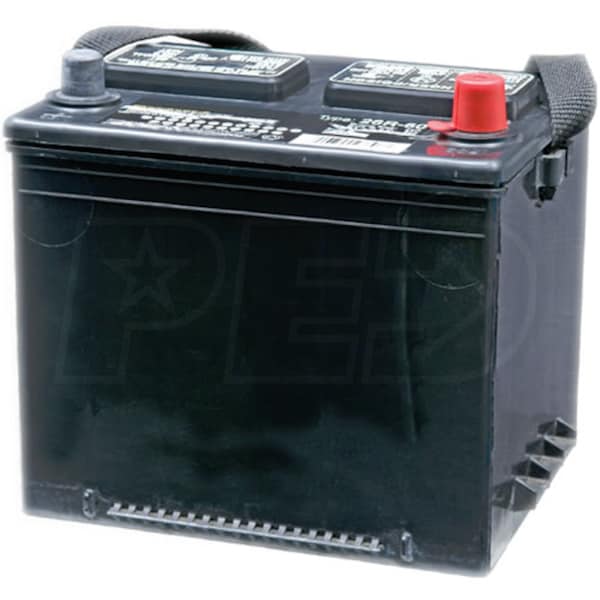

    • (1) UN2794, Battery, Wet, Filled with Acid,8 PGIII Emergency 800-424-9300 (5819)
Specifications
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
200 ft³/hr
NG Fuel Consumption @ 100% Load
282 ft³/hr
LP Fuel Consumption @ 50% Load
1.84 gallons/hr
LP Fuel Consumption @ 100% Load
3.5 gallons/hr
Rated Amps
83.3 Amps
Decibel Rating @ 7m
63 Run dbA
Idle Control
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Aluminum
Battery
Included
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
471 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
7040 Specifications
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
200 ft³/hr
NG Fuel Consumption @ 100% Load
282 ft³/hr
LP Fuel Consumption @ 50% Load
1.84 gallons/hr
LP Fuel Consumption @ 100% Load
3.5 gallons/hr
Rated Amps
83.3 Amps
Decibel Rating @ 7m
63 Run dbA
Idle Control
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Aluminum
Battery
Not Included (540 CCA)
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
471 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
10000007852 Specifications
Product Specs
Frequency
60 Hertz
Overview
Weight
189 Pounds
Product Length
54 Inches
Product Width
31 Inches
Product Height
3 Inches
5819 Specifications
Product Specs
Frequency
60 Hertz
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
