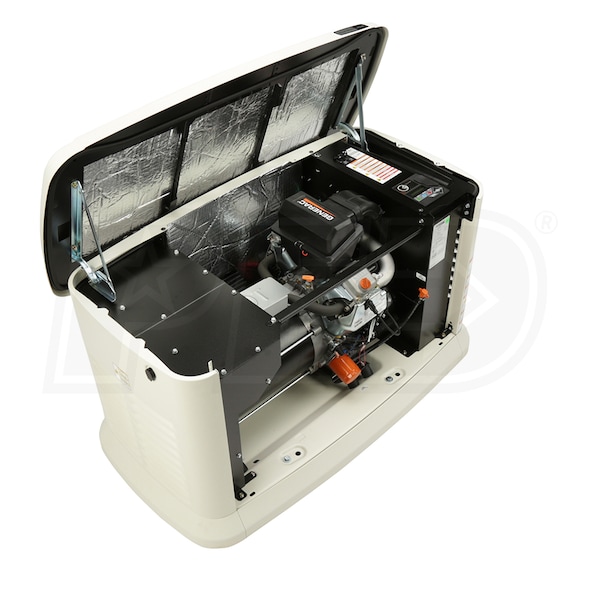

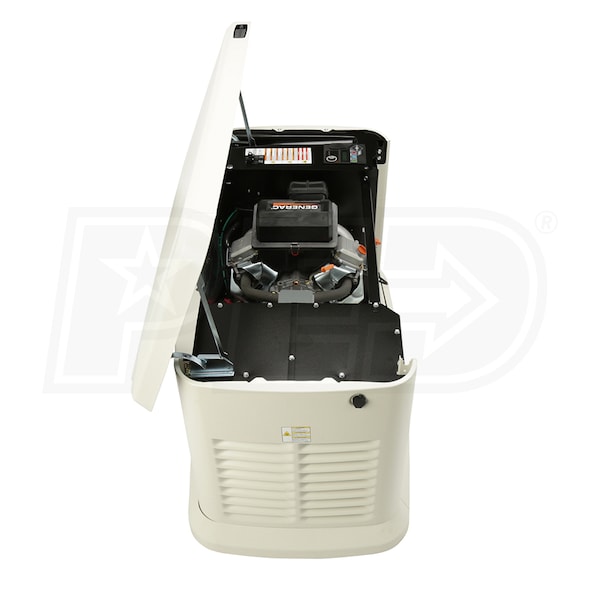

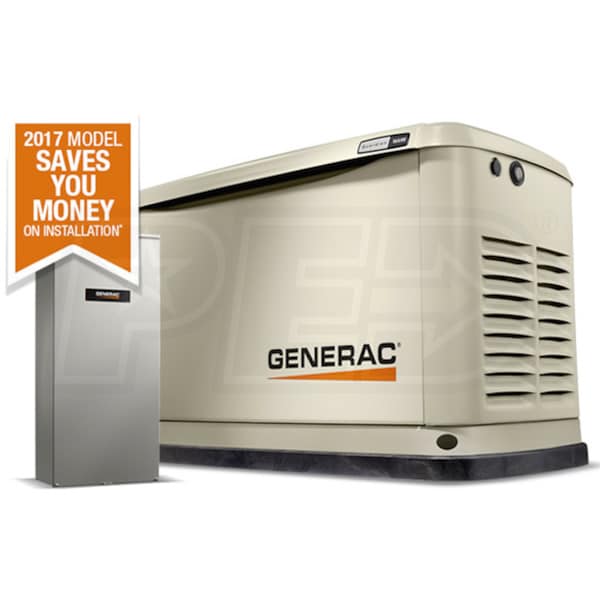

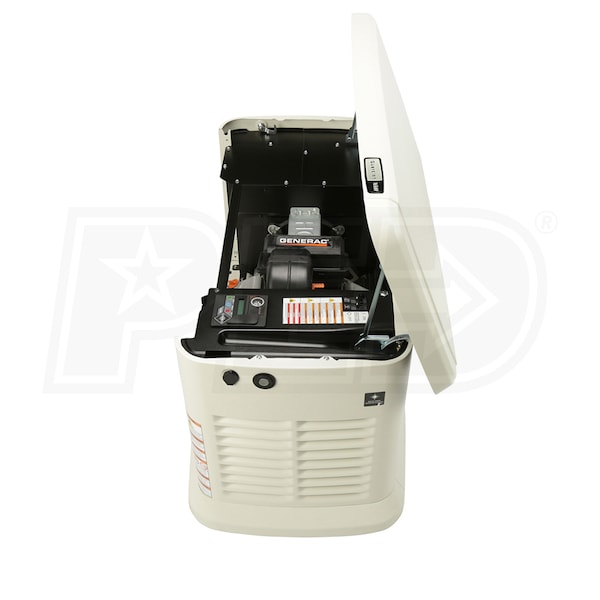

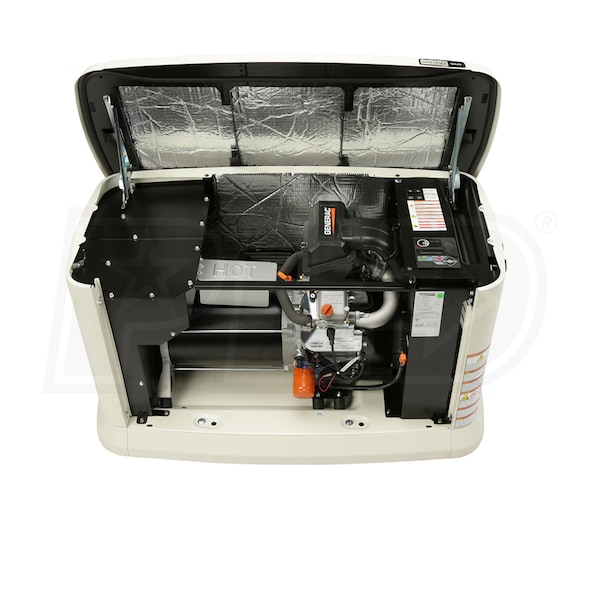

Generac Guardian™ 16kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center)

Close
Generac Guardian Electric Generators and Accessories
Model: 7036
(Based on expert analysis, manufacturer ratings and customer reviews)

5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
2 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock In-Stock
Ships Friday, Oct 20th

Estimate Arrival

This Item cannot be shipped to
HI and AK.
Select Wattage
Select Switch
$3,774.00

StoreShippingPriceShop

In-Stock
Free Freight
$3,774.00
No Sales Tax*
(Except IL)
Buy

$3,787.27
(as of 11:47 CST - Details)
Sales Tax Extra
Visit Site
  • Features
  • Specs
  • 7
    Q&A
  • 2
    Reviews
  • Articles
  • Shipping
  • Accessories
Grade
Style
Run Watts
16,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Generac 16W (LPG) / (NG) Guardian Standby Generator System
Protects your home and family during a power outage

100-Amp Automatic Transfer Switch w/ Integrated Load Center Model: RTG16EZA3
NEMA 3R Outdoor Alumuinum enclosure; Great when main breaker panel is located outdoors

16-Circuit Essential Circuit Load Center
For large main service & only partial generator backup
Allows you to backup 120V & 240V circuits; Tandem breaker compatible

5-Year Limited Warranty
Plus 24/7•365 Customer Support so you have you questions answers when its convient for you

Generac's G-Force Engine
Specifically desgined for the demanding enviroment standby generators endure
Full pressure lubrication system w/ 2 year oil change interval

Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
Connectes to your existing LP or natural gas fuel supply

True Power™ Electrical Technology & Automatic Digital Voltage Regulation (+/- 1%)
Less than 5% Total Harmonic Distorsion (THD) for utility grade power
Allows for faster response time & maximum motor starting ability

Evolution™ Digital Controller
Multilingual, 2-Line LCD display for simple, straighforward operation
Programmable-exerciser lets you set how often & what time generator will self-test

Tough, Durable All-Aluminum Sound Attenuated Enclosure
RhinoCoat™ powder-coated finish keeps enslosure protected from the elements

Compatible With Mobile Link™ Remote Monitoring (Sold Separately)
Easily montior generator status anywhere with a smartphone, tablet, or PC

Installation Flexibility*
Can be installed within 18" of a building; *Always check local bulding codes

Generac Standby Generators & Engines - Built In The USA*
Built in the USA using domestic & foreign parts

Additonal Features:
Flexible fuel line and Direct-To-Dirt composite mounting pad
Built-in Battery Charger (Battery Sold Separately)
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
16000 Watts
Rated Watts
16000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
16000 Watts
LP Power Capacity
16000 Watts
NG Fuel Consumption @ 50% Load
218 (BTU: 218,000 BTU/HR) ft³/hr
NG Fuel Consumption @ 100% Load
309 (BTU: 309,000 BTU/HR) ft³/hr
LP Fuel Consumption @ 50% Load
2.52 (BTU: 228,690 BTU/HR) gallons/hr
LP Fuel Consumption @ 100% Load
2.94 (BTU: 266,805 BTU/HR) gallons/hr
Rated Amps
66.6 @ 240 Volts (Single Phase) Amps
Decibel Rating @ 7m
66 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
Aluminum
Max Circuits
16
Battery
Not Included (540 CCA)
A/C Ton Rating
4-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
513 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
696471070361
Model
7036
Subject: Store ID: Product ID: Data Category: Brand Category:

*Ask Mike about the Generac Guardian 7036. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit
  7 Questions
Q: Can the air cooled unit operate in warm weather conditions and not overheat. We just had a 122 degree day and if the electricity had failed, would this generator be able to handle the load in the heat?
by Gene H. from California on June 27, 2016

A: Thank you for contacting us.

Generac Air-Cooled Standby Generators are tested in accordance to UL 2200 standards with an operating temperature of -20 ºF (-29 ºC) to 122 ºF for normal operating range

Please let us know if you have any other questions.
by Mike, Product Expert
Q: Should I pour a concrete base to place this unit on or can you place on a level dirt pad?
by Jim from Iowa on September 03, 2015

A: Thank you for contacting Electric Generators Direct.

I would advise pouring a concrete base. Or I would advise looking into a GenPad.


GenPad Product Info

by Mike, Product Expert
Q: Can aluminum wire be used to feed the breaker on a Generac generator?
by Glenn from New Jersey on December 11, 2014

A: Thanks for your inquiry.

When wiring the generator it must be in accordance with local jurisdiction and codes. If ALUMINUM conductors are used, apply corrosion inhibitor to conductors.

by Mike, Product Expert
Q: What is the clearance needed on all four sides of the unit for proper operation?

by Mark C. from Connecticut on July 24, 2014

A: Page 11 of the Installation Guide shows proper installation distances according to NFPA and manufacturers recommendations. The guide is available on our site under the specs tab in the download documentation section......

Installation Guide


by Mike, Product Expert
Q: If I'm not around when my home standby generator is running, what type of protections systems do the Generac units have?
by Josh from New Jersey on November 13, 2013

A: The generator may have to run for long periods of time with no operator present to
monitor the engine/generator conditions. Therefore, the generator is equipped with a number of systems to automatically shut down the unit to protect it against potentially damaging conditions. Some of these systems are as follows:

• Low Oil Pressure Sensor
• High Temperature Sensor
• Overcrank Sensor
• Overspeed Sensor
• RPM Sensor
• Under-frequency Sensor
• Undervoltage Sensor
• Overvoltage Sensor
• Internal Failure Sensor
• Low Battery Voltage Alarm

The control panel contains a display which alerts the operator when a fault condition occurs. The above list is not all inclusive. For more information about alarms and control panel operation, see Section 3 (Operation) in the owner's manual.

by Mike, Product Expert
Q: What type of oil should I use in my Generac home standby generator?
by Jim from Illinois on November 11, 2013

A: The maintenance section in the Generac's home standby owner's manual lists that the oil type is based on temperature ranges specific in your area.....

SAE-30 above 32º F (0º C)
10W-30 between 40º and -10º F (4º and -23º C)
Synthetic 5W-30 for all temperature ranges

All new models come with SAE-30 oil in them and have been test run at the factory for 25 hours and no break-in is required. The first oil change would be at 2 years or 200 hours, whichever comes first.

by Mike, Product Expert
Q: I'm not sure if this falls into the repair area but, I'm concerned about the sound this generator produces. Is there a way to lower that? Is there sound proofing approved for use for the interior walls of this type of home standby? My neighbors bedroom window will be 20ft from where I plan to install the generator. I would prefer doing something inside the generator as apposed to some type of fencing or other external methods.

by Mark H. from New Jersey on October 23, 2013

A: The manufacturers make every effort to reduce the sound of their generators as best they can keeping within NFPA and UL requirements. There are currently no options or parts available to install inside home standby systems to reduce their db(A) levels.

Your only option is location or sound barriers installed around the unit while keeping within NFPA and manufacturers distance requirements for proper fire protection, air intake and exhaust output.

We recommend consulting with your local inspector or AHJ (Authority Having Jurisdiction) as to the specific local code requirements.

by Mike, Product Expert
Generac Guardian 7036 Reviews & Ratings
Overall Rating
Features
5/5
Quality
5/5
Performance
5/5
Value
5/5
Overall
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Pros
High Quality (1)
Exceeded Expectations (1)
Quiet (1)
Durable (1)
Cons
none (1)
2 Reviews  Sort by

Mike, the Generator Expert
Electric Generator Expert

Product Expert
Total Reviews
103 Reviews
Total Helpful Votes
10541 Helpful Votes
Electric Generators Direct Recommended

Generac Power Systems offers two versions of a 16 kW home standby generators.

The 16 kW generators are extremely popular because they pack enough power to run a 4-ton air conditioner.

This model sells the best for a few reasons:

1. Automatic Transfer Switch
Guardian's 100-Amp Distributed Load Center ensures the easiest, trouble free installation. You simply pick 16-circuits that you want to power during an outage. Most people choose this option.

If you want to power more than... more
Mike Recommends This Model
Was this review helpful?
18414
Mary M.
Bronson, MI
Purchased from Electric Generators Direct
Purchased 3/31/17
Most Helpful Positive Review
REVIEWED
JUN.
02
2017
5 out of 55 out of 55 out of 55 out of 55 out of 5
What A Great Deal . Now I Can't Wait For The Power To Go Out...
Our power was out for 3 days and we went through 6 gallons of gas with the old generator. So when my boyfriend was out of power for 5 days he and 6 of his neighbors ordered generators from your company as well as I did. Mine was delivered within 5 days and was hooked up within 3. his was delivered within 5 days also. Thanks so much for such a great deal and product.
Pros: Durable, Quiet, Exceeded Expectations, High Quality
Cons: none
Mary Recommends This Generac Guardian Product
