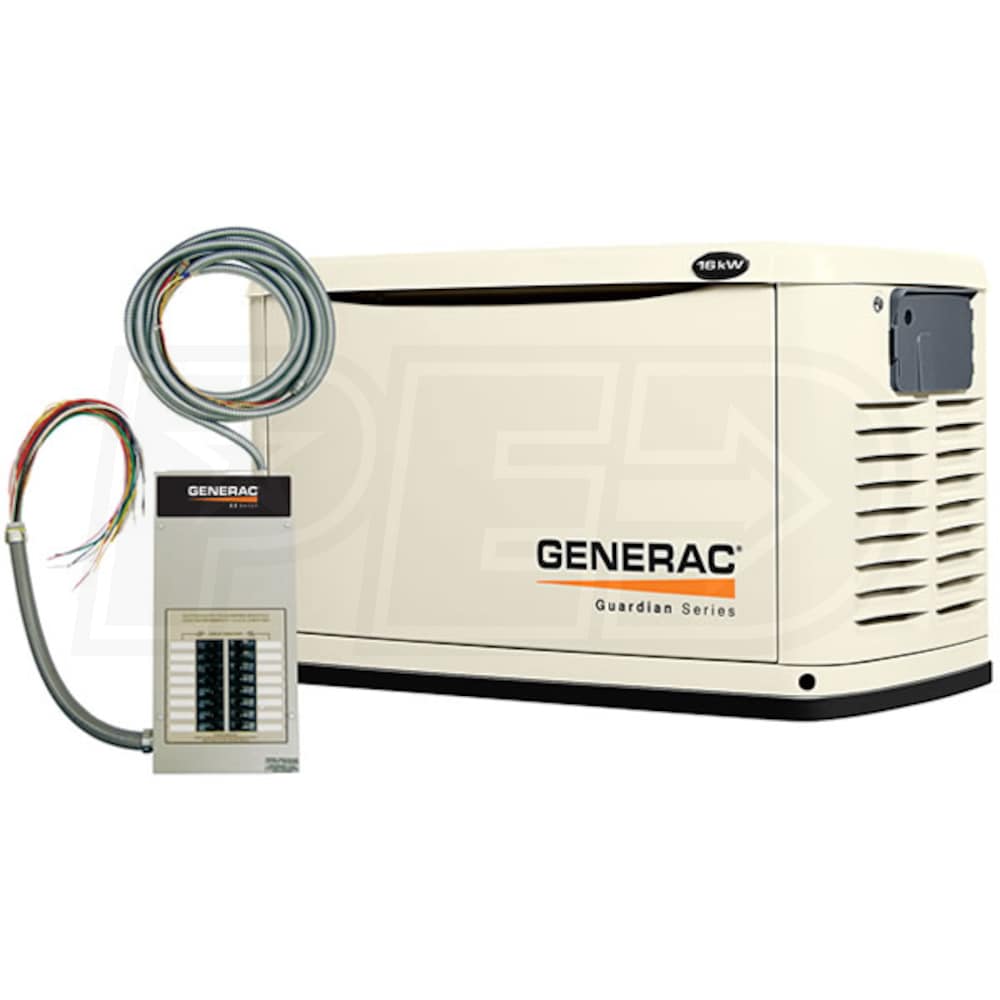

Generac Guardian™ 16kW Standby Generator System (100A 16-Circuit Automatic Switch)

Generac Guardian™ 16kW Standby Generator System (100A 16-Circuit Automatic Switch)
Model: 6461
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 17
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
16,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • New 16kW Standby Generator w/ Fully Automatic Operation
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Generac OHVI Air-Cooled Engine
  • Features plateau honed cylinder walls and plasma-moly rings
  • Full pressure lubrication system w/ 2 year oil change interval
  • Skewed Rotor Design For Smooth Output Waveform "Clean Power"
  • Automatic voltage regulator equipped for +/- 1% regulation
  • Evolution™ Digital Controller Monitors & Controls All Functions
  • Provides system status for wireless monitors & Mobile Link™
  • Sound Attenuated Weather Proof Enclosure
  • Sound dampening enclosure limits sound pressure to a low 66dB(A)
  • Can Be Installed Within 18" Of A Building*
  • Must be away from windows & doors, *Check Local Building Codes
  • Includes 16-Circuit Load Center Style Auto Transfer Switch (100A)
  • 5' Pre-wired External Connection Box From Wall to Generator
  • 30' Pre-Wired Indoor Conduit From Switch To External Box
  • 2' Pre-Wired Indoor Conduit From Transfer Switch To Main Panel
  • 12" flexible fuel line and manual included
  • Built-in Battery Charger (Battery Sold Separately)
  • 5-Year Limited Warranty & 24/7/365 Customer Care
Specifications
Engine
Engine Brand
Generac OHVI
CC
992 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
16000 Watts
Rated Watts
16000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
16000 Watts
LP Power Capacity
16000 Watts
NG Fuel Consumption @ 50% Load
193 ft³/hr
NG Fuel Consumption @ 100% Load
312 ft³/hr
LP Fuel Consumption @ 50% Load
1.99 gallons/hr
LP Fuel Consumption @ 100% Load
3.57 gallons/hr
Rated Amps
67 Amps
Decibel Rating @ 7m
66 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 1R
Battery
Not Included (525 CCA)
A/C Ton Rating
4-Tons
Transfer Switch Style
Pre-Wired (16-Circuit)
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Transfer Switch Circuits
15A 120V
5
20A 120V
5
20A 240V
1
40A 240V
1
50A 240V
1
Overview
Made in USA
Yes
Weight
513 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
696471064612
Grade
Style
Run Watts
16,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • New 16kW Standby Generator w/ Fully Automatic Operation
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Generac OHVI Air-Cooled Engine
  • Features plateau honed cylinder walls and plasma-moly rings
  • Full pressure lubrication system w/ 2 year oil change interval
  • Skewed Rotor Design For Smooth Output Waveform "Clean Power"
  • Automatic voltage regulator equipped for +/- 1% regulation
  • Evolution™ Digital Controller Monitors & Controls All Functions
  • Provides system status for wireless monitors & Mobile Link™
  • Sound Attenuated Weather Proof Enclosure
  • Sound dampening enclosure limits sound pressure to a low 66dB(A)
  • Can Be Installed Within 18" Of A Building*
  • Must be away from windows & doors, *Check Local Building Codes
  • Includes 16-Circuit Load Center Style Auto Transfer Switch (100A)
  • 5' Pre-wired External Connection Box From Wall to Generator
  • 30' Pre-Wired Indoor Conduit From Switch To External Box
  • 2' Pre-Wired Indoor Conduit From Transfer Switch To Main Panel
  • 12" flexible fuel line and manual included
  • Built-in Battery Charger (Battery Sold Separately)
  • 5-Year Limited Warranty & 24/7/365 Customer Care
Specifications
Engine
Engine Brand
Generac OHVI
CC
992 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
16000 Watts
Rated Watts
16000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
16000 Watts
LP Power Capacity
16000 Watts
NG Fuel Consumption @ 50% Load
193 ft³/hr
NG Fuel Consumption @ 100% Load
312 ft³/hr
LP Fuel Consumption @ 50% Load
1.99 gallons/hr
LP Fuel Consumption @ 100% Load
3.57 gallons/hr
Rated Amps
67 Amps
Decibel Rating @ 7m
66 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 1R
Battery
Not Included (525 CCA)
A/C Ton Rating
4-Tons
Transfer Switch Style
Pre-Wired (16-Circuit)
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Transfer Switch Circuits
15A 120V
5
20A 120V
5
20A 240V
1
40A 240V
1
50A 240V
1
Overview
Made in USA
Yes
Weight
513 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
696471064612
Product Specs
+
Specifications
Engine
Engine Brand
Generac OHVI
CC
992 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
16000 Watts
Rated Watts
16000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
16000 Watts
LP Power Capacity
16000 Watts
NG Fuel Consumption @ 50% Load
193 ft³/hr
NG Fuel Consumption @ 100% Load
312 ft³/hr
LP Fuel Consumption @ 50% Load
1.99 gallons/hr
LP Fuel Consumption @ 100% Load
3.57 gallons/hr
Rated Amps
67 Amps
Decibel Rating @ 7m
66 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 1R
Battery
Not Included (525 CCA)
A/C Ton Rating
4-Tons
Transfer Switch Style
Pre-Wired (16-Circuit)
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Transfer Switch Circuits
15A 120V
5
20A 120V
5
20A 240V
1
40A 240V
1
50A 240V
1
Overview
Made in USA
Yes
Weight
513 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
696471064612
