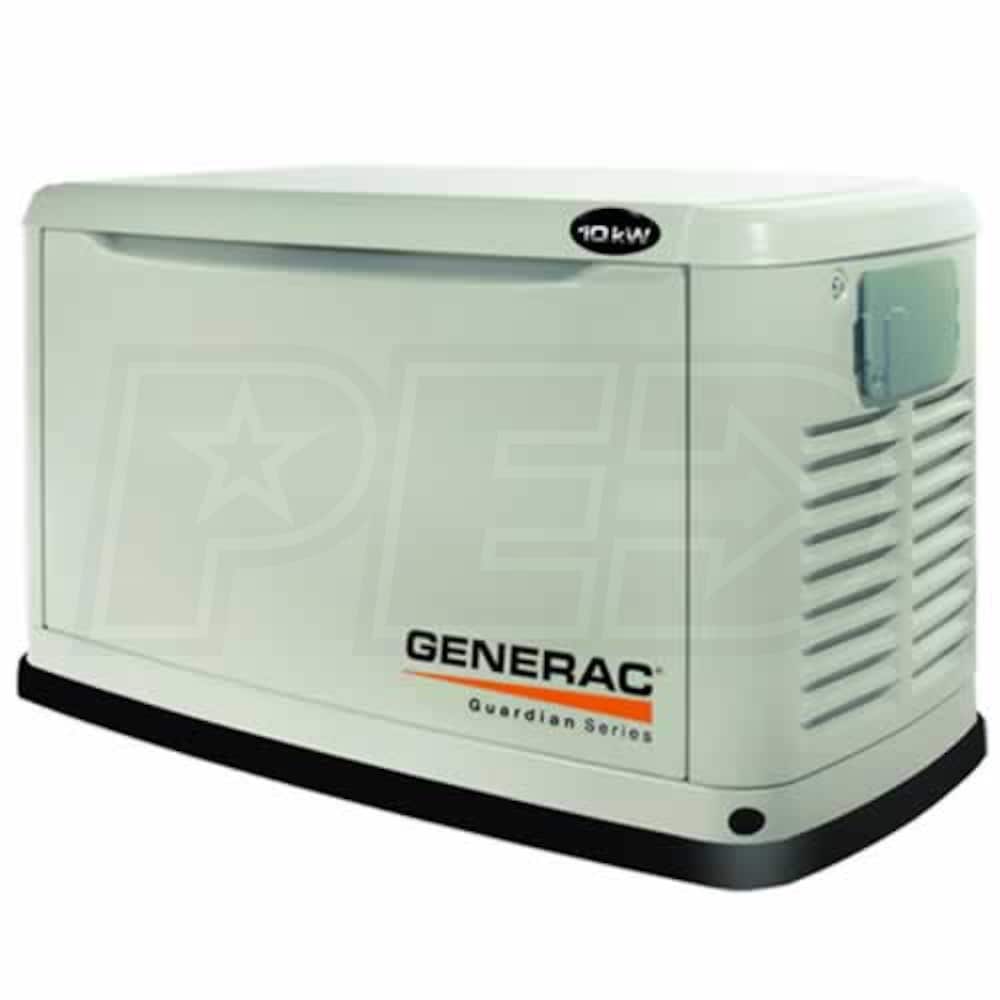

Generac Guardian™ 10kW Home Standby Generator

Generac Guardian™ 10kW Home Standby Generator
Our Price
Compare Prices
Shipping Info
Model: 5883
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (10)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States
Share
  • Product Description
  • 10
    Reviews
  • 6
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
10,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
10,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Features
Features
  • Fully Automatic Operation When Paired With Nexus Smart Switch™
  • Generac OHVI Air-Cooled Engine
  • Features plateau honed cylinder walls and plasma-moly rings
  • Full pressure lubrication system w/ 2 year oil change interval
  • Aids in cooling the engine for longer life
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Skewed Rotor Design For Smooth Output Waveform "Clean Power"
  • Automatic voltage regulator equipped for +/- 1% regulation
  • Nexus™ Digital Controller Monitors & Controls All Functions
  • Provides system status - compatible with Nexus™ wireless monitors
  • Sound Attenuated Weather Proof Enclosure
  • Attractive styling with lockable access doors
  • Incorporates electrostatically applied epoxy paint technology
  • Sound dampening enclosure limits sound pressure to a low 63dB(A)
  • 1' flexible fuel line and DVD manual included
  • Built-in Battery Charger (Battery Sold Separately)
  • Automatic Transfer Switch - ATS (Sold Separately)
  • Customize your system based on your actual application
  • Select the ideal ATS & DLM™ modules for load shed capabilitiesFul
  • Listed to UL2200 Engine/Generator Standard for Safety
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Surge Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
102 ft³/hr
LP Fuel Consumption @ 50% Load
1.25 gallons/hr
Rated Amps
42 Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Steel
A/C Ton Rating
2.5-Tons
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
CC
530 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
387 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
UPC
696471058833
Grade
Style
Run Watts
10,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
10,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Features
Features
  • Fully Automatic Operation When Paired With Nexus Smart Switch™
  • Generac OHVI Air-Cooled Engine
  • Features plateau honed cylinder walls and plasma-moly rings
  • Full pressure lubrication system w/ 2 year oil change interval
  • Aids in cooling the engine for longer life
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Skewed Rotor Design For Smooth Output Waveform "Clean Power"
  • Automatic voltage regulator equipped for +/- 1% regulation
  • Nexus™ Digital Controller Monitors & Controls All Functions
  • Provides system status - compatible with Nexus™ wireless monitors
  • Sound Attenuated Weather Proof Enclosure
  • Attractive styling with lockable access doors
  • Incorporates electrostatically applied epoxy paint technology
  • Sound dampening enclosure limits sound pressure to a low 63dB(A)
  • 1' flexible fuel line and DVD manual included
  • Built-in Battery Charger (Battery Sold Separately)
  • Automatic Transfer Switch - ATS (Sold Separately)
  • Customize your system based on your actual application
  • Select the ideal ATS & DLM™ modules for load shed capabilitiesFul
  • Listed to UL2200 Engine/Generator Standard for Safety
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Surge Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
102 ft³/hr
LP Fuel Consumption @ 50% Load
1.25 gallons/hr
Rated Amps
42 Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Steel
A/C Ton Rating
2.5-Tons
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
CC
530 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
387 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
UPC
696471058833
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Surge Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
102 ft³/hr
LP Fuel Consumption @ 50% Load
1.25 gallons/hr
Rated Amps
42 Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Steel
A/C Ton Rating
2.5-Tons
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
CC
530 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
387 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
UPC
696471058833
Reviews
(10)
+
Generac Guardian 5883 Reviews & Ratings
Product Q&A
(6)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
As a follow-up to my question earlier today what are the main or important differences,if any, between the Generac Guardian 10 kw nat. gas generator Model 5883 and the Model 6439.
Bob Richardson
from New York
May 28, 2013
Answer
Generac went ahead and improved on the design, warranty and ease of installation after listening to consumer reviews and technicians.

They bumped up the warranty an additional 2 years to give it a solid 5 year overall which is one of the highest rated on the market.

They improved on the generator controller by upgrading to a new technology and moved from their very good Nexus design to the new and improved Evolution controller. This new controller has a back-lit interface with LED's that shows the generator status at a glance.

The new Evolution controller includes maintenance reminders and logs, battery condition (no guessing) and over a half-dozen additional alarms the Nexus controller did not have. This thing rocks!

They upgraded the engine to include a no choke carburetor which helps with all weather starting. They changed the fuel selector for natural gas and LP to an easy knob that is easy to access and change fuel type with ease (No tools required).

For the installers they made several changes to help with installation costs and time, minimize errors and accommodate current and future electric code interpretations by re-engineered some of the wiring connections.

With the changes to the carb and engine they were able to change the low fuel pressure rating for Natural Gas down from 5" of Water Column to 3.5" of Water Column. This will help tremendously with low fuel pressure areas in the country so the meters do not need to be changed as often.

With all of these upgrades they have performed I believe Generac's newest model is one of the best out there and comes highly recommended.
+
Can you suggest a generator package that will work with the Model 5449 Panel? Looking for something around 8-12kW. Thanks!
Andres
from Massachusetts
June 03, 2012
Answer
Any of the individual Generac home standby generators will work with model 5449 transfer panel.....here are links to the 8kW, 10kW and the 14kW models available.

Generac Guardian Model 5882 - 8kW

Generac Guardian Model 5883 - 10kW

Generac Guardian Model 5884 - 14kW
+
Jim I have a 100 amp Pre-Nexus service rated transfer switch. Can I use this with a nexus generator? Ive heard there is some special wiring for the battery charger to work
Mike Noonan
from Michigan
April 18, 2011
Answer
There is a special kit that needs to be added to the switch to accept the 120V connection which provides the power to the internal generator controller for the charger. These kits are available from your local Generac dealer - Part Number: 0H93030SRV.


+
How far does a generator has to be from my house?
Jim
from Massachusetts
February 04, 2011
Answer
The manufacturer recommends the back side of the unit to be set no less then 18 inches from any non-combustible surface and the sides of the unit need at least 36 inches for proper intake and exhaust.

Note: It is recommended to check with your city, county and state codes as they may differ from the manufacturers recommendations.
+
What kind of oil comes in the generator, and when it is time to change it? Can I run Mobile 1 Synthetic 5W30 year round in central Oklahoma?
Ron Hopper
from Oklahoma
January 24, 2011
Answer
The Generac standby generators are shipped with 5W30 oil in them and Generac does give the option to use 5W30 Synthetic in needed. The owner's manual covers all oil options and temperature ranges. Oil changes are determined by use and maintenance is also covered in the manual.

Owners Manual
+
Can this generator be anchored to the slab? If so, can you provide an anchor bolt layout
Gregg Deemer
from Texas
January 21, 2011
Answer
Generac's model 5885, as with all of their standby generators, are anchored to the pallet at all 4 corners with special anchors which can be used to anchor the unit directly to your concrete base using concrete bolts.
