Generac Guardian 5506
Generac Guardian 5506
Hover to zoom
1 Of 5

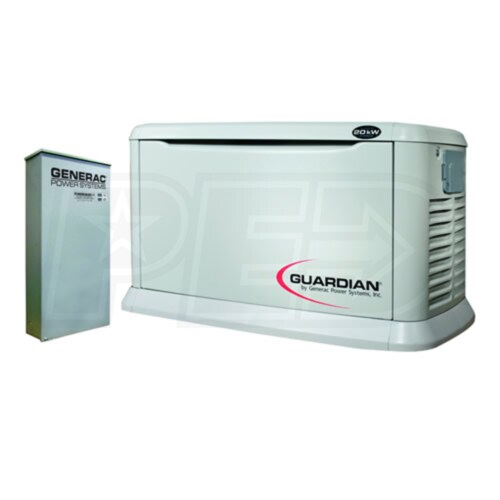

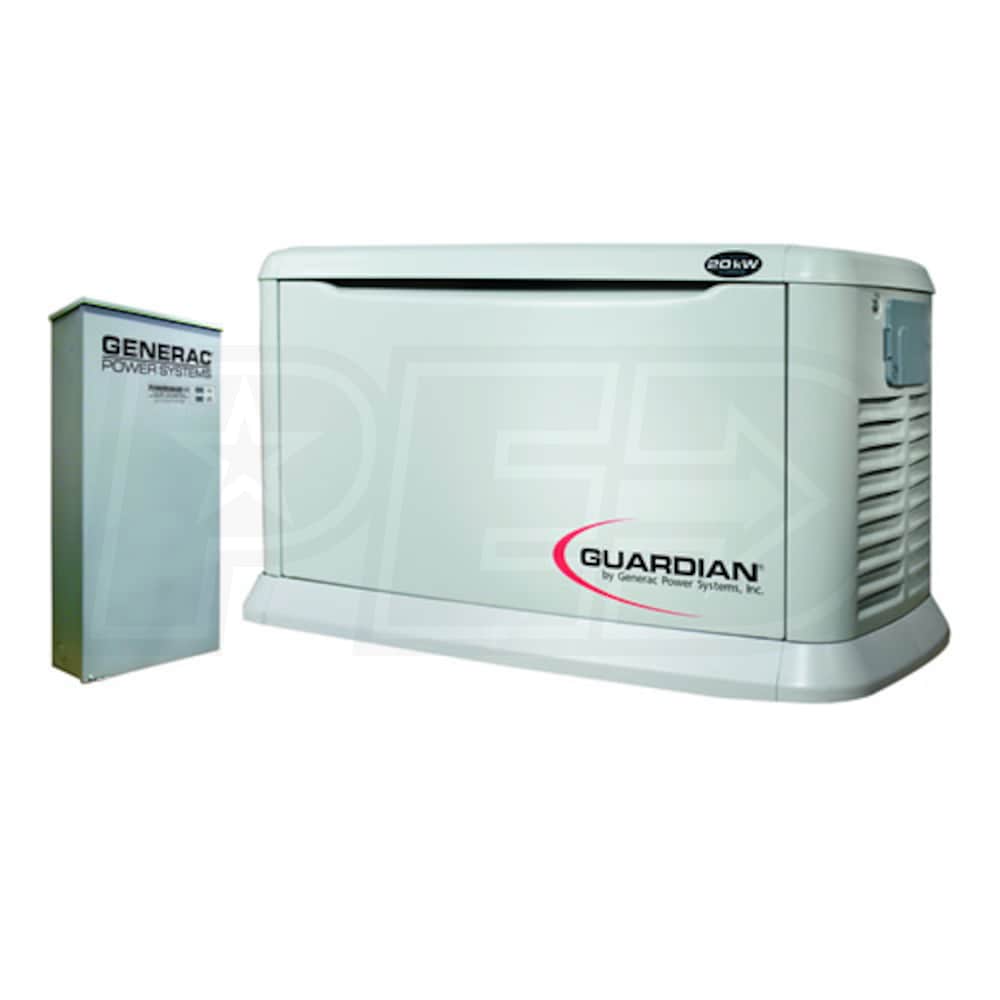

Generac Guardian Series™ 20 kW Emergency Power System w/ Aluminum Enclosure

Model:

5506

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac Guardian Series™ 20 kW Emergency Power System w/ Aluminum Enclosure
Generac Guardian Series™ 20 kW Emergency Power System w/ Aluminum Enclosure
Model: 5506
Product Discontinued
Accessories
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

20,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac

    Specifications

    5506
    specs product image PID-1824
    Overview
    Weight
    541 Pounds
    Made in USA
    Yes
    Consumer Warranty
    3 Years
    Commercial Warranty
    3 Years
    Product Style
    Standby Generator
    Product Length
    48 Inches
    Product Width
    25 Inches
    Product Height
    29 Inches
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    20000 Watts
    Surge Watts
    20000 Watts
    Fuel Type
    LP/Natural Gas
    NG Power Capacity
    18000 Watts
    LP Power Capacity
    20000 Watts
    NG Fuel Consumption @ 50% Load
    206 ft³/hr
    LP Fuel Consumption @ 50% Load
    1.89 gallons/hr
    Rated Amps
    83 Amps
    Decibel Rating @ 7m Learn More
    Decibel Rating @ 7m
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    66 dbA
    Transfer Switch
    Automatic (Included)
    Transfer Switch Amperage
    200-Amps
    Battery
    Not Included (525 CCA)
    Enclosure
    Aluminum
    A/C Ton Rating
    5-Tons
    Mounting Pad
    Composite (Included)
    Transfer Switch Style
    Service Disconnect
    ATS Poles
    2 Poles
    Cooling System
    Air Cooled
    UL Listed
    Yes
    Grade Type
    Emergency
    Engine
    Engine Brand
    Generac
    HP
    36 HP
    CC
    999 CC
    Consumer Engine Warranty
    3 Years
    Commercial Engine Warranty
    3 Years
    Engine RPM
    3600 RPM
    Low Oil Alert/Shutdown
    Yes
    Transfer Switch Circuits
    15A 120V
    5
    20A 120V
    5
    20A 240V
    1
    40A 240V
    1
    50A 240V
    1
