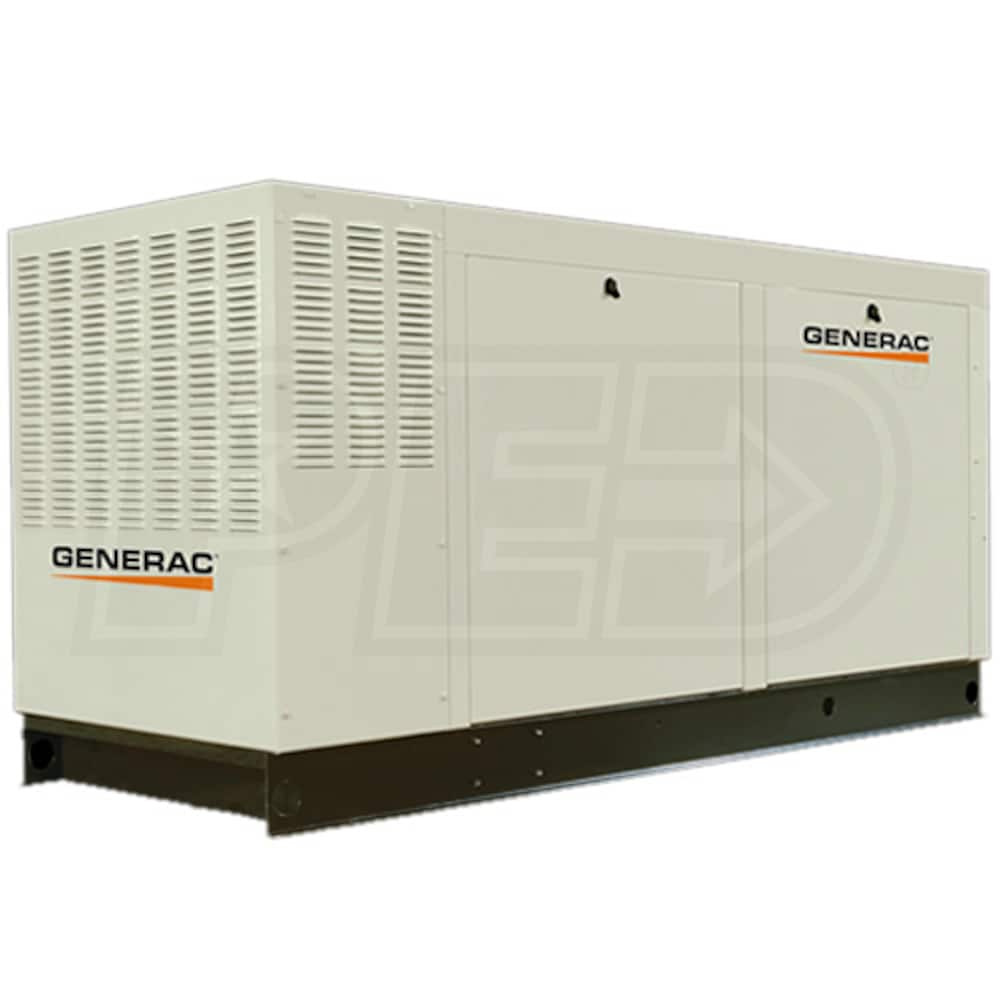

Generac Commercial Series 130kW Standby Generator (120/240V Single-Phase)(NG) SCAQMD Compliant
Generac Commercial Series 130kW Standby Generator (120/240V Single-Phase)(NG) SCAQMD Compliant
+
Share This Product
-
Product Description
-
1Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
117,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
117,000
Voltage
120/240 Single-Phase
Fuel
Natural Gas
Engine
Generac 6.8 L V-10
Features
Features
- SCAQMD Compliant
- Meets emissions requirements for sale in CA/MA
- Generac QT 130 Emergency Standby Generator
- Designed for large homes and small commercial buildings
- For 120/240 Volt Single-Phase applications
- Natural Gas (NG) Powered
- WILL NOT WORK with LP fuel source
- Solid State, Frequency Compensated Voltage Regulation
- Provides fast response to changing load conditions
- Allows for digital voltage regulation of +/- 1%
- 6.8L Generac V-10 Automotive-Style Engine
- Brushless Alternator - Less Than .25 % THD
- Improved frequency (HZ) regulation for cleaner power
- Digital Nexus™ Controller
- Two-Line, tri-lingual LCD display for ease of use
- Provides service & maintenance intervals
- Automatic Shutdown Safety Feature
- High coolant temp, low coolant, low oil pressure and overspeed
- Quiet-Test™ Mode
- Low-speed exercise mode for quieter weekly tests; 69 dB @ 23'
- Sound Attenuated, Acoustically Designed Aluminum Enclosure
- Corrosion-resistant material ideal for salty air conditions
- Mobile Link (Sold Separately)
- Easily check generator status via computer, tablet or smartphone
- Transfer Switch (Sold Separately)
- Customize your system based on your actual application
- 2-Year Limited Warranty
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
117000 Watts
Fuel Type
Natural Gas
NG Power Capacity
117000 Watts
NG Fuel Consumption @ 50% Load
927 ft³/hr
NG Fuel Consumption @ 100% Load
1786 ft³/hr
Rated Amps
488 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 Test (75 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (700 CCA)
Enclosure
Aluminum
Circuit Breaker Size
600 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 6.8 L V-10
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
2970 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
2699 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Standby Generator
Product Length
116 Inches
Product Width
37 Inches
Product Height
55 Inches
UPC
696471609646
Grade
Style
Run Watts
117,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
117,000
Voltage
120/240 Single-Phase
Fuel
Natural Gas
Engine
Generac 6.8 L V-10
Features
Features
- SCAQMD Compliant
- Meets emissions requirements for sale in CA/MA
- Generac QT 130 Emergency Standby Generator
- Designed for large homes and small commercial buildings
- For 120/240 Volt Single-Phase applications
- Natural Gas (NG) Powered
- WILL NOT WORK with LP fuel source
- Solid State, Frequency Compensated Voltage Regulation
- Provides fast response to changing load conditions
- Allows for digital voltage regulation of +/- 1%
- 6.8L Generac V-10 Automotive-Style Engine
- Brushless Alternator - Less Than .25 % THD
- Improved frequency (HZ) regulation for cleaner power
- Digital Nexus™ Controller
- Two-Line, tri-lingual LCD display for ease of use
- Provides service & maintenance intervals
- Automatic Shutdown Safety Feature
- High coolant temp, low coolant, low oil pressure and overspeed
- Quiet-Test™ Mode
- Low-speed exercise mode for quieter weekly tests; 69 dB @ 23'
- Sound Attenuated, Acoustically Designed Aluminum Enclosure
- Corrosion-resistant material ideal for salty air conditions
- Mobile Link (Sold Separately)
- Easily check generator status via computer, tablet or smartphone
- Transfer Switch (Sold Separately)
- Customize your system based on your actual application
- 2-Year Limited Warranty
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
117000 Watts
Fuel Type
Natural Gas
NG Power Capacity
117000 Watts
NG Fuel Consumption @ 50% Load
927 ft³/hr
NG Fuel Consumption @ 100% Load
1786 ft³/hr
Rated Amps
488 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 Test (75 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (700 CCA)
Enclosure
Aluminum
Circuit Breaker Size
600 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 6.8 L V-10
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
2970 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
2699 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Standby Generator
Product Length
116 Inches
Product Width
37 Inches
Product Height
55 Inches
UPC
696471609646
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
117000 Watts
Fuel Type
Natural Gas
NG Power Capacity
117000 Watts
NG Fuel Consumption @ 50% Load
927 ft³/hr
NG Fuel Consumption @ 100% Load
1786 ft³/hr
Rated Amps
488 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 Test (75 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (700 CCA)
Enclosure
Aluminum
Circuit Breaker Size
600 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 6.8 L V-10
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
2970 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
2699 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Standby Generator
Product Length
116 Inches
Product Width
37 Inches
Product Height
55 Inches
UPC
696471609646
