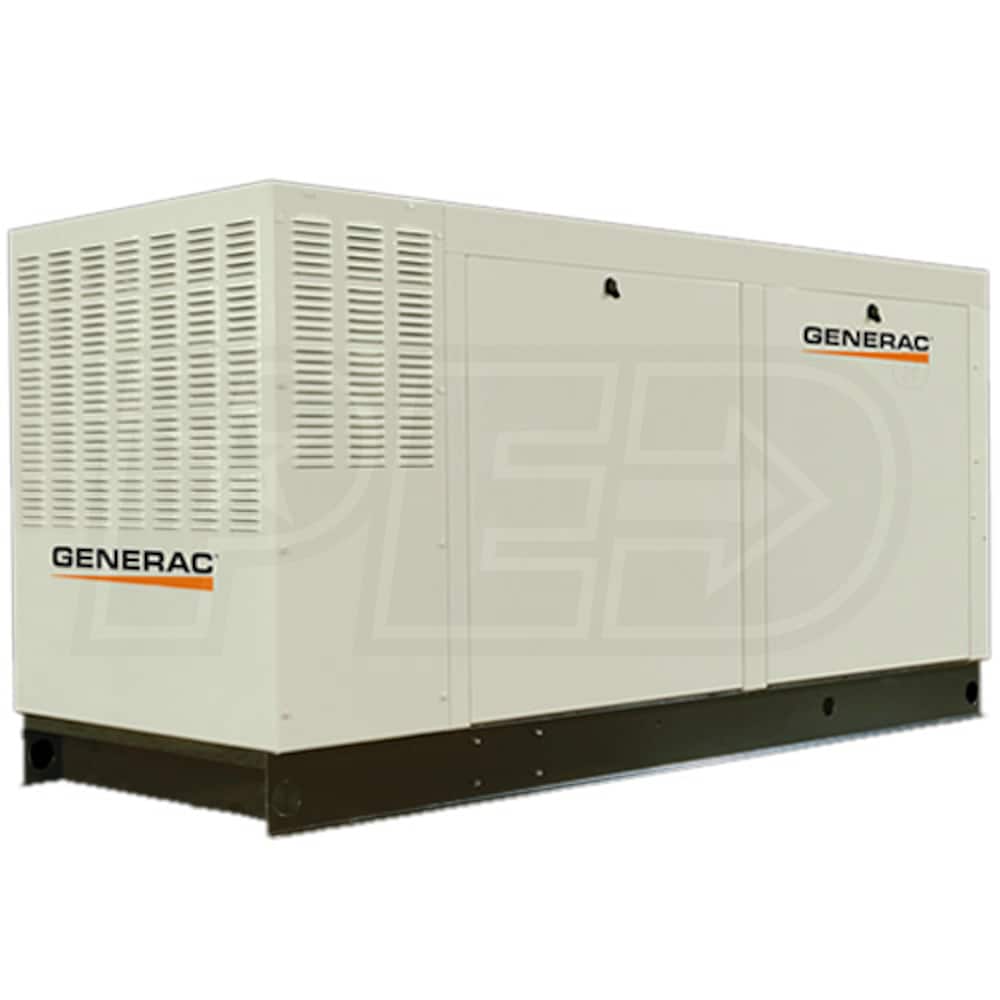

Generac Commercial Series 100kW Standby Generator (120/208V 3-Phase)(NG) SCAQMD Compliant

Generac Commercial Series 100kW Standby Generator (120/208V 3-Phase)(NG) SCAQMD Compliant
Model: QT10068GNAC
$24,499.00
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
$50 Referral Rebate - Click Here For Printable Form

Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, California, Connecticut, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
94,000
Rated Watts
Voltage
120/208 Three-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
94,000
Voltage
120/208 Three-Phase
Fuel
Natural Gas
Engine
Generac 6.8 L V-10
Features
Features
  • This unit is for sale in MA
  • UL Listed: For safety and certified power ratings
  • NG - Powered Generator
  • Designed for commercial buildings with 120/208V service
  • WILL NOT WORK with LP fuel source
  • Whisper-Test
  • Reduces sound output to 61 dB(A) from 72 dB(A) @ 7 meters
  • Automotive-Style Engine
  • Quiet 6.8L Generac V-10 engine liquid-cooled
  • Aluminum Weather-Protected Enclosure
  • Shelters generator from weather and reduces exterior noise
  • Insulation lowers sound levels by 2-3 decibels
  • Built-In Battery Charger
  • Maintains battery (sold separately) at optimum performance
  • Automatic Safety Shutdown
  • Low oil pressure, high temperature protection
  • Overspeed and/or overcrank protection
  • Requires "RTS Series" Transfer Switch (Sold Separately)
  • WILL NOT WORK W/ "HTS Series" Transfer Switch
Specifications
Engine
Engine Brand
Generac 6.8 L V-10
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
2300 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
94000 Watts
Fuel Type
Natural Gas
NG Power Capacity
94000 Watts
NG Fuel Consumption @ 50% Load
713 ft³/hr
NG Fuel Consumption @ 100% Load
1260 ft³/hr
LP Fuel Consumption @ 100% Load
13.9 gallons/hr
Rated Amps
326 Amps
Decibel Rating @ 7m
61 Test (72 Run) dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Aluminum
Battery
Not Included (700 CCA)
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
2531 Pounds
Product Style
Standby Generator
Product Length
116 Inches
Product Width
37 Inches
Product Height
55 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471610178
Grade
Style
Run Watts
94,000
Rated Watts
Voltage
120/208 Three-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
94,000
Voltage
120/208 Three-Phase
Fuel
Natural Gas
Engine
Generac 6.8 L V-10
Features
Features
  • This unit is for sale in MA
  • UL Listed: For safety and certified power ratings
  • NG - Powered Generator
  • Designed for commercial buildings with 120/208V service
  • WILL NOT WORK with LP fuel source
  • Whisper-Test
  • Reduces sound output to 61 dB(A) from 72 dB(A) @ 7 meters
  • Automotive-Style Engine
  • Quiet 6.8L Generac V-10 engine liquid-cooled
  • Aluminum Weather-Protected Enclosure
  • Shelters generator from weather and reduces exterior noise
  • Insulation lowers sound levels by 2-3 decibels
  • Built-In Battery Charger
  • Maintains battery (sold separately) at optimum performance
  • Automatic Safety Shutdown
  • Low oil pressure, high temperature protection
  • Overspeed and/or overcrank protection
  • Requires "RTS Series" Transfer Switch (Sold Separately)
  • WILL NOT WORK W/ "HTS Series" Transfer Switch
Specifications
Engine
Engine Brand
Generac 6.8 L V-10
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
2300 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
94000 Watts
Fuel Type
Natural Gas
NG Power Capacity
94000 Watts
NG Fuel Consumption @ 50% Load
713 ft³/hr
NG Fuel Consumption @ 100% Load
1260 ft³/hr
LP Fuel Consumption @ 100% Load
13.9 gallons/hr
Rated Amps
326 Amps
Decibel Rating @ 7m
61 Test (72 Run) dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Aluminum
Battery
Not Included (700 CCA)
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
2531 Pounds
Product Style
Standby Generator
Product Length
116 Inches
Product Width
37 Inches
Product Height
55 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471610178
Product Specs
+
Specifications
Engine
Engine Brand
Generac 6.8 L V-10
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
2300 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
94000 Watts
Fuel Type
Natural Gas
NG Power Capacity
94000 Watts
NG Fuel Consumption @ 50% Load
713 ft³/hr
NG Fuel Consumption @ 100% Load
1260 ft³/hr
LP Fuel Consumption @ 100% Load
13.9 gallons/hr
Rated Amps
326 Amps
Decibel Rating @ 7m
61 Test (72 Run) dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Aluminum
Battery
Not Included (700 CCA)
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
2531 Pounds
Product Style
Standby Generator
Product Length
116 Inches
Product Width
37 Inches
Product Height
55 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471610178
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(2)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
How much clearance is required around this unit for ventilation and service?
Frank G.
from New York
January 30, 2017
Answer
Per Generac: Allow sufficient room on all sides of the generator for maintenance and servicing. This unit must be installed in accordance with current applicable NFPA 37 and NFPA 70 standards as well as any other Federal, State and Local codes for minimum distances from other structures. Spec Sheet. I recommend checking with a local inspector to see what clearances are needed to meet code.
+
What size is the gas fitting on the generator?
John O'sullivan
from Oregon
October 18, 2012
Answer
The fuel fitting size is found on the spec sheet listed under the specs on the generator product page.

The spec sheet lists the fuel inlet as 1-1/4" Female NPT

100kW Spec Sheet
