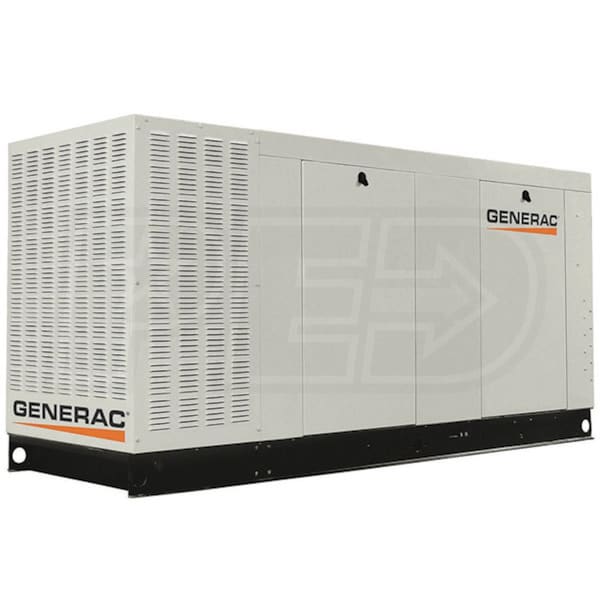

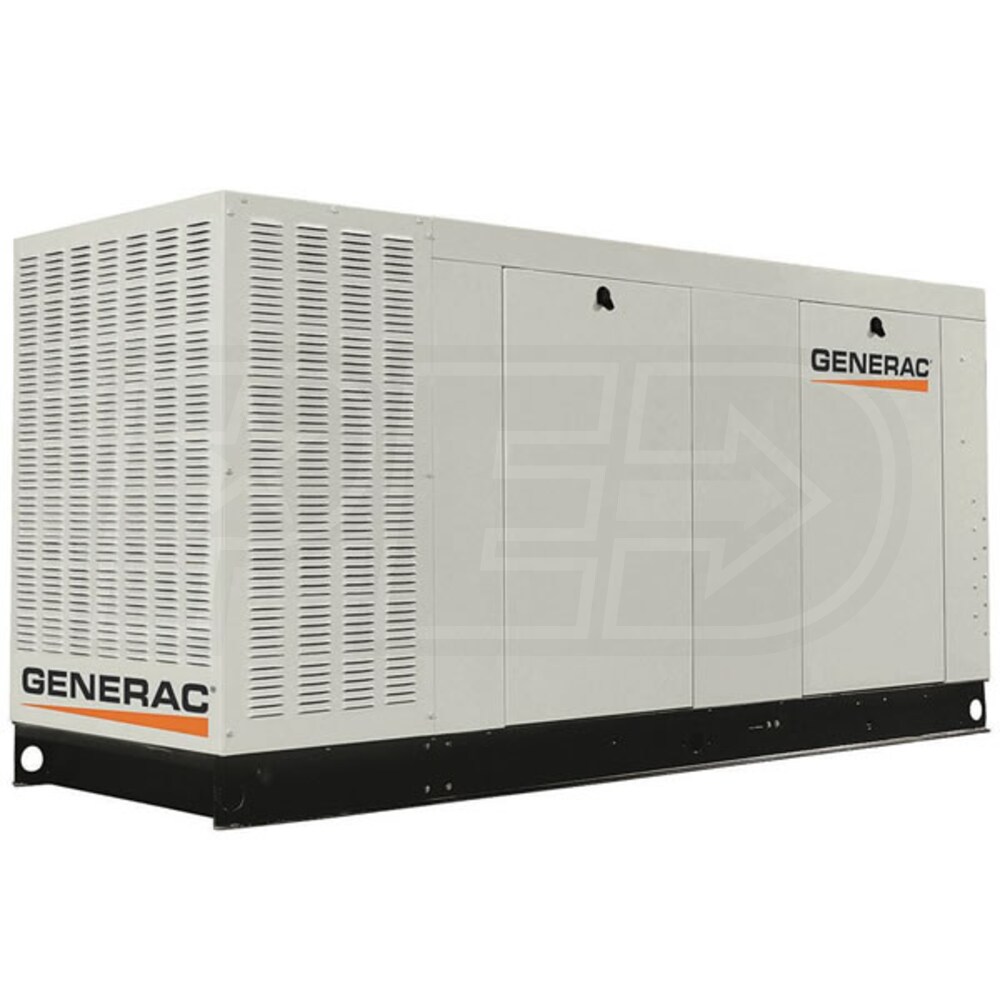

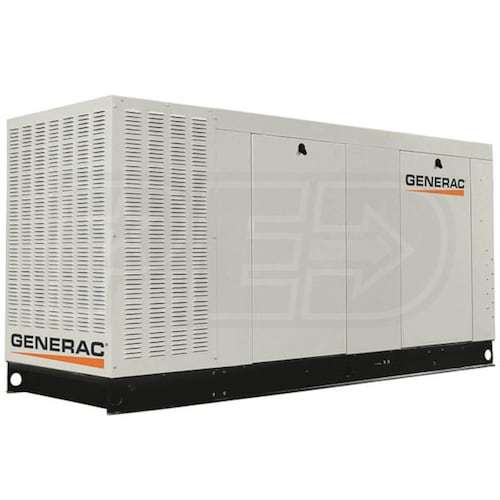

Generac Commercial Series 70 kW Standby Generator (120/208V 3-Phase)(LP)

Generac Commercial Series 70 kW Standby Generator (120/208V 3-Phase)(LP)
Model: QT07068GVAX
$18,129.00
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
$50 Referral Rebate - Click Here For Printable Form

Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, California, Connecticut, Hawaii, Massachusetts or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
70,000
Rated Watts
Voltage
120/208 Three-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
70,000
Voltage
120/208 Three-Phase
Fuel
LP
Engine
Generac 6.8 L V-10
Features
Features
  • UL Listed: For safety and certified power ratings
  • LP
  • Designed for commercial buildings with 120/208V service
  • WILL NOT WORK with NG fuel source
  • Whisper-Test
  • Ultra-quiet operation during weekly exercises
  • Reduces sound output to 61 dB(A) from 65 dB(A) @ 7 meters
  • Automotive-Style Engine
  • Quiet 6.8L Generac V-10 engine liquid-cooled
  • Aluminum Weather-Protected Enclosure
  • Shelters generator from weather and reduces exterior noise
  • Insulation lowers sound levels by 2-3 decibels
  • Hour Meter
  • Monitors for service and maintenance intervals
  • Automatic Shutdown
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Requires "RTS Series" Transfer Switch (Sold Separately)
  • WILL NOT WORK W/ "HTS Series" Transfer Switch
Specifications
Engine
Engine Brand
Generac 6.8 L V-10
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
70000 Watts
Fuel Type
LP
LP Power Capacity
70000 Watts
NG Fuel Consumption @ 100% Load
1020 ft³/hr
LP Fuel Consumption @ 50% Load
5.46 gallons/hr
LP Fuel Consumption @ 100% Load
11.17 gallons/hr
Rated Amps
243 Amps
Decibel Rating @ 7m
67 Test (72 Run) dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Aluminum
Battery
Not Included (525 CCA)
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Transfer Switch Circuits
Circuit Breaker Size
300 Amps
Overview
Made in USA
Yes
Weight
2185 Pounds
Product Style
Standby Generator
Product Length
97 Inches
Product Width
37 Inches
Product Height
48 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471611113
Grade
Style
Run Watts
70,000
Rated Watts
Voltage
120/208 Three-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
70,000
Voltage
120/208 Three-Phase
Fuel
LP
Engine
Generac 6.8 L V-10
Features
Features
  • UL Listed: For safety and certified power ratings
  • LP
  • Designed for commercial buildings with 120/208V service
  • WILL NOT WORK with NG fuel source
  • Whisper-Test
  • Ultra-quiet operation during weekly exercises
  • Reduces sound output to 61 dB(A) from 65 dB(A) @ 7 meters
  • Automotive-Style Engine
  • Quiet 6.8L Generac V-10 engine liquid-cooled
  • Aluminum Weather-Protected Enclosure
  • Shelters generator from weather and reduces exterior noise
  • Insulation lowers sound levels by 2-3 decibels
  • Hour Meter
  • Monitors for service and maintenance intervals
  • Automatic Shutdown
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Requires "RTS Series" Transfer Switch (Sold Separately)
  • WILL NOT WORK W/ "HTS Series" Transfer Switch
Specifications
Engine
Engine Brand
Generac 6.8 L V-10
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
70000 Watts
Fuel Type
LP
LP Power Capacity
70000 Watts
NG Fuel Consumption @ 100% Load
1020 ft³/hr
LP Fuel Consumption @ 50% Load
5.46 gallons/hr
LP Fuel Consumption @ 100% Load
11.17 gallons/hr
Rated Amps
243 Amps
Decibel Rating @ 7m
67 Test (72 Run) dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Aluminum
Battery
Not Included (525 CCA)
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Transfer Switch Circuits
Circuit Breaker Size
300 Amps
Overview
Made in USA
Yes
Weight
2185 Pounds
Product Style
Standby Generator
Product Length
97 Inches
Product Width
37 Inches
Product Height
48 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471611113
Product Specs
+
Specifications
Engine
Engine Brand
Generac 6.8 L V-10
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
70000 Watts
Fuel Type
LP
LP Power Capacity
70000 Watts
NG Fuel Consumption @ 100% Load
1020 ft³/hr
LP Fuel Consumption @ 50% Load
5.46 gallons/hr
LP Fuel Consumption @ 100% Load
11.17 gallons/hr
Rated Amps
243 Amps
Decibel Rating @ 7m
67 Test (72 Run) dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Aluminum
Battery
Not Included (525 CCA)
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Transfer Switch Circuits
Circuit Breaker Size
300 Amps
Overview
Made in USA
Yes
Weight
2185 Pounds
Product Style
Standby Generator
Product Length
97 Inches
Product Width
37 Inches
Product Height
48 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471611113
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
Will a 120/208 volt 3-phase generator work with a 120/240 delta 3-phase electric service?
Ross Trujillo
from New Mexico
February 22, 2011
Answer
This unit is specific to 120/208V 3-Phase only but Generac does offer a 70kW 120/240V 3-Phase configuration.

70kW 120/240V 3-Phase Model
