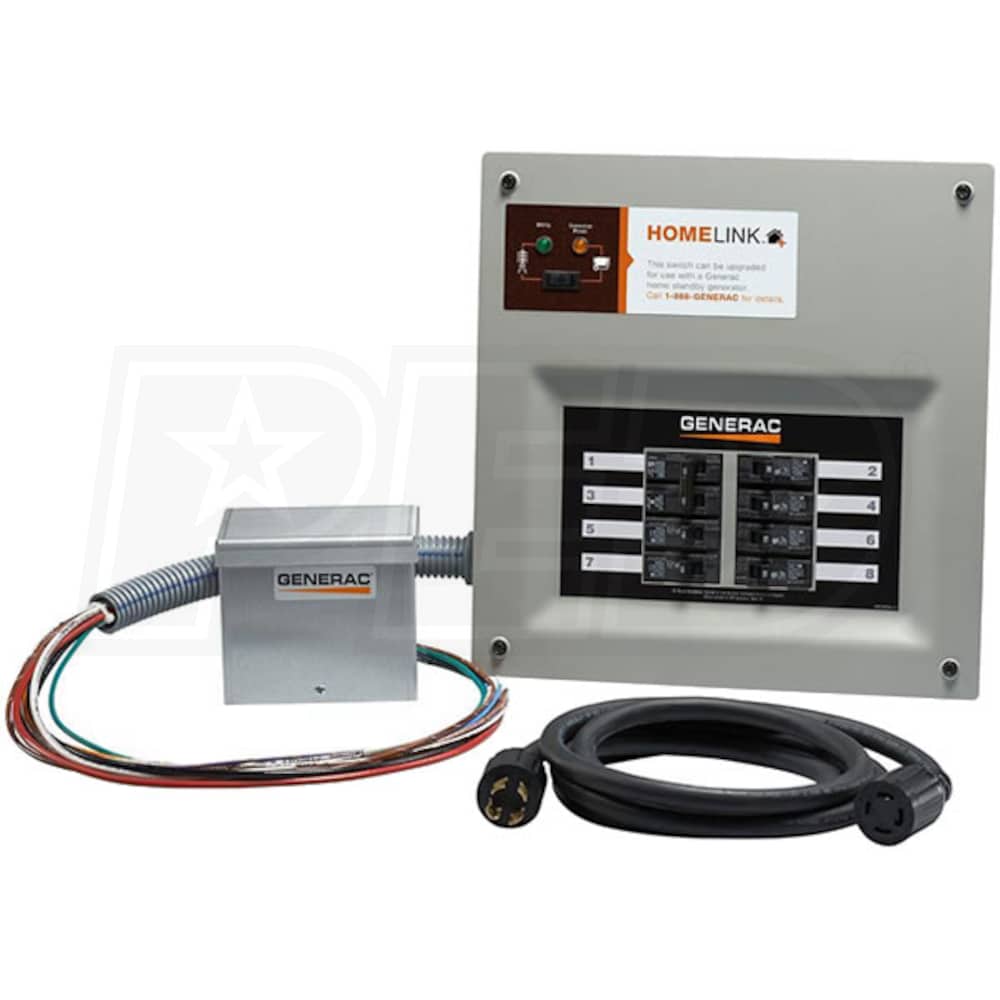

Generac 6854 - 30-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch System (Alum.)
Model: 6854
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
Number of Reviews(3)
Write a Review
$399.99
Backordered
Estimated Availability February 04, 2021
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
$67 / Month
Suggested monthly payments with 6 month financing.
Available Add-Ons
Learn More Installation
Share
  • Product Description
  • 3
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Generac 30-A HomeLinkô Upgradeable Manual Transfer Switch
  • Meets your needs today & when you're ready to upgrade
  • Pre-Wired 30-Amp Manual Transfer Switch
  • Interchangeable breakers make it easy to reconfigure or expand
  • Also Includes
  • (1) 10' 30-Amp (L14-30) Power Cord
  • (1) 30-Amp (L14-30) Aluminum Power Inlet Box (must be hardwired)
  • Safely Power Hard-Wired Circuits
  • The electricity you need to power your furnace, sump pumps, etc.
  • From Manual to Automatic - Essential Circuit Coverage
  • From a portable to a standby generator (11kW Max)
  • Ready When You Are (By Cert Electrician)
  • Field-upgradable to an automatic switch panel & new faceplate
  • Includes 8 Total Circuits (Expands up to 10)
  • (1) 30-Amp 2-Pole, (1) 20-Amp 1-Pole, & (5) 15-Amp 1-Pole
  • Versatile Design & Flexible & Cost Effective Installation
  • Can be used w/ GFCI and Non-GFCI portable generators
  • Uses 1" standard, tandem, GFCI & AFCI breakers
  • *Req's 50-Amp 2-Pole Breaker in Main Load Center (Not Included)
  • 5-Year Limited Warranty
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
8
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
27.2 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
15.4 Inches
Product Width
15.8 Inches
Product Height
4 Inches
UPC
696471072303
Transfer Switch Circuits
15A 120V
5
20A 120V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Generac 30-A HomeLinkô Upgradeable Manual Transfer Switch
  • Meets your needs today & when you're ready to upgrade
  • Pre-Wired 30-Amp Manual Transfer Switch
  • Interchangeable breakers make it easy to reconfigure or expand
  • Also Includes
  • (1) 10' 30-Amp (L14-30) Power Cord
  • (1) 30-Amp (L14-30) Aluminum Power Inlet Box (must be hardwired)
  • Safely Power Hard-Wired Circuits
  • The electricity you need to power your furnace, sump pumps, etc.
  • From Manual to Automatic - Essential Circuit Coverage
  • From a portable to a standby generator (11kW Max)
  • Ready When You Are (By Cert Electrician)
  • Field-upgradable to an automatic switch panel & new faceplate
  • Includes 8 Total Circuits (Expands up to 10)
  • (1) 30-Amp 2-Pole, (1) 20-Amp 1-Pole, & (5) 15-Amp 1-Pole
  • Versatile Design & Flexible & Cost Effective Installation
  • Can be used w/ GFCI and Non-GFCI portable generators
  • Uses 1" standard, tandem, GFCI & AFCI breakers
  • *Req's 50-Amp 2-Pole Breaker in Main Load Center (Not Included)
  • 5-Year Limited Warranty
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
8
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
27.2 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
15.4 Inches
Product Width
15.8 Inches
Product Height
4 Inches
UPC
696471072303
Transfer Switch Circuits
15A 120V
5
20A 120V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Product Specs
+
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
8
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
27.2 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
15.4 Inches
Product Width
15.8 Inches
Product Height
4 Inches
UPC
696471072303
Transfer Switch Circuits
15A 120V
5
20A 120V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Reviews
(3)
+
Generac 6854 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
If I have an 8,500-watt automatic start generator can I use a transfer switch box that is 7,500 watt max?
linda
from California
October 01, 2020
Answer
The wattage on your generator should not exceed the wattage of the switch. The exception to this is if you are utilizing a L14-30R receptacle on the generator to connect the cord to the inlet box for your switch. If this is done, the max output from the generator to the switch is 7200 watts from the receptacle and you are good to go.
