Generac 6408 - 30-Amp/20-Amp Power Transfer Switch Kit (6-10 Circuits)

Generac 6408 - 30-Amp/20-Amp Power Transfer Switch Kit (6-10 Circuits)
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Share
  • Product Description
  • 2
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Prewired Manual Transfer Kit For 6-10 Circuits
  • Works with any portable generator up to 7500 watts
  • Versatile Connection
  • Includes 20-Amp (L14-20) plug for generators up to 5000 watts
  • Built-in Wattage Meter
  • Track power input to ensure proper load balancing

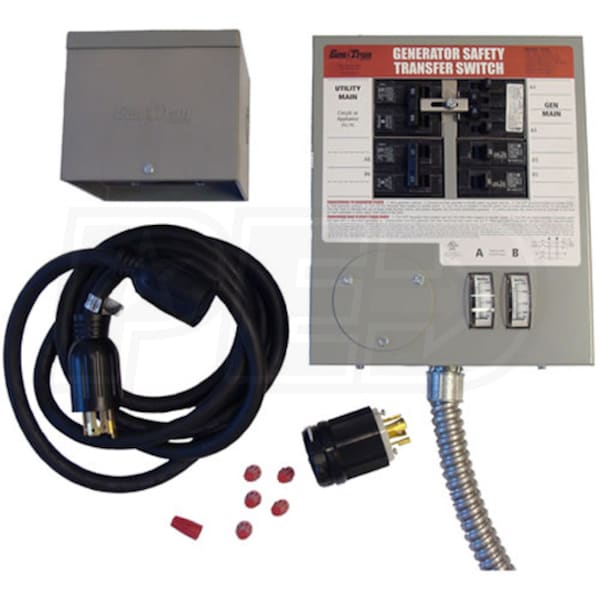

  • Kit Includes:
  • 30-Amp Manual Transfer Switch
  • 30-Amp Power Inlet Box
  • 10' 30-Amp (L14-30) Power Cord
  • 20-Amp (L14-20) Plug (For generators up to 5000 watts)
  • Wiring Harness & Connectors, Conduit and Fittings
  • 6 Total Circuits (Expandable to 10)
  • (2) 15-Amp 1-Pole
  • (2) 20-Amp 1-Pole
  • (1) 20-Amp 2-Pole
  • PLEASE NOTE - Requires 2-Pole 60-Amp Breaker in Main Load Center
  • 60-Amp Breaker Sold Separately
Specifications
Plugs
NEMA L14-20R
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA L14-20R
1
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Overview
Weight
20 Pounds
Product Length
9.25 Inches
Product Width
3.375 Inches
Product Height
11.125 Inches
UPC
696471064087
Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Prewired Manual Transfer Kit For 6-10 Circuits
  • Works with any portable generator up to 7500 watts
  • Versatile Connection
  • Includes 20-Amp (L14-20) plug for generators up to 5000 watts
  • Built-in Wattage Meter
  • Track power input to ensure proper load balancing
  • Kit Includes:
  • 30-Amp Manual Transfer Switch
  • 30-Amp Power Inlet Box
  • 10' 30-Amp (L14-30) Power Cord
  • 20-Amp (L14-20) Plug (For generators up to 5000 watts)
  • Wiring Harness & Connectors, Conduit and Fittings
  • 6 Total Circuits (Expandable to 10)
  • (2) 15-Amp 1-Pole
  • (2) 20-Amp 1-Pole
  • (1) 20-Amp 2-Pole
  • PLEASE NOTE - Requires 2-Pole 60-Amp Breaker in Main Load Center
  • 60-Amp Breaker Sold Separately
Specifications
Plugs
NEMA L14-20R
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA L14-20R
1
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Overview
Weight
20 Pounds
Product Length
9.25 Inches
Product Width
3.375 Inches
Product Height
11.125 Inches
UPC
696471064087
Product Specs
+
Specifications
Plugs
NEMA L14-20R
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA L14-20R
1
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Overview
Weight
20 Pounds
Product Length
9.25 Inches
Product Width
3.375 Inches
Product Height
11.125 Inches
UPC
696471064087
Reviews
(2)
+
Generac 6408 Reviews & Ratings
Product Q&A
(3)
+
Search Product Q&A's Answered by Mike, the Generator Expert
icon-social-fb1
+
Ref: 30216A As an electrical contractor we have use arc fault circuit breakers on certain loads. This creates a problem with the neutrals. Is there an alternate panel I could use? Thank, Keith
Keith Budka
from New York
January 01, 2014
Answer
The following switches accommodate GFCI and ARCH Fault circuit breakers to meet the latest NEC requirements.....

Model 6376

Model 6294

Model 6295

Model 6378

Model 6408

Model 6379
+
Jim I purchased a Generac xp8000e from you guys a few months ago.. I need a transfer switch for it now. Will this 6408 work with my generator or do I need a floating neutral kit and another type transfer switch. Thanks
Ted Verstraete
from New Jersey
September 06, 2013
Answer
Thanks for your inquiry!

While this Generac, 6408 kit will work if the switched neutral kit is installed, I would suggest a much easier avenue. Reliance Controls currently manufacturers switches that are engineered with an existing Switched Neutral mechanism. These switches eliminate much of the hassle associated with modifying panels such as Generacs.

Although these panels are not packaged with the inlet box or power cords, they are far more superior and convenient than the above referenced product.

You can find these products on our site referenced as the "X" series from Reliance Controls. They commonly have "GFI" within the title of the product. A good option for you would be the; XRC0603C
+
Josh, I am interested in the Gentran or Generac 6408 for use with a 5Kw generator. However I do not have anymore space for additional breakers on my 200amp service panel to accommodate the transfer switch which I understand installs like a sub-panel. I already have a separate sub-panel for my pool equipment. What do you suggest I do? Thanks
Ray D'Alessio
from Texas
August 28, 2013
Answer
Thank you for your inquiry!

As you know, when installing the Generac 6408 30-amp manual transfer switch, you will need to place a 2-pole circuit breaker into your existing circuit panel. Keep in mind that when this type of switch is installed, you will technically be moving the 6-10 circuits, which will receive generator power, from the main circuit panel over to the transfer switch. As such, this will free up a bit of space in your 200 amp main panel, and allow for the installation of that 2-pole circuit breaker.
