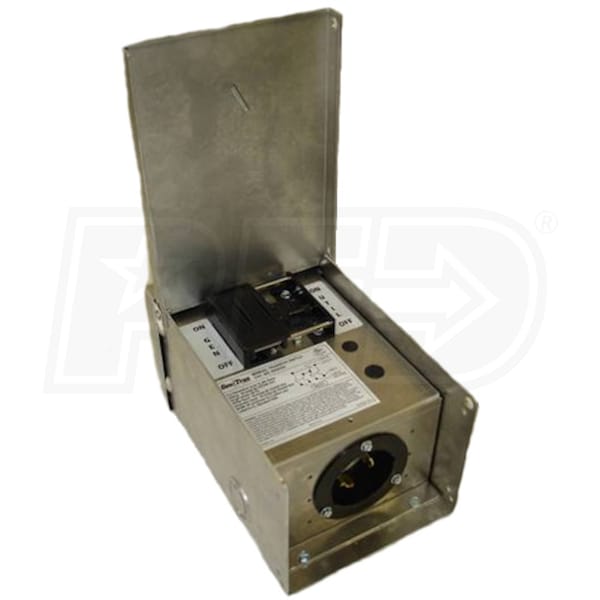

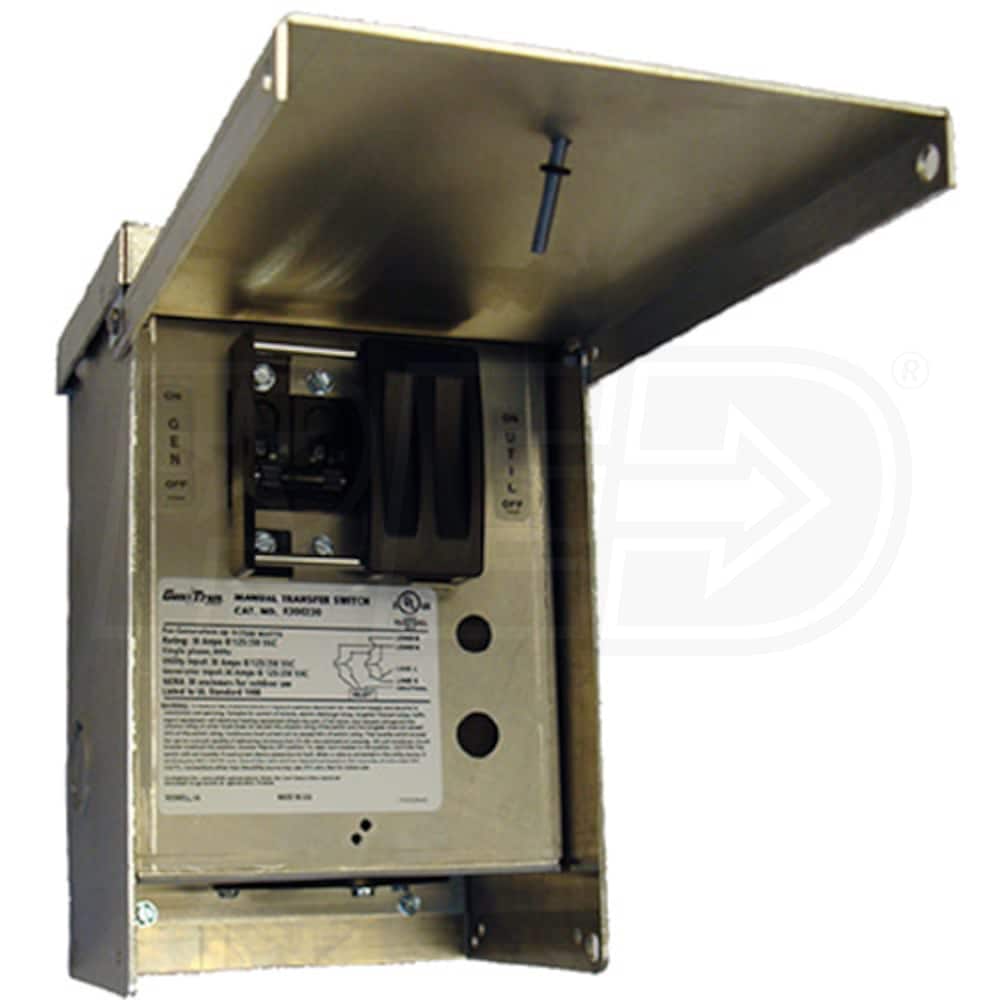

Generac 6377 - 30-Amp (120/240V 1-Circuit) Outdoor Manual Transfer Switch

Generac 6377 - 30-Amp (120/240V 1-Circuit) Outdoor Manual Transfer Switch
Our Price
Compare Prices
Shipping Info
Model: 6377
$185.99
Only 2 In-Stock
Ships Monday, Aug 19th

Learn More
Only 2 In-Stock
Ships Monday, Aug 19th
Shipping Info
Shipping Info
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Type
Manual
Amp Rating
NEMA L14-30R
Circuits
1
Enclosure
NEMA 3R
Type
Manual
Amp Rating
30
Circuits
1
Enclosure
NEMA 3R
Features
Features
  • 30-Amp (120/240V 1-Circuit) Outdoor Transfer Switch
  • Ideal for water heater, well pump or small air conditioner
  • NEMA 3R Rated Outdoor Aluminum Cabinet
  • Can be surface mounted outdoors next to the existing load center
  • Mechanically Interlocked Breakers (Gen/Utility)
  • Prevents circuit from being fed by utility & gen at the same time
  • L14-30 Outlet On Bottom Of Switch
  • Maintains a raintight connect when cord is connected
Specifications
Plugs
NEMA L14-30R
Overview
Made in USA
Yes
Weight
5 Pounds
Product Length
8.875 Inches
Product Width
6 Inches
Product Height
5.875 Inches
Consumer Warranty
2 Years
UPC
696471063776
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
1
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
30A 240V
1
Plugs
NEMA L14-30R
1
Type
Manual
Amp Rating
NEMA L14-30R
Circuits
1
Enclosure
NEMA 3R
Type
Manual
Amp Rating
30
Circuits
1
Enclosure
NEMA 3R
Features
Features
  • 30-Amp (120/240V 1-Circuit) Outdoor Transfer Switch
  • Ideal for water heater, well pump or small air conditioner
  • NEMA 3R Rated Outdoor Aluminum Cabinet
  • Can be surface mounted outdoors next to the existing load center
  • Mechanically Interlocked Breakers (Gen/Utility)
  • Prevents circuit from being fed by utility & gen at the same time
  • L14-30 Outlet On Bottom Of Switch
  • Maintains a raintight connect when cord is connected
Specifications
Plugs
NEMA L14-30R
Overview
Made in USA
Yes
Weight
5 Pounds
Product Length
8.875 Inches
Product Width
6 Inches
Product Height
5.875 Inches
Consumer Warranty
2 Years
UPC
696471063776
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
1
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
30A 240V
1
Plugs
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
NEMA L14-30R
Overview
Made in USA
Yes
Weight
5 Pounds
Product Length
8.875 Inches
Product Width
6 Inches
Product Height
5.875 Inches
Consumer Warranty
2 Years
UPC
696471063776
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
1
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
30A 240V
1
Plugs
NEMA L14-30R
1
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+−
can the Generac 6377 be used on RV 5500 cumin neon instead of an automatic transfer switch.
Manuel Hernandez
from California
June 26, 2016
Answer
I have heard of electricians wiring the RV units to a manual switch and would recommend checking with an electrician to see how this would be done.
