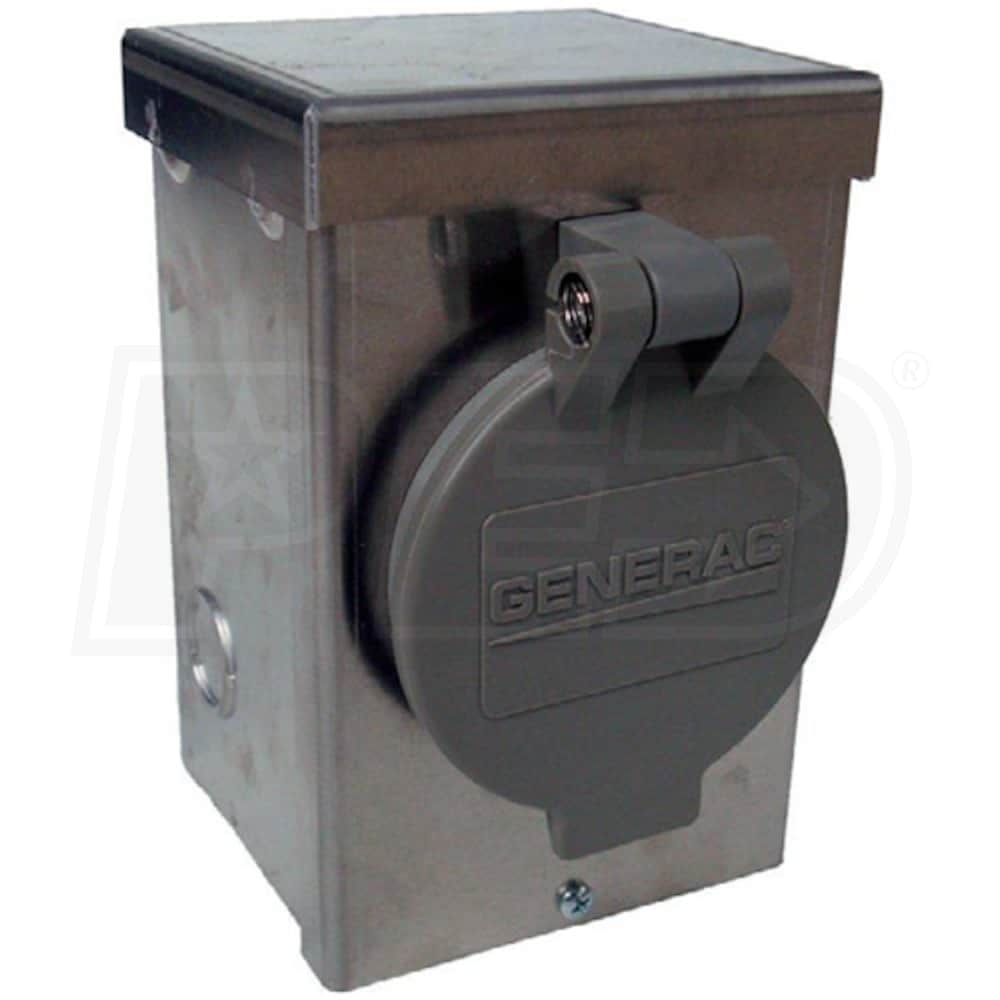

Generac 6347 - 50-Amp (Twistlock) Aluminum Power Inlet Box w/ Front Flip Lid

Generac 6347 - 50-Amp (Twistlock) Aluminum Power Inlet Box w/ Front Flip Lid
Model: 6347
$75.99
Ships in 4-7 Business Days
Tax-Free (Except IL)
No Sales Tax* (Except IL)$75.99Buy Now
Sales Tax Extra $75.99Visit Site
Ships in 4-7 Business Days
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Outdoor Connection
  • Plug your generator into an exterior wall outlet
  • Weather Resistant (NEMA 3R)
  • Weatherproof box can be painted to match exterior colors
  • Max Amps and Watts
  • 50-Amps @ 240V, Up to 12000 Watts
  • Front Flip Lid
  • Keeps out dirt, insects and moisture
  • UL Listed
  • Tested and certified to UL standards
  • Compatible Generac Generators
  • GP15000E, GP17500E, XG10000E, XP10000E
  • Compatible Transfer Switches Model #'s
  • 6380, 6381, 6335
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Plugs
CS6369 - 50-Amp Twistlock
1
Overview
Weight
3 Pounds
Product Length
6.5 Inches
Product Width
4.25 Inches
Product Height
4 Inches
Consumer Warranty
90 Days
UPC
696471063479
Features
Features
  • Outdoor Connection
  • Plug your generator into an exterior wall outlet
  • Weather Resistant (NEMA 3R)
  • Weatherproof box can be painted to match exterior colors
  • Max Amps and Watts
  • 50-Amps @ 240V, Up to 12000 Watts
  • Front Flip Lid
  • Keeps out dirt, insects and moisture
  • UL Listed
  • Tested and certified to UL standards
  • Compatible Generac Generators
  • GP15000E, GP17500E, XG10000E, XP10000E
  • Compatible Transfer Switches Model #'s
  • 6380, 6381, 6335
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Plugs
CS6369 - 50-Amp Twistlock
1
Overview
Weight
3 Pounds
Product Length
6.5 Inches
Product Width
4.25 Inches
Product Height
4 Inches
Consumer Warranty
90 Days
UPC
696471063479
Product Specs
+
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Plugs
CS6369 - 50-Amp Twistlock
1
Overview
Weight
3 Pounds
Product Length
6.5 Inches
Product Width
4.25 Inches
Product Height
4 Inches
Consumer Warranty
90 Days
UPC
696471063479
Reviews
(1)
+
Generac 6347 Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Mike, the Generator Expert
icon-social-fb1
+
Hi, I have a Generac XG10000E and want to change the box where my hot tub supply was to accept the 50amp Generac. I have (2) #6 wires plus a #6 ground. Will that work? Also, which box and outlet would you recommend as well as a generator cord. Thanks for your help, Jim
Jim
from Illinois
January 19, 2014
Answer
Thank you for your inquiry to Electric Generators Direct!

The Generac 50-amp power inlet box, model 6347 is designed to accept 2 hot leads, a ground and a neutral. It is not recommended to use this product without all of these connections securely made. Based on the information that you have provided, it sounds as though additional wiring will be required. We recommend consulting a licensed electrician for assistance with this endeavor. Also, a good recommendation for equipment which will be compatible with your XG10000E would be the 6296, 50-amp power transfer system.

50-Amp Power Transfer System
+
Generac 6347 - 50-Amp Power Inlet Box Will above mate with L14-30R extension cord? If not, pls. suggest another that will work well with #6 wiring to box.. Thanks, Frank
Frank Babiarz
from Florida
October 22, 2013
Answer
Thank you for your inquiry!

The Generac 6347 will not be compatible with an L14-30 connection. That connection type is specific to 30 amp, 4-prong equipment. We would recommend the Generac 6346, 30 amp power inlet box as a good substitute. You will find this product by following the link below...

6346 30-Amp Power Inlet Box
