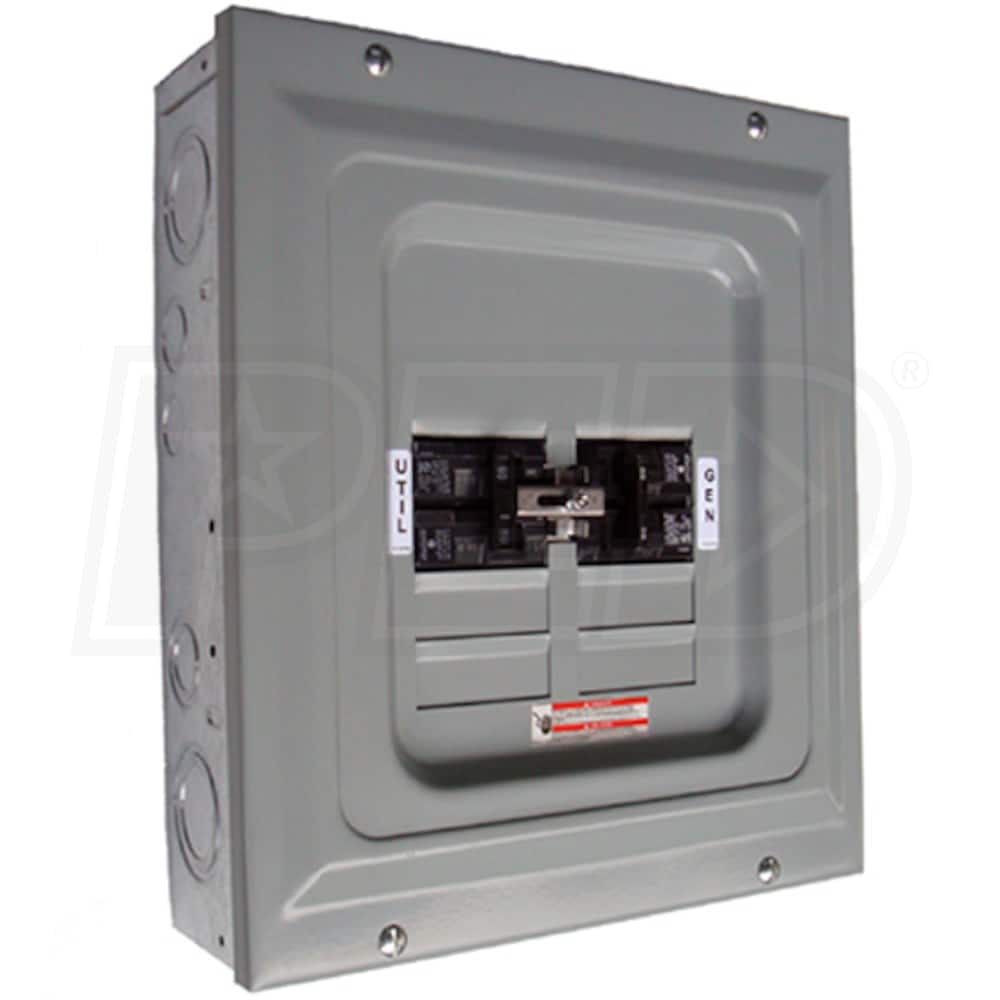

Generac 6334 - 100-Amp Single Load Indoor Manual Transfer Panel

Generac 6334 - 100-Amp Single Load Indoor Manual Transfer Panel
Model: 6334
$181.99
Only 2 In-Stock
Ships Tuesday, May 22nd
Tax-Free (Except IL)

Only 2 In-Stock
Ships Tuesday, May 22nd
Shipping Info
Shipping Info
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • 100-Amp Generator/100-Amp Utility Manual Transfer Switch
  • NEMA 1 cabinet designed for indoor use
  • Versatile Design (Service Entrance Rated)
  • Use as a main panel for a single load or to feed a sub-panel
  • Designed For Easy Installation
  • Hardwire to your generator or power inlet box
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
25000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
1
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
25000 Watts
Overview
Weight
10 Pounds
Product Length
11 Inches
Product Width
13 Inches
Product Height
14 Inches
Consumer Warranty
2 Years
UPC
696471063349
Features
Features
  • 100-Amp Generator/100-Amp Utility Manual Transfer Switch
  • NEMA 1 cabinet designed for indoor use
  • Versatile Design (Service Entrance Rated)
  • Use as a main panel for a single load or to feed a sub-panel
  • Designed For Easy Installation
  • Hardwire to your generator or power inlet box
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
25000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
1
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
25000 Watts
Overview
Weight
10 Pounds
Product Length
11 Inches
Product Width
13 Inches
Product Height
14 Inches
Consumer Warranty
2 Years
UPC
696471063349
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
25000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
1
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
25000 Watts
Overview
Weight
10 Pounds
Product Length
11 Inches
Product Width
13 Inches
Product Height
14 Inches
Consumer Warranty
2 Years
UPC
696471063349
Reviews
(2)
+
Generac 6334 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Mike, the Generator Expert
icon-social-fb1
+
We are looking for a panel with switch where we could have our sump pump, refrigerator, and furnace connected to our power supply however, if there is a outage, throw the switch and start our portable generator. Is this the right product or are we looking at the wrong thing?
Jim
from Illinois
October 03, 2013
Answer
Thank you for your interest in Electric Generators Direct!

The Generac, 6334 100-amp load center is designed to handle a single circuit rated up to 100 amps. In this regard, it would be suitable to provide power to those select items, should they all remain on the same circuit. If these circuits are separate, then you will need a transfer panel that contains at least as many circuits as you wish to support.

As a good substitute for this 100 amp panel, we would recommend one of the Reliance Controls, 100 Amp Transfer Panels
