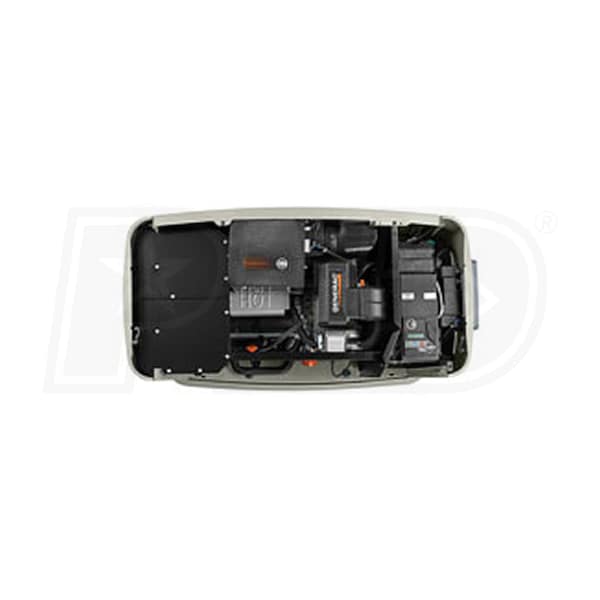

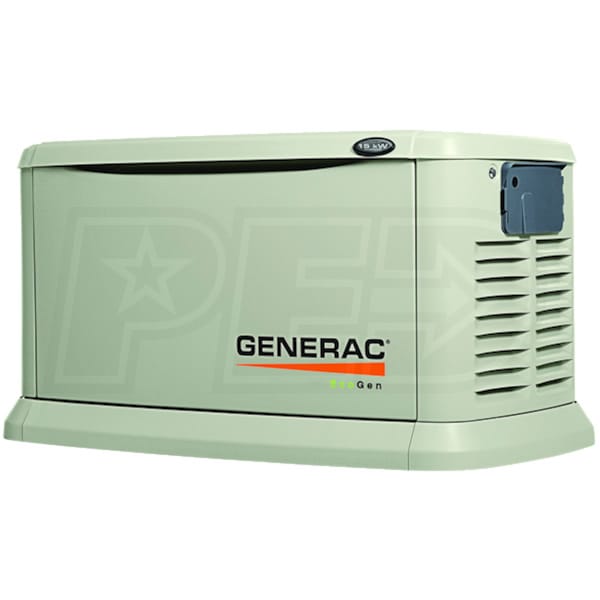

Generac EcoGen Series 6103 - 15kW Standby Generator for Off Grid Applications

Generac EcoGen Series 6103 - 15kW Standby Generator for Off Grid Applications
Model: 6103
Product Discontinued
Sorry, this product is no longer available.
There Is A Newer Model Of This Item
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, California, Hawaii, Massachusetts or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 5
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
15,000
Rated Watts
Voltage
240 Single-Phase
Fuel
Engine
Features
Features
  • Generac 15kW EcoGen Intended For Alternative Energy Interaction
  • Designed to interact w/ off-grid renewable energy applications
  • Capable of tying into an inverter & battery storage system

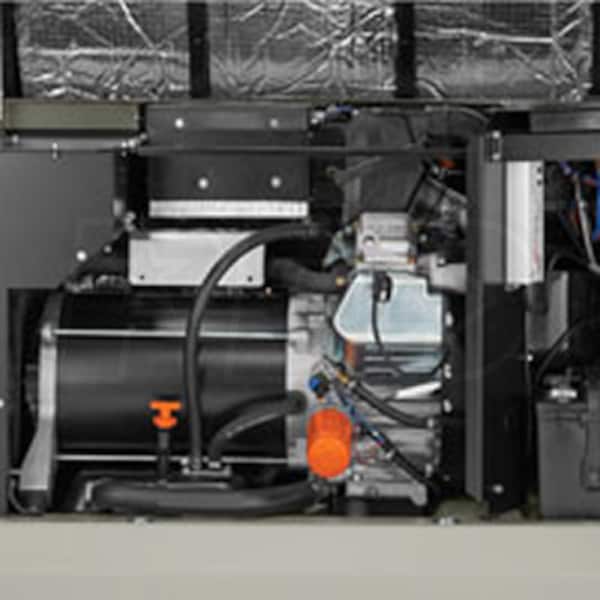

  • MUST BE TIED INTO AN ALTERNATIVE ENERGY SOURCE
  • Generac OHVI Air-Cooled Engine
  • Maximizes engine "breathing" for increased fuel efficiency
  • Plateau honed cylinder walls & plasma-moly rings run cooler
  • Exclusive Premium Oil Recovery & Circulation System
  • Provides extended run capability, 500 hours between oil changes
  • Evolution™ Digital Controller Monitors & Controls All Functions
  • Provides system status - compatible with Nexus™ wireless monitors
  • G-Flex™ Variable Speed Technology (2700-3600 RPM)
  • Changes RPM based on electric demand
  • Quieter operation, better fuel economy & less than 2% THD
  • Weather Protective Aluminum Enclosure (150 MPH Rated)
  • Epoxy paint for added durability; Easy Maintenance access
  • Two-Wire Start - Easily Connect To The Inverter Control Wires
  • Automatically start/stop the generator for battery charging
  • Factory Wired 240V - Accommodates 240V inverter systems
  • 3 Year/2000 Hour Limited Warranty (VOID if installed in CA)
Specifications
Engine
Engine Brand
Generac OHVI
CC
999 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
240 Single-Phase
Frequency
60 Hertz
Surge Watts
15000 Watts
Rated Watts
15000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
15000 Watts
LP Power Capacity
15000 Watts
NG Fuel Consumption @ 50% Load
134 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
1.32 gallons/hr
LP Fuel Consumption @ 100% Load
2.87 gallons/hr
Decibel Rating @ 7m
63 dbA
Transfer Switch
Not Applicable
Enclosure
Aluminum
Battery
Not Included (525 CCA)
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
536 Pounds
Product Style
Standby Generator
Product Length
48.3 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
3 Years
UPC
696471061031
