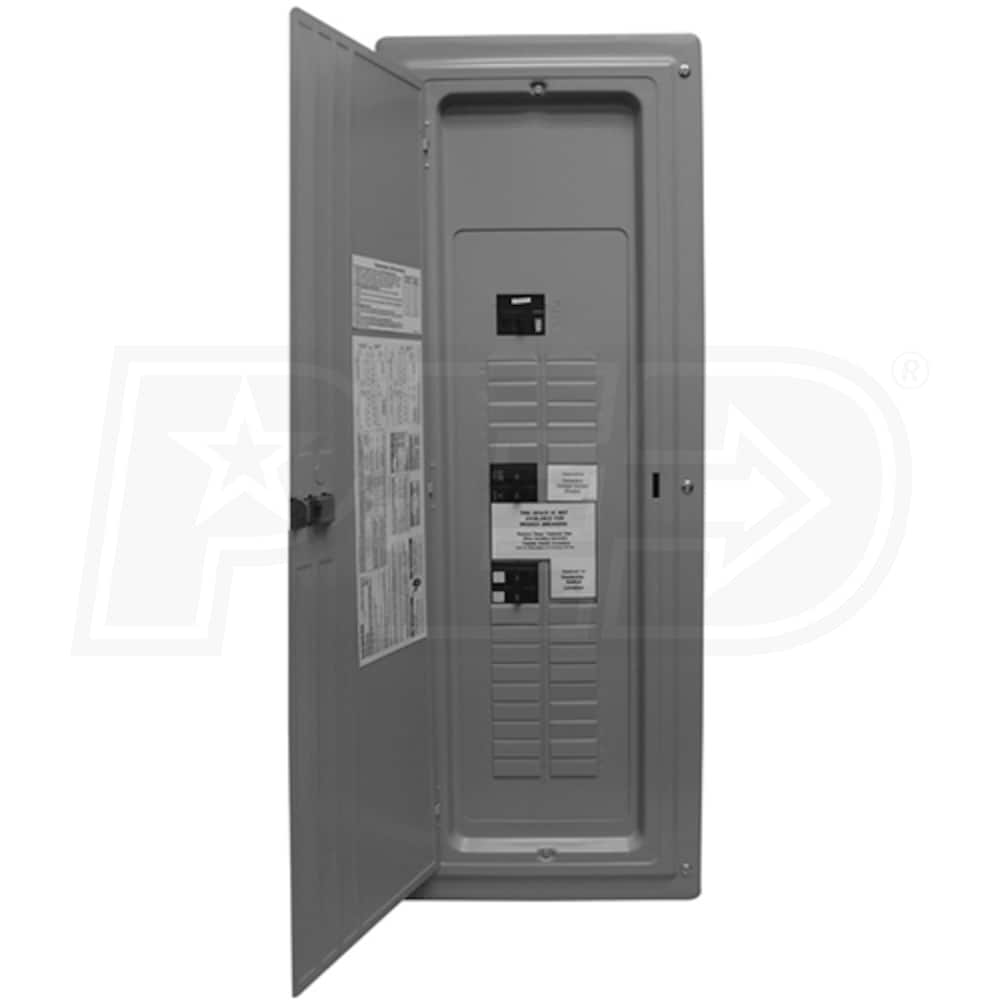

Generac GenReady 200-Amp Indoor Basic Load Center

Generac GenReady 200-Amp Indoor Basic Load Center
Model: 5448
$213.00
Ships in 2-5 Business Days
Tax-Free (Except IL)

No Sales Tax* (Except IL)$213.00Buy Now

(as of 06:52 CST - Details) Sales Tax Extra $229.99Visit Site
Sales Tax Extra $213.00Visit Site
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Generator Ready
  • Makes a home ready for a home standby generator
  • Ideal during new construction or major electrical retrofit
  • Hybrid Panel
  • Operates as a normal load center
  • Provides seamless integration of standby generators via EZ Switch
  • EZ Switch (Sold Separately)
  • 200-Amp Main Load Center
  • Dimensions are the same as a standard main load center
  • 125A Circuit Breaker & 125A Lower Panel Circuit Switch
  • Compatibility
  • Designed for Guardian air-cooled and liquid-cooled generators
  • Will NOT work with other standby generator brands
  • Single panels are compatible with generators up to 125A/30 kW
  • Single generators can support multiple GenReady load centers
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
30000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 1R
Max Utility Input
200 Amps
Max Generator Input
125 Amps
Maximum Wattage
30000 Watts
UL Listed
Yes
Overview
Weight
45.5 Pounds
Product Length
43.25 Inches
Product Width
15.63 Inches
Product Height
4 Inches
UPC
696471054484


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Generator Ready
  • Makes a home ready for a home standby generator
  • Ideal during new construction or major electrical retrofit
  • Hybrid Panel
  • Operates as a normal load center
  • Provides seamless integration of standby generators via EZ Switch
  • EZ Switch (Sold Separately)
  • 200-Amp Main Load Center
  • Dimensions are the same as a standard main load center
  • 125A Circuit Breaker & 125A Lower Panel Circuit Switch
  • Compatibility
  • Designed for Guardian air-cooled and liquid-cooled generators
  • Will NOT work with other standby generator brands
  • Single panels are compatible with generators up to 125A/30 kW
  • Single generators can support multiple GenReady load centers
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
30000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 1R
Max Utility Input
200 Amps
Max Generator Input
125 Amps
Maximum Wattage
30000 Watts
UL Listed
Yes
Overview
Weight
45.5 Pounds
Product Length
43.25 Inches
Product Width
15.63 Inches
Product Height
4 Inches
UPC
696471054484
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
30000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 1R
Max Utility Input
200 Amps
Max Generator Input
125 Amps
Maximum Wattage
30000 Watts
UL Listed
Yes
Overview
Weight
45.5 Pounds
Product Length
43.25 Inches
Product Width
15.63 Inches
Product Height
4 Inches
UPC
696471054484
Reviews
+
This product has no reviews.
Be the first to voice your opinion on this Generac product.
Product Q&A
(2)
+
I am wondering how much the EZ switch is to put in the Generator ready basic load center? I could not find it on your web site. Also would it be ok to get the gen ready panel with the transfer switch if you don't have a generator yet?
Chris Dahl
from Illinois
October 24, 2013
Read Response +
Answer
Thank you for your inquiry!


The Generac GenReady, 200-Amp Load Center, model 5448, will be able to supporting your application prior to the generator install. The device acts as a traditional circuit panel, but with the ability to function as a transfer panel as well.

The Generac GenReady EZ Transfer Operator Field Installation Kit can be added long after the GenReady Load Center is in place. You will be able to find the EZ Operator Field Kit by following the link provided below. We currently offer this product for $229.99.

Generac GenReady EZ Transfer Operator Field Installation Kit
Hide Response -
What is the compatibility issue about? Could you elaborate, please?
Joseph McCabe
from New Jersey
May 15, 2012
Read Response +
Answer
It stems mainly from the point that Generac switches are only compatible with Generac generators. Generac switches contain no line sensing logic, the auto start/stop functionality resides in the generator controller. The switch above, the GenReady panel variety, is simply a panelboard load center that allows for the installation of a transfer mechanism. Most people buy this switch as a emergency circuit (read as a sub-panel) to install at time of new construction. Later down the road when you wish to install a generator you can simply add the transfer accessory kit and wire to a Generac generator.

This panelboard is also available as the Advanced GenReady Load Center panel/switch which comes with the transfer mechanism for instant use with a Generac system.

If you have further questions about compatibility, please give us a call - we would be glad to walk you through it in more detail.
Hide Response -
