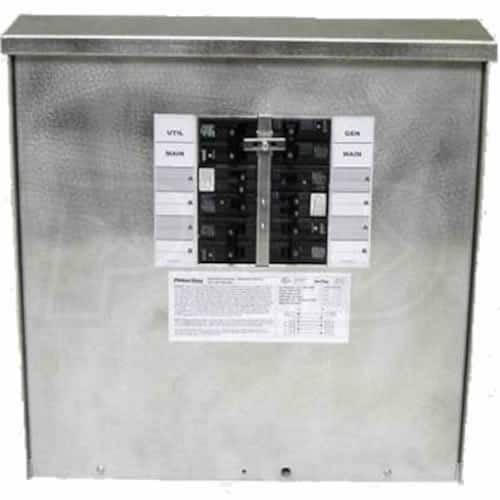

Gen-Tran 50-Amp (12-Circuit) Outdoor Manual Transfer Switch

Gen-Tran 50-Amp (12-Circuit) Outdoor Manual Transfer Switch
Model: R501210
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Manual
Amp Rating
CS6369 (50-Amp Twistlock)
Circuits
16
Enclosure
NEMA 3R
Type
Manual
Amp Rating
50
Circuits
16
?>
Enclosure
NEMA 3R
Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet
  • Aluminum Enclosure
  • Durable corrosion and rust resistant exterior
  • 12 Total Circuits (Expandable to 16)
  • Three 1-Pole @ 15 Amps
  • Three 1-Pole @ 20 Amps
  • One 2-Pole @ 20 Amps
  • One 2-Pole @ 30 Amps
  • One 2-Pole @ 50 Amps
  • Required 100Amp 2-pole Main Breaker in Load Center
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6369 - 50-Amp Twistlock
1
Overview
Made in USA
Yes
Weight
30 Pounds
Product Length
18 Inches
Product Width
18 Inches
Product Height
4 Inches
Consumer Warranty
2 Years
Type
Manual
Amp Rating
CS6369 (50-Amp Twistlock)
Circuits
16
Enclosure
NEMA 3R
Type
Manual
Amp Rating
50
Circuits
16
?>
Enclosure
NEMA 3R
