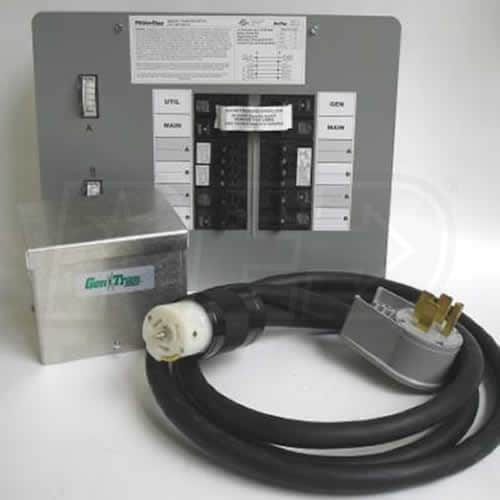

Gen-Tran 50-Amp Power Transfer System (25' w/ Straight Blade)

Gen-Tran 50-Amp Power Transfer System (25' w/ Straight Blade)
Model: KIT50-25SB
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • 1
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Everything But the Electrician
  • 50-amp transfer switch, power inlet box and 25 ft. cord
  • Energize Hardwired Appliances
  • Supplies electricity to furnance fans and interior lights
  • 12 Total Circuits (Expandable to 16 Circuits)
  • Three 1-Pole @ 15 Amps
  • Three 1-Pole @ 20 Amps
  • One 2-Pole @ 20 Amps
  • One 2-Pole @ 30 Amps
  • One 2-Pole @ 50 Amps
  • Required 100Amp 2-pole Main Breaker in Load Center
  • Inlet Box Flip Lid (sold separately) Model: FLPIB
Specifications
Plugs
NEMA 14-50R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
No
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Wire Gauge
6 Gauge
Overview
Made in USA
Yes
Weight
53 Pounds
Product Length
11.5 Inches
Product Width
14.5 Inches
Product Height
3.5 Inches
Consumer Warranty
2 Years
Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Everything But the Electrician
  • 50-amp transfer switch, power inlet box and 25 ft. cord
  • Energize Hardwired Appliances
  • Supplies electricity to furnance fans and interior lights
  • 12 Total Circuits (Expandable to 16 Circuits)
  • Three 1-Pole @ 15 Amps
  • Three 1-Pole @ 20 Amps
  • One 2-Pole @ 20 Amps
  • One 2-Pole @ 30 Amps
  • One 2-Pole @ 50 Amps
  • Required 100Amp 2-pole Main Breaker in Load Center
  • Inlet Box Flip Lid (sold separately) Model: FLPIB
Specifications
Plugs
NEMA 14-50R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
No
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Wire Gauge
6 Gauge
Overview
Made in USA
Yes
Weight
53 Pounds
Product Length
11.5 Inches
Product Width
14.5 Inches
Product Height
3.5 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Plugs
NEMA 14-50R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
No
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Wire Gauge
6 Gauge
Overview
Made in USA
Yes
Weight
53 Pounds
Product Length
11.5 Inches
Product Width
14.5 Inches
Product Height
3.5 Inches
Consumer Warranty
2 Years
Reviews
(1)
+
Gen-Tran KIT50-25SB Reviews & Ratings
Product Q&A
(2)
+
My main box is a Cutler-Hammer CH7DF, circa 1979. It has no "Main Breaker", just the normal collection of 15~30 amp breakers arranged in singles and pairs. I believe the typically available "manual transfer switches" may not work in this situation without adding a "Main" breaker to cut-off power going out to the line? Being accustomed to manual load management when under emergency power, I think all I might need is to have a MAIN breaker installed between the home's meter and my breaker box - IF it's also paired with a second breaker controlling the power-in from the generator (physically mirrored, so that one breaker must be OFF if the other is ON) . I know they exist, since we had one on the farm where I grew up. What's the name of such a beast, and are they "per code" now that I'm in the suburbs?
Phil Schaefer
from Washington
December 08, 2013
Read Response +
Answer
Thanks for the inquiry!

It seems as though you have a fair grasp on what is required to accomplish your task at hand. There are two separate devices in question here, one being the service disconnect switch, or breaker if you prefer. And the second would be the mechanical interlock device, or the "mirrored breakers" if you will.

Both are fairly common mechanisms that are often found in transfer panels and load centers, sometimes independently and other times they work together in a well functioning system, referred to as a manual transfer panel or load center. Although we carry the load centers and independent service disconnect panels, the interlock kit is not something that we sell alone. The code on the addition of this product to any panel varies drastically from one area to another. As such, some load centers have this interlock built-in and therefore tested to meet federal guidelines and UL standards. Once you have determined the amperage of the incoming utility service, you will then be able to find the right disconnect or load center to meet your needs;


Load Centers & Service Disconnect Panels

Remember that placement and use of both items is usually governed by code and therefore you will want to verify with the relevant electrical code officials before undergoing an installation.
Hide Response -
Ref: Generac Model 5735 We have a 200 AMP service and would like to use the 100 AMP manual transfer switch. Does the 100 AMP switch work the same way as the Kit50-25SB? Is the reason for the price difference the circuit breakers for the 100 AMP switch?
Ken McDaniel
from Louisiana
May 04, 2011
Read Response +
Answer
Yes, the TRC1005C operates the same as the Kit50-25SB except the Kit includes the breakers, power inlet box and power cord. All of these items would need to be purchased when selecting the TRC1005C.
Hide Response -
