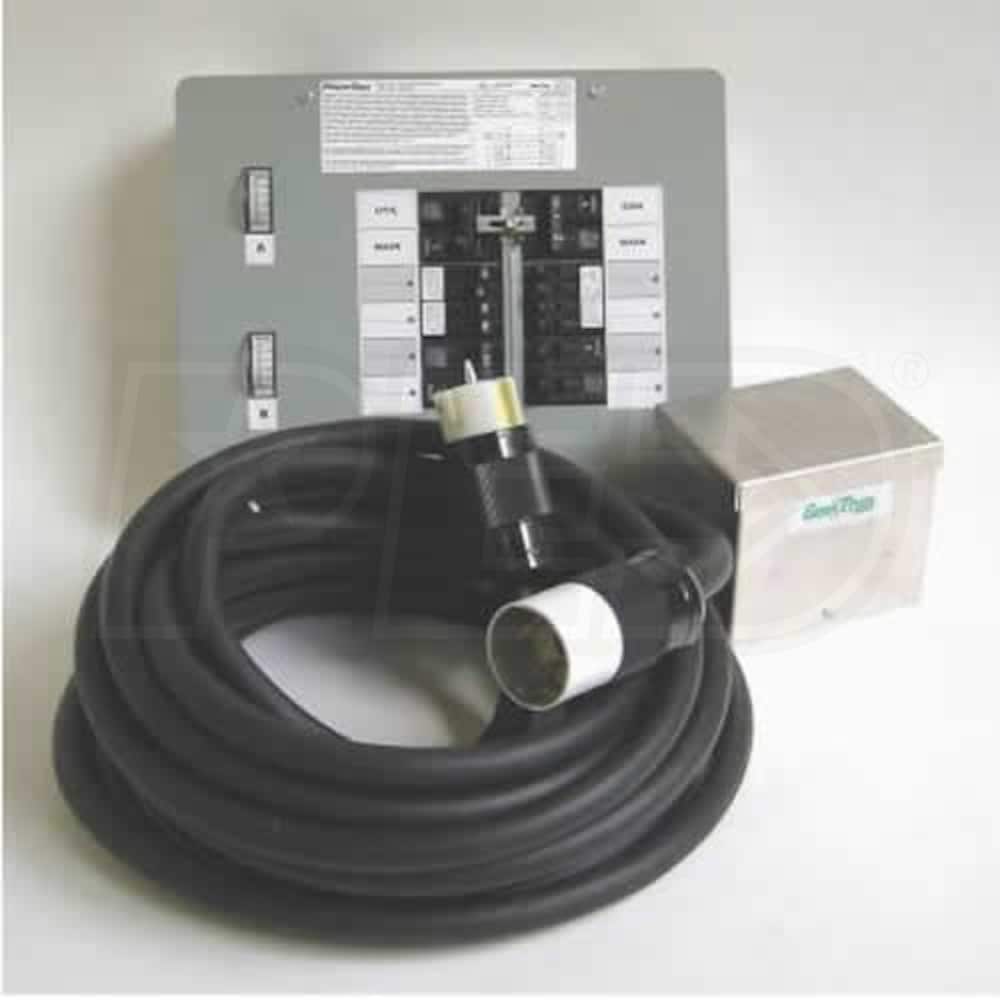

Gen-Tran 50-Amp Power Transfer System (25' Cord w/ Twistlock)

Gen-Tran 50-Amp Power Transfer System (25' Cord w/ Twistlock)
Our Price
Compare Prices
Shipping Info
Model: KIT50-25
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Everything But the Electrician
  • 50-amp transfer switch, power inlet box and 25 ft. cord
  • Energize Hardwired Appliances
  • Supplies electricity to furnance fans and interior lights
  • 12 Total Circuits (Expandable to 16)
  • Three 1-Pole @ 15 Amps
  • Three 1-Pole @ 20 Amps
  • One 2-Pole @ 20 Amps
  • One 2-Pole @ 30 Amps
  • One 2-Pole @ 50 Amps
  • Required 100Amp 2-pole Main Breaker in Load Center
  • Inlet Box Flip Lid (sold separately) Model: FLPIB
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
No
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Wire Gauge
6 Gauge
Overview
Made in USA
Yes
Weight
53 Pounds
Product Length
11.5 Inches
Product Width
14.5 Inches
Product Height
3.5 Inches
Consumer Warranty
2 Years
Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Everything But the Electrician
  • 50-amp transfer switch, power inlet box and 25 ft. cord
  • Energize Hardwired Appliances
  • Supplies electricity to furnance fans and interior lights
  • 12 Total Circuits (Expandable to 16)
  • Three 1-Pole @ 15 Amps
  • Three 1-Pole @ 20 Amps
  • One 2-Pole @ 20 Amps
  • One 2-Pole @ 30 Amps
  • One 2-Pole @ 50 Amps
  • Required 100Amp 2-pole Main Breaker in Load Center
  • Inlet Box Flip Lid (sold separately) Model: FLPIB
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
No
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Wire Gauge
6 Gauge
Overview
Made in USA
Yes
Weight
53 Pounds
Product Length
11.5 Inches
Product Width
14.5 Inches
Product Height
3.5 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
No
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Wire Gauge
6 Gauge
Overview
Made in USA
Yes
Weight
53 Pounds
Product Length
11.5 Inches
Product Width
14.5 Inches
Product Height
3.5 Inches
Consumer Warranty
2 Years
Reviews
(1)
+
Gen-Tran KIT50-25 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
What size wire should I use to connect the Gen-Tran 50-Amp Power Transfer System to my existing circuit box? I want to place the transfer box about 150 feet from the generator. I currently have a 7500 watt manual transfer bob and use a 5600 watt generator. I just purchased a 15000 watt generator from you for delivery today. I plan on using both the 30 AMP and 50 AMP plugs. Thanks
Bill Siddon
from Virginia
July 06, 2012
Answer
Bill, you got the right idea, but the wrong cord. The Generac 17500 watt portable generator has a special 50-amp plug with a straight blade. This kit has a twistlock instead.

You'll need to get this power transfer system instead:

http://www.electricgeneratorsdirect.com/Generac-6296/p8535.html
