Product Description
+−
Features
Features
- Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- Versatile Connection
- Allows hardwiring OR plug-in connection via power inlet
- Built-in Wattage Meter
- Track power input to ensure proper load balancing

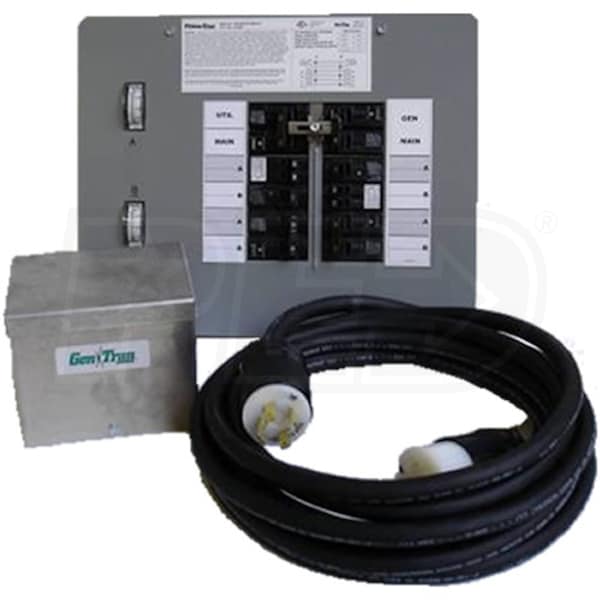

- Kit Includes
- 30-Amp Manual Transfer Switch
- 30-Amp Raintight Power Inlet Box
- 30-Amp (4-Prong 25-Foot) Power Cord
- 10 Total Circuits (Expandable to 16)
- Three 15-Amp Single Pole
- Three 20-Amp Single Pole
- One 20-Amp Double Pole
- One 30-Amp Double Pole
- Inlet Box Flip Lid (sold separately) Model: FLPIB
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
45 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Wire Gauge
10 Gauge
Features
Features
- Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- Versatile Connection
- Allows hardwiring OR plug-in connection via power inlet
- Built-in Wattage Meter
- Track power input to ensure proper load balancing
- Kit Includes
- 30-Amp Manual Transfer Switch
- 30-Amp Raintight Power Inlet Box
- 30-Amp (4-Prong 25-Foot) Power Cord
- 10 Total Circuits (Expandable to 16)
- Three 15-Amp Single Pole
- Three 20-Amp Single Pole
- One 20-Amp Double Pole
- One 30-Amp Double Pole
- Inlet Box Flip Lid (sold separately) Model: FLPIB
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
45 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Wire Gauge
10 Gauge
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
45 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Wire Gauge
10 Gauge
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
I purchased this system only to find out it is only interior use. I am looking for a exterior mount set up similar to this. Any suggestions.
