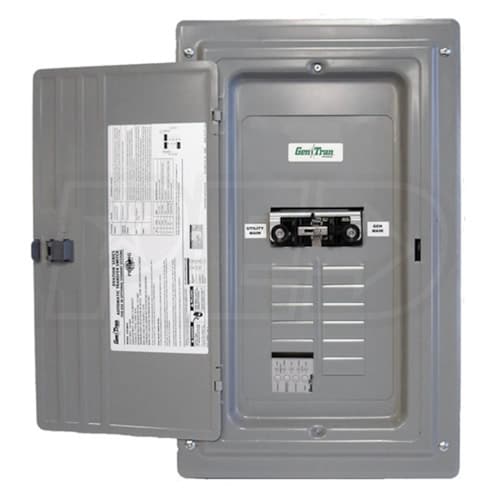

Gen-Tran 100-Amp Indoor Automatic Transfer Switch & Load Center

Gen-Tran 100-Amp Indoor Automatic Transfer Switch & Load Center
Model: ATS1001D
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Generator Ready
  • Makes a home ready for a home standby generator
  • Ideal during new construction or major electrical retrofit
  • Hybrid Design For Indoor Installation
  • Consolidates main load center and automatic transfer switch
  • Main Load Center
  • Accommodates up to 14 household circuits (Breakers Not Included)
  • Accepts interchangeable type branch circuit breakers
  • Also accepts Arc fault, GFCI and Surge Suppression breakers
  • Ovation Series 100-Amp Automatic Transfer Switch
  • Microprocessor-controlled and open transition
  • Circuit breaker-based switching with manual override
  • Programmable exerciser intervals
  • ATSRK Relay For Signaling Between Generator & ATS
  • Required for connection with most stationary generators
  • Accomodates PowerPause™ Load Management Modules
  • Up to 3 modules can be added (Sold Separately)
  • Manage up to 6 circuits to help avoid generator overload
  • Ability to run larger appliances when gen capacity is available
  • UL Listed
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
25000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
25000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Weight
31 Pounds
Product Length
24 Inches
Product Width
13.31 Inches
Product Height
3.93 Inches
Consumer Warranty
2 Years
Features
Features
  • Generator Ready
  • Makes a home ready for a home standby generator
  • Ideal during new construction or major electrical retrofit
  • Hybrid Design For Indoor Installation
  • Consolidates main load center and automatic transfer switch
  • Main Load Center
  • Accommodates up to 14 household circuits (Breakers Not Included)
  • Accepts interchangeable type branch circuit breakers
  • Also accepts Arc fault, GFCI and Surge Suppression breakers
  • Ovation Series 100-Amp Automatic Transfer Switch
  • Microprocessor-controlled and open transition
  • Circuit breaker-based switching with manual override
  • Programmable exerciser intervals
  • ATSRK Relay For Signaling Between Generator & ATS
  • Required for connection with most stationary generators
  • Accomodates PowerPause™ Load Management Modules
  • Up to 3 modules can be added (Sold Separately)
  • Manage up to 6 circuits to help avoid generator overload
  • Ability to run larger appliances when gen capacity is available
  • UL Listed
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
25000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
25000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Weight
31 Pounds
Product Length
24 Inches
Product Width
13.31 Inches
Product Height
3.93 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
25000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
25000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Weight
31 Pounds
Product Length
24 Inches
Product Width
13.31 Inches
Product Height
3.93 Inches
Consumer Warranty
2 Years
