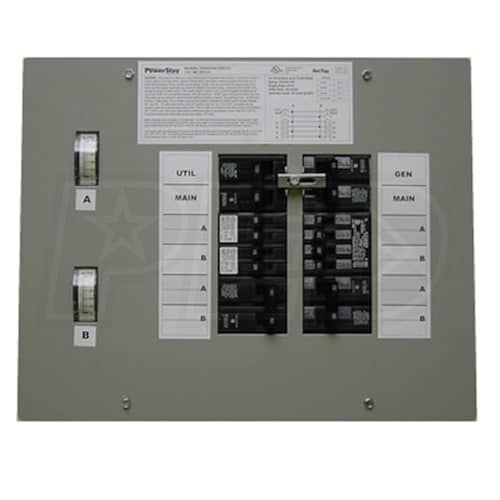

Gen-Tran 60-Amp (12-Circuit) Indoor Transfer Switch

• Product Description
• Specs
• Reviews
• How-To Articles
• Manuals

Type

Amp Rating

60

Circuits

16

Enclosure

Type

Manual

Amp Rating

60

Circuits

16

Enclosure

NEMA 1R

Features

Features

• Safest Way to Distribute Power
• Eliminates dangerous backfeeds and electrical overloads
• Built-in Wattage Meter
• Track power input to ensure proper load balancing
• Wiring Harness Included
• Wiring harness with 24" of flexible conduit allows hardwiring
• 12 Total Circuits (Expandable to 16)
• Three 1-Pole @ 15 Amps
• Three 1-Pole @ 20Amps
• One 2-Pole @ 20 Amps
• One 2-Pole @ 30 Amps
• One 2-Pole @ 50 Amps
• Required 100Amp 2-pole breaker in load center
• UL Listed breakers: Cutler,BR, Square D, HOM, and GE, THQL
• This unit accommodates hardwiring to generator or junction box

Specifications

Product Specs

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

15000 Watts

Rated Amps

60 Amps

Enclosure

NEMA 1R

Number of Circuit Breakers

16

Max Generator Input

60 Amps

Maximum Wattage

15000 Watts

UL Listed

Yes

Transfer Switch Circuits

15A 120V

3

20A 120V

3

20A 240V

1

30A 240V

1

50A 240V

1

Circuit Breaker Protection

Each Circuit

Overview

Made in USA

Yes

Weight

27 Pounds

Product Length

11.5 Inches

Product Width

14.5 Inches

Product Height

3.5 Inches

Consumer Warranty

2 Years

Type

Amp Rating

60

Circuits

16

Enclosure

Type

Manual

Amp Rating

60

Circuits

16

Enclosure

NEMA 1R

Features

Features

• Safest Way to Distribute Power
• Eliminates dangerous backfeeds and electrical overloads
• Built-in Wattage Meter
• Track power input to ensure proper load balancing
• Wiring Harness Included
• Wiring harness with 24" of flexible conduit allows hardwiring
• 12 Total Circuits (Expandable to 16)
• Three 1-Pole @ 15 Amps
• Three 1-Pole @ 20Amps
• One 2-Pole @ 20 Amps
• One 2-Pole @ 30 Amps
• One 2-Pole @ 50 Amps
• Required 100Amp 2-pole breaker in load center
• UL Listed breakers: Cutler,BR, Square D, HOM, and GE, THQL
• This unit accommodates hardwiring to generator or junction box

Specifications

Product Specs

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

15000 Watts

Rated Amps

60 Amps

Enclosure

NEMA 1R

Number of Circuit Breakers

16

Max Generator Input

60 Amps

Maximum Wattage

15000 Watts

UL Listed

Yes

Transfer Switch Circuits

15A 120V

3

20A 120V

3

20A 240V

1

30A 240V

1

50A 240V

1

Circuit Breaker Protection

Each Circuit

Overview

Made in USA

Yes

Weight

27 Pounds

Product Length

11.5 Inches

Product Width

14.5 Inches

Product Height

3.5 Inches

Consumer Warranty

2 Years
