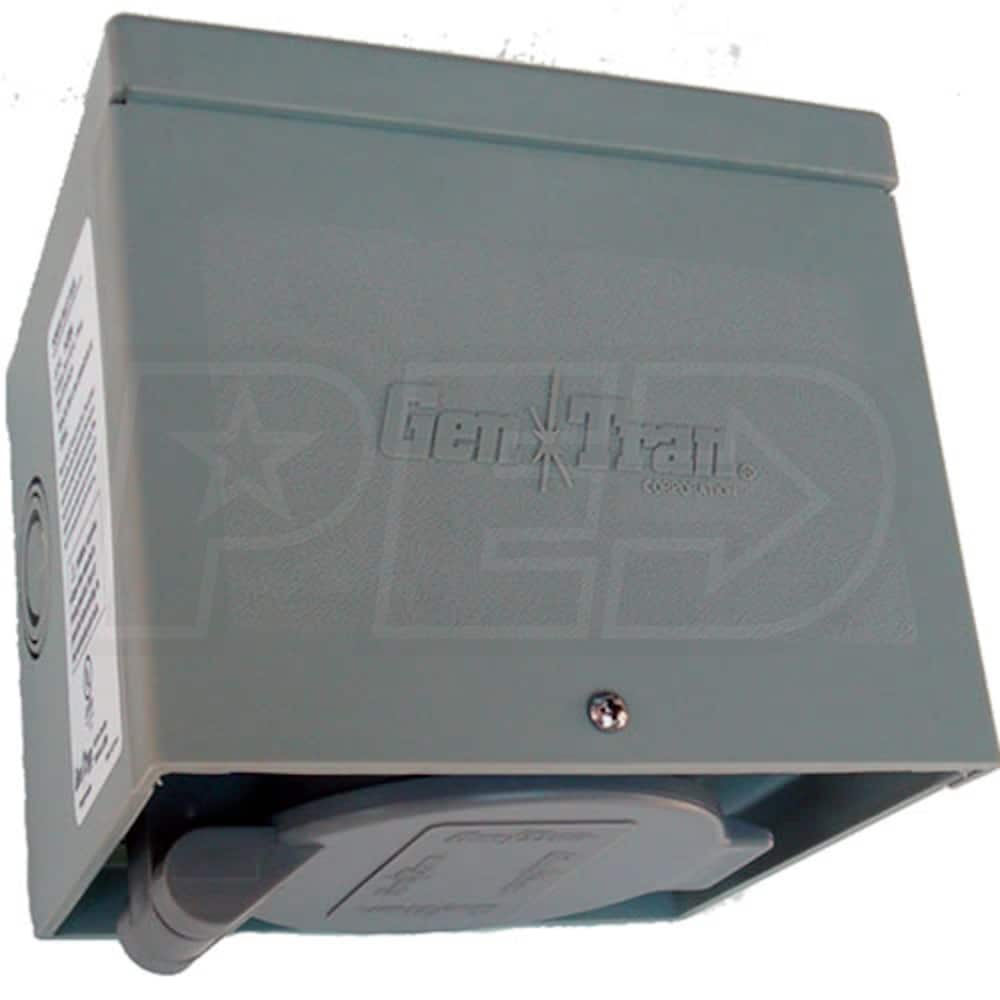

Gen-Tran 30-Amp (3-Prong) Non-Metallic Power Inlet Box w/ Flip Lid

Gen-Tran 30-Amp (3-Prong) Non-Metallic Power Inlet Box w/ Flip Lid
Our Price
Compare Prices
Shipping Info
Model: 53004
3.0 out of 53.0 out of 53.0 out of 53.0 out of 53.0 out of 5
Number of Reviews (1)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • 30-Amp Non-Metallic Power Inlet Box
  • Designed for generators up to 3700 watts
  • Durable, Glass-Filled Nylon NEMA 3R Enclosure
  • 30A 120V male inlet in NEMA configuration L5-30 on bottom
  • Flip-Up Lid Mounted on Bottom
  • Keeps out dirt, insects and moisture
  • Unit Maintains "Raintight" Rating When Cord Is Connected
  • Now required by most inspectors
  • 99 Cubic Inches Of Wiring Room
  • Enclosure contains 6 knockouts for ultimate wiring flexibility
  • UL Listed
  • Compatible w/ Transfer Switch Models 30116V & 300660
Specifications
Plugs
NEMA L5-30R
Overview
Weight
2 Pounds
Product Length
5 Inches
Product Width
6 Inches
Product Height
5 Inches
Consumer Warranty
2 Years
UPC
764260530041
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Rated Watts
3750 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Maximum Wattage
3750 Watts
UL Listed
Yes
Plugs
NEMA L5-30R
1
Features
Features
  • 30-Amp Non-Metallic Power Inlet Box
  • Designed for generators up to 3700 watts
  • Durable, Glass-Filled Nylon NEMA 3R Enclosure
  • 30A 120V male inlet in NEMA configuration L5-30 on bottom
  • Flip-Up Lid Mounted on Bottom
  • Keeps out dirt, insects and moisture
  • Unit Maintains "Raintight" Rating When Cord Is Connected
  • Now required by most inspectors
  • 99 Cubic Inches Of Wiring Room
  • Enclosure contains 6 knockouts for ultimate wiring flexibility
  • UL Listed
  • Compatible w/ Transfer Switch Models 30116V & 300660
Specifications
Plugs
NEMA L5-30R
Overview
Weight
2 Pounds
Product Length
5 Inches
Product Width
6 Inches
Product Height
5 Inches
Consumer Warranty
2 Years
UPC
764260530041
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Rated Watts
3750 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Maximum Wattage
3750 Watts
UL Listed
Yes
Plugs
NEMA L5-30R
1
Product Specs
+
Specifications
Plugs
NEMA L5-30R
Overview
Weight
2 Pounds
Product Length
5 Inches
Product Width
6 Inches
Product Height
5 Inches
Consumer Warranty
2 Years
UPC
764260530041
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Rated Watts
3750 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Maximum Wattage
3750 Watts
UL Listed
Yes
Plugs
NEMA L5-30R
1
Reviews
(1)
+
Gen-Tran 53004 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
My generator -Honda eu3000is - has all 120v outputs. Will the Gen Tran 2026 switch wire correctly for 120 v input.
Crispin Massay
from Alaska
January 18, 2011
Answer
According to the specifications for your Honda eu3000is, it has a 30A 125V twist lock receptacle which can accommodate a larger transfer switch. It is recommended to to upgrade to the Gen-Tran 30-Amp model instead and then use a 30A Power Inlet Box that matches the twist lock connection you have on your unit. Gen-Tran 30-Amp 3028

You will also need a proper Power Inlet Box Gen-Tran 30-Amp 53004
