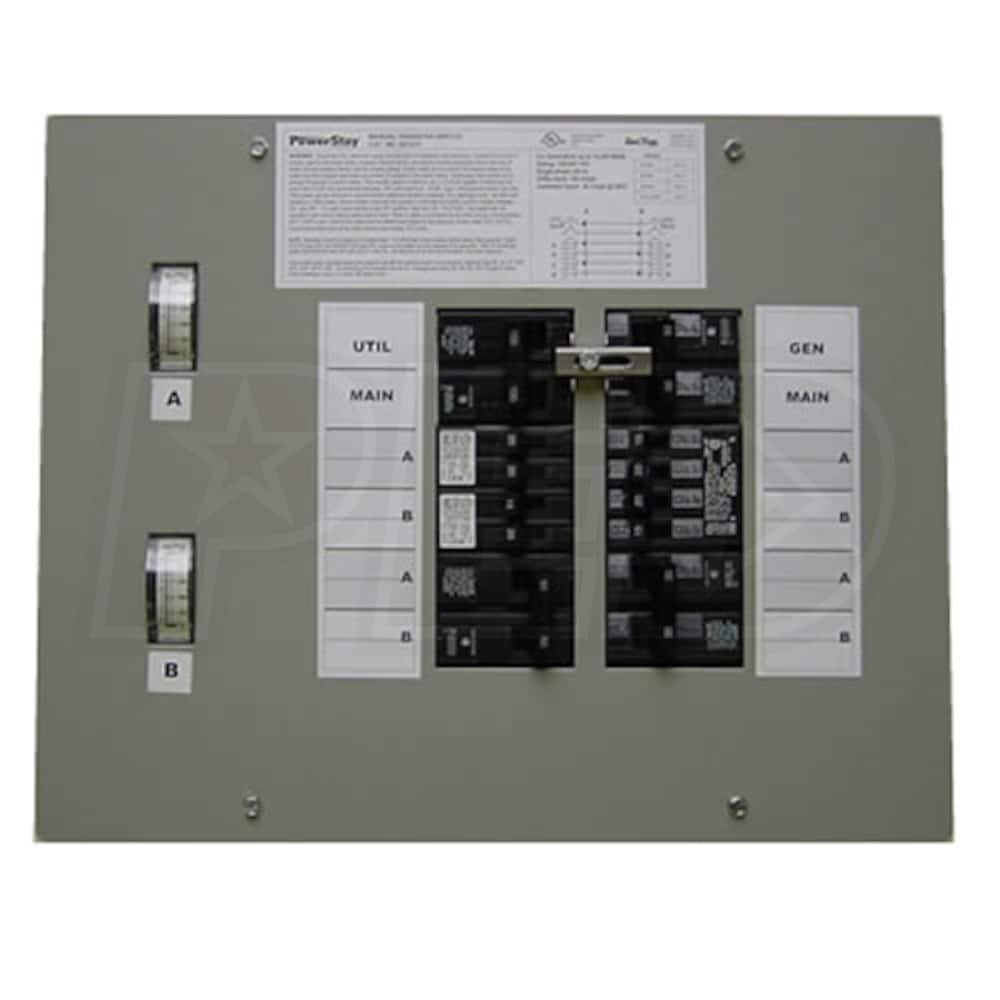

Gen-Tran 50-Amp (12-Circuit) Indoor Manual Transfer Switch

Gen-Tran 50-Amp (12-Circuit) Indoor Manual Transfer Switch
Our Price
Compare Prices
Shipping Info
Model: 501210
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews (1)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Manual
Amp Rating
CS6369 (50-Amp Twistlock)
Circuits
16
Enclosure
NEMA 1R
Type
Manual
Amp Rating
50
Circuits
16
Enclosure
NEMA 1R
Features
Features
    Specifications
    Plugs
    CS6369 (50-Amp Twistlock)
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    12500 Watts
    Rated Amps
    50 Amps
    Enclosure
    NEMA 1R
    Number of Circuit Breakers
    16
    Max Generator Input
    50 Amps
    Maximum Wattage
    12500 Watts
    UL Listed
    Yes
    Overview
    Weight
    27 Pounds
    Made in USA
    Yes
    Consumer Warranty
    2 Years
    Product Length
    11.5 Inches
    Product Width
    14.5 Inches
    Product Height
    3.5 Inches
    Transfer Switch Circuits
    15A 120V
    3
    20A 120V
    3
    20A 240V
    1
    30A 240V
    1
    50A 240V
    1
    Circuit Breaker Protection
    Each Circuit
    Plugs
    CS6369 - 50-Amp Twistlock
    1
    Type
    Manual
    Amp Rating
    CS6369 (50-Amp Twistlock)
    Circuits
    16
    Enclosure
    NEMA 1R
    Type
    Manual
    Amp Rating
    50
    Circuits
    16
    Enclosure
    NEMA 1R
    Features
    Features
      Specifications
      Plugs
      CS6369 (50-Amp Twistlock)
      Product Specs
      Voltage
      120/240 Single-Phase
      Frequency
      60 Hertz
      Rated Watts
      12500 Watts
      Rated Amps
      50 Amps
      Enclosure
      NEMA 1R
      Number of Circuit Breakers
      16
      Max Generator Input
      50 Amps
      Maximum Wattage
      12500 Watts
      UL Listed
      Yes
      Overview
      Weight
      27 Pounds
      Made in USA
      Yes
      Consumer Warranty
      2 Years
      Product Length
      11.5 Inches
      Product Width
      14.5 Inches
      Product Height
      3.5 Inches
      Transfer Switch Circuits
      15A 120V
      3
      20A 120V
      3
      20A 240V
      1
      30A 240V
      1
      50A 240V
      1
      Circuit Breaker Protection
      Each Circuit
      Plugs
      CS6369 - 50-Amp Twistlock
      1
      Product Specs
      +
      Specifications
      Plugs
      CS6369 (50-Amp Twistlock)
      Product Specs
      Voltage
      120/240 Single-Phase
      Frequency
      60 Hertz
      Rated Watts
      12500 Watts
      Rated Amps
      50 Amps
      Enclosure
      NEMA 1R
      Number of Circuit Breakers
      16
      Max Generator Input
      50 Amps
      Maximum Wattage
      12500 Watts
      UL Listed
      Yes
      Overview
      Weight
      27 Pounds
      Made in USA
      Yes
      Consumer Warranty
      2 Years
      Product Length
      11.5 Inches
      Product Width
      14.5 Inches
      Product Height
      3.5 Inches
      Transfer Switch Circuits
      15A 120V
      3
      20A 120V
      3
      20A 240V
      1
      30A 240V
      1
      50A 240V
      1
      Circuit Breaker Protection
      Each Circuit
      Plugs
      CS6369 - 50-Amp Twistlock
      1
      Reviews
      (1)
      +
      Gen-Tran 501210 Reviews & Ratings
      Product Q&A
      (3)
      +
      Search Product Q&A's Answered by Jared, the Generator Expert
      icon-social-fb1
      +
      Hi Jim. I am buying the Generac 17500 to handle 8 circuits in house on 15 to 20 amp 120 breakers. I also want to run a 3 ton central air unit on 30-amp 220 breaker. The total wattage won't exceed 15,000 even with air. Does this setup meet my needs or do I need a separate transfer switch for the air?
      Gary Pica
      from Ohio
      July 06, 2012
      Answer
      Gary, you're close. The transfer switch is a good choice. You also need the appropriate power cord and power inlet box to connect everything together.

      We recommend this power transfer system for the Generac 17500 watt portable generator:

      http://www.electricgeneratorsdirect.com/Generac-6296/p8535.html
      +
      What does model 501210 (Gen-Tran 50A) come with to hook it up?
      Bill Cote
      from Massachusetts
      March 13, 2012
      Answer
      Features include:

      • Generator Main and Utility Main are mechanically interlocked preventing utility or generator power back feed.
      • Full branch circuit protection with Siemens® circuit breakers.
      • Dual watt meters help monitor and balance generator load, prolonging generator life.
      • Pre-Assembled wire harness for easy connection to the load center.

      Other Items Needed:

      • New 2-pole, 240V Breaker to mount in main load center – amperage to match utility breaker (see specifications Table I for Utility Main Breaker size – should be manufactured by same as Main load center).
      • Anchors and screws to mount switch to wall.
      • PVC cement (to secure connectors onto flexible conduit)
      • Additional wire connectors if switch is “hard-wired”. See Table 2 for correct size.
      • May need Arc-fault, GFCI or Surge protection circuit breakers. If Arc-fault, GFCI or Surge protection circuit breakers are used as the branch circuit protector in the main load center, they MUST be used in the manual transfer switch. See Table 3 for compatible breakers.
      • Power Inlet Box – for “hard-wired” installations.
      • Power Cord to connect generator to switch or power inlet box.
      +
      Just ordered a Generac GP 17500 watt from you. Can you advise what manual transfer switch is used with this model for maximum performance? Thank you!
      Tanya
      from Pennsylvania
      January 04, 2012
      Answer
      Any 50A manual transfer switch will give you a maximum of 12,500 watts which is the same for the generator you purchased. The Generac GP17500E has a 50A outlet for its largest output which provides a maximum wattage capability of 12,500 watts. (Amps x Volts = Watts).
