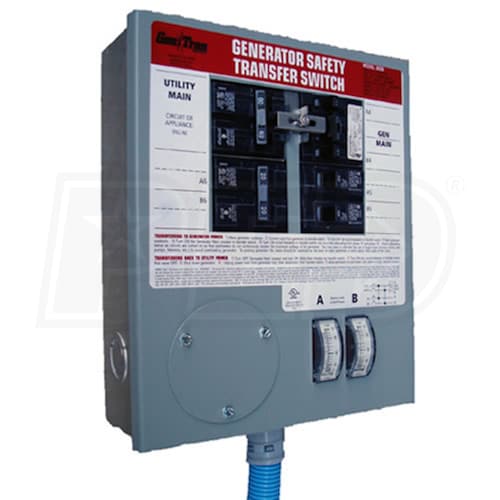

Gen-Tran 20-Amp (120/240V 6-Circuit) Prewired Manual Transfer Switch

Gen-Tran 20-Amp (120/240V 6-Circuit) Prewired Manual Transfer Switch
Our Price
Compare Prices
Shipping Info
Model: 2026
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Manual
Amp Rating
NEMA L14-20R
Circuits
10
Enclosure
NEMA 1R
Type
Manual
Amp Rating
20
Circuits
10
?>
Enclosure
NEMA 1R


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Easy Connection
  • Plug generator cord directly into transfer switch
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet
  • Built-in Wattage Meter
  • Track power input to ensure proper load balancing
  • 6 Total Circuits Included
  • 2@15A & 2@20A 1-Pole (120 Volts) & 1@20A 2-Pole (240 Volts)
  • Switch can accommodate 10-circuits for future expansion
  • Required 2-Pole, 60Amp breaker in existing load center
Specifications
Plugs
NEMA L14-20R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
5000 Watts
Rated Amps
20 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
20 Amps
Maximum Wattage
5000 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA L14-20R
1
Overview
Made in USA
Yes
Weight
14 Pounds
Product Length
9.25 Inches
Product Width
11.25 Inches
Product Height
3.38 Inches
Consumer Warranty
2 Years
Type
Manual
Amp Rating
NEMA L14-20R
Circuits
10
Enclosure
NEMA 1R
Type
Manual
Amp Rating
20
Circuits
10
?>
Enclosure
NEMA 1R


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Easy Connection
  • Plug generator cord directly into transfer switch
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet
  • Built-in Wattage Meter
  • Track power input to ensure proper load balancing
  • 6 Total Circuits Included
  • 2@15A & 2@20A 1-Pole (120 Volts) & 1@20A 2-Pole (240 Volts)
  • Switch can accommodate 10-circuits for future expansion
  • Required 2-Pole, 60Amp breaker in existing load center
Specifications
Plugs
NEMA L14-20R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
5000 Watts
Rated Amps
20 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
20 Amps
Maximum Wattage
5000 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA L14-20R
1
Overview
Made in USA
Yes
Weight
14 Pounds
Product Length
9.25 Inches
Product Width
11.25 Inches
Product Height
3.38 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Plugs
NEMA L14-20R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
5000 Watts
Rated Amps
20 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
20 Amps
Maximum Wattage
5000 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA L14-20R
1
Overview
Made in USA
Yes
Weight
14 Pounds
Product Length
9.25 Inches
Product Width
11.25 Inches
Product Height
3.38 Inches
Consumer Warranty
2 Years
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(2)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
I have a Coleman Powermate portable generator model pm0525312. I'm looking for a transfer switch that will work with this product. Also, an outside outlet and 50 ft power cord. I'm not sure about the # of circuits. Can you advise?
Gil Tucker
from Maryland
July 06, 2012
Answer
Gil, sounds like you have an older Coleman Powermate 5000 watt generator. You basically size your power transfer system based on the largest outlet on your generator. For example, if you have a 30-amp twistlock outlet, you need a 30-amp power transfer system.

This transfer switch works with 20-amp outlets. If your largest outlet on the generator is 20-amps, this switch will work. If you get a power inlet box, you won't need the 50-foot cord, which should save you some money.

You best bet, however, is to buy the complete kit. Here's where you can find them:

http://www.electricgeneratorsdirect.com/power/power-transfer-systems.html
+
My generator -Honda eu3000is - has all 120v outputs. Will the Gen Tran 2026 switch wire correctly for 120 v input.
Crispin Massay
from Alaska
January 18, 2011
Answer
According to the specifications for your Honda eu3000is, it has a 30A 125V twist lock receptacle which can accommodate a larger transfer switch. It is recommended to to upgrade to the Gen-Tran 30-Amp model instead and then use a 30A Power Inlet Box that matches the twist lock connection you have on your unit. Gen-Tran 30-Amp 3028

You will also need a proper Power Inlet Box Gen-Tran 30-Amp 53004
