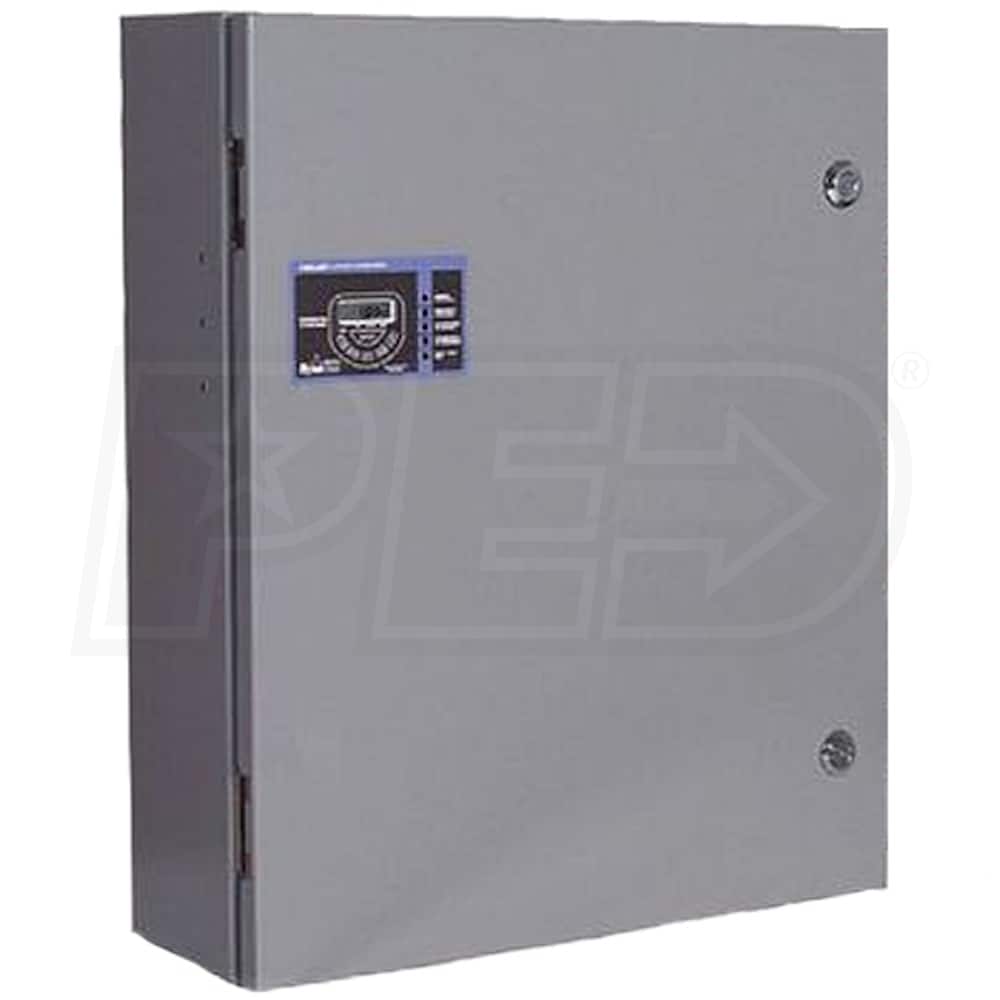

DynaGen Vigilant 100-Amp Indoor Automatic Transfer Switch

Model:

VTS2-0100-2-240-12-X-N1-LS

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
DynaGen Vigilant 100-Amp Indoor Automatic Transfer Switch
DynaGen Vigilant 100-Amp Indoor Automatic Transfer Switch
Model: VTS2-0100-2-240-12-X-N1-LS
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

100

Load Mgmt.

Voltage

120/240 Single-Phase

Enclosure

NEMA 1R

  • 100-Amp Vigilant Series Indoor Automatic Transfer Switch
  • Automatically transfers critical loads during an outage
  • Double Throw, Mechanically Interlocked Switch
  • Provides a rugged, contractor design for reliable switching
  • DynaGen's VTSC100 Logic Controller Board w/ Internal Test Switch
  • Designed to provide all basic transfer switch control functions
  • VTSC100 Controller Features
  • Powered from genset battery for isolation against line transients
  • Integrated voltage and frequency sensing
  • Adjustable transfer delays using on-board potentiometers
  • Fused remote start contact relays
  • Adjustable drop-out & pick-up values for voltage and frequency
  • Galvanized Indoor Enclosure
  • Provides 2x the life span of regular steel enclosures
  • Conformally Coated Controller Board
  • An effective barrier against moisture, fungus & contaminants
  • Operator Interface w/ External Access
  • Easy-to-use, 7-day exerciser, Accessible from outside the switch
  • No need to open the door to adjust clock or view switch status
  • ***2 Wire Start/Remote Start

Specifications

VTS2-0100-2-240-12-X-N1-LS
specs product image PID-9289
Overview
Weight
25 Pounds
Consumer Warranty
5 Years
Product Length
16 Inches
Product Width
14 Inches
Product Height
6 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 1R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
