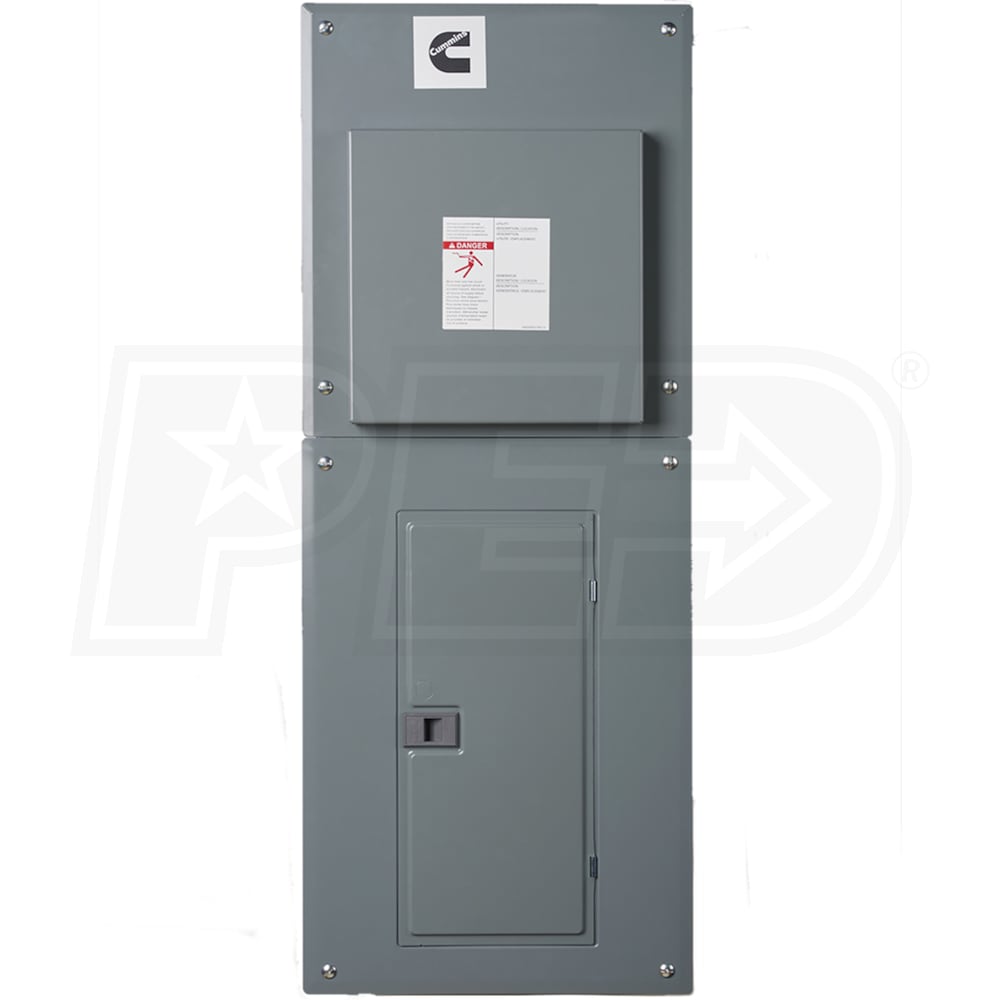

Cummins 100-Amp Indoor Automatic Transfer Switch w/ 20-Circuit Load Center For RS/RX Generators

Model:

A051C991

Write A Review
$645.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$108 / Month
Suggested monthly payments with 6 month financing.
Cummins 100-Amp Indoor Automatic Transfer Switch w/ 20-Circuit Load Center For RS/RX Generators
Cummins 100-Amp Indoor Automatic Transfer Switch w/ 20-Circuit Load Center For RS/RX Generators
Model: A051C991
$645.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Load Center

Amp Rating

100

Circuits

20

Voltage

120/240 Single-Phase

Enclosure

NEMA 1R

  • Cummins RS Series 100-Amp Automatic Transfer Switch
  • Designed for Cummins RS & RX Series generators (up to 24kW)
  • Integrated Load Center For Essential Circuit Backup
  • For large main service & only partial generator backup
  • 20-Circuit Breaker Panel (Breakers Not Included)
  • Square D, QO series breaker compatible
  • Expandable to 24-Circuits
  • Compatible with up to 4 tandem breakers
  • Versatile Design
  • For standby systems in residential & light commercial applications
  • Fully-Automatic - Monitors Utility Power 24/7
  • When utility power becomes unsatisfactory or fails
  • Genset is signaled to start & then automatically transfers load
  • When power returns load is shifted back to utility power
  • NEMA 1R (Indoor) Steel Enclosure
  • Give you the flexibility to install inside or outside the home
  • Mechanically Interlocked Contactor
  • Long life, silver alloy contact resists burning & pitting
  • Powerful and economical solenoid drives the mechanism
  • Ease Of Connection
  • Solderless screw type terminals for external power connections
  • Rated at 100-Amps @ 240-Volts
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A051C991
specs product image PID-110631
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
33 Pounds
Consumer Warranty
1 Year
Product Length
24 Inches
Product Width
17 Inches
Product Height
7.4 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
20
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Required
ATS Load Shedding
Not Required
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
