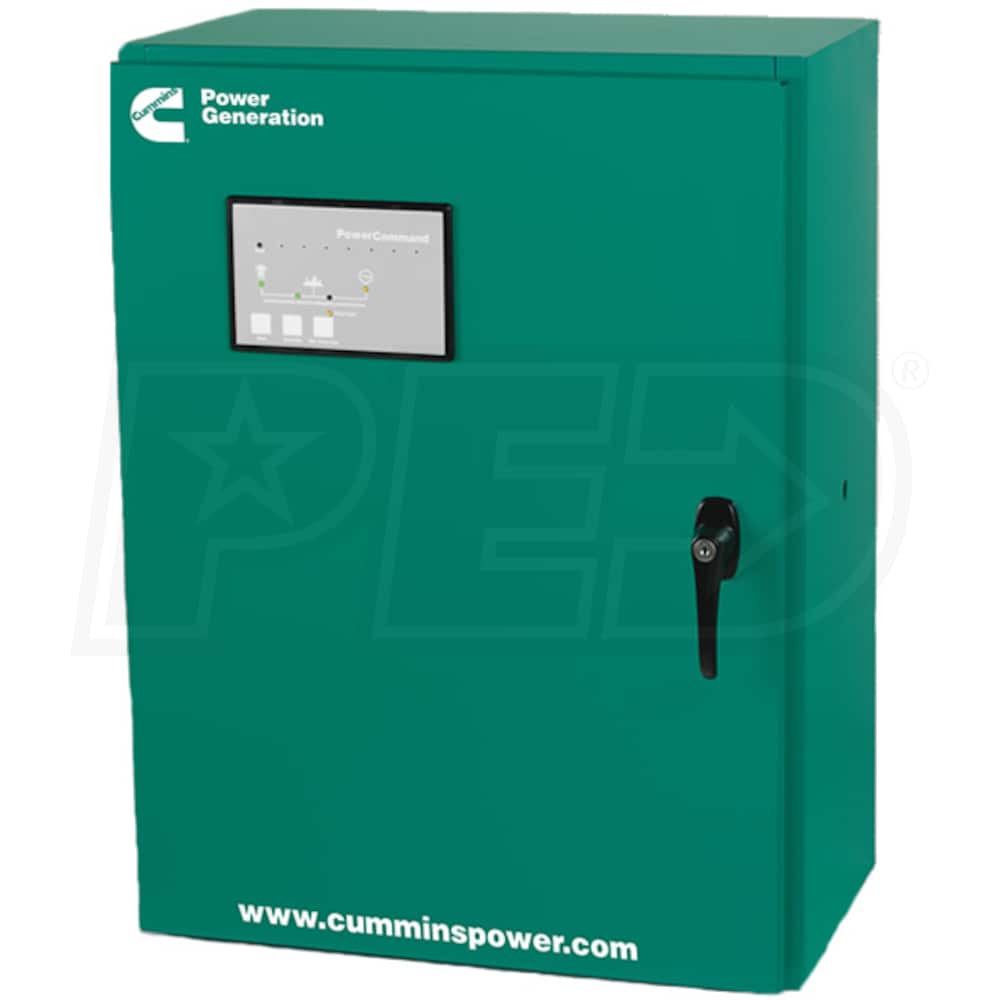

Cummins OTEC400 - 400-Amp PowerCommand® Indoor Automatic Transfer Switch (120/208V)

Cummins OTEC400 - 400-Amp PowerCommand® Indoor Automatic Transfer Switch (120/208V)
Our Price
Compare Prices
Shipping Info
Model: A040C966
$2,550.00
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Add-Ons

Factory-Direct
This Item Is Built To Order
Shipping Info
Shipping Info
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii, Indiana, , , California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Standard
Amp Rating
400
Load Mgmt.
Not Compatible
Enclosure
NEMA 1R
Type
Standart
Load Mgmt.
Not Compatible
?>
Enclosure
NEMA 1R
Features
Features
  • 400-Amp Automatic Indoor Transfer Switch (120/208V 3-Phase)
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand« Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Intergreal engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual opeation under de-energized conditions
  • Corrosion-Resistant NEMA 1R Enclosure
  • Approved for indoor applications
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programble
  • Meets UL 1008 Standards For Service Entrance Applications
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 1R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
165 Pounds
Product Length
54 Inches
Product Width
25 Inches
Product Height
18 Inches
Consumer Warranty
1 Year
Type
Standard
Amp Rating
400
Load Mgmt.
Not Compatible
Enclosure
NEMA 1R
Type
Standart
Load Mgmt.
Not Compatible
?>
Enclosure
NEMA 1R
Features
Features
  • 400-Amp Automatic Indoor Transfer Switch (120/208V 3-Phase)
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand« Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Intergreal engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual opeation under de-energized conditions
  • Corrosion-Resistant NEMA 1R Enclosure
  • Approved for indoor applications
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programble
  • Meets UL 1008 Standards For Service Entrance Applications
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 1R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
165 Pounds
Product Length
54 Inches
Product Width
25 Inches
Product Height
18 Inches
Consumer Warranty
1 Year
Product Specs
+
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 1R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
165 Pounds
Product Length
54 Inches
Product Width
25 Inches
Product Height
18 Inches
Consumer Warranty
1 Year
