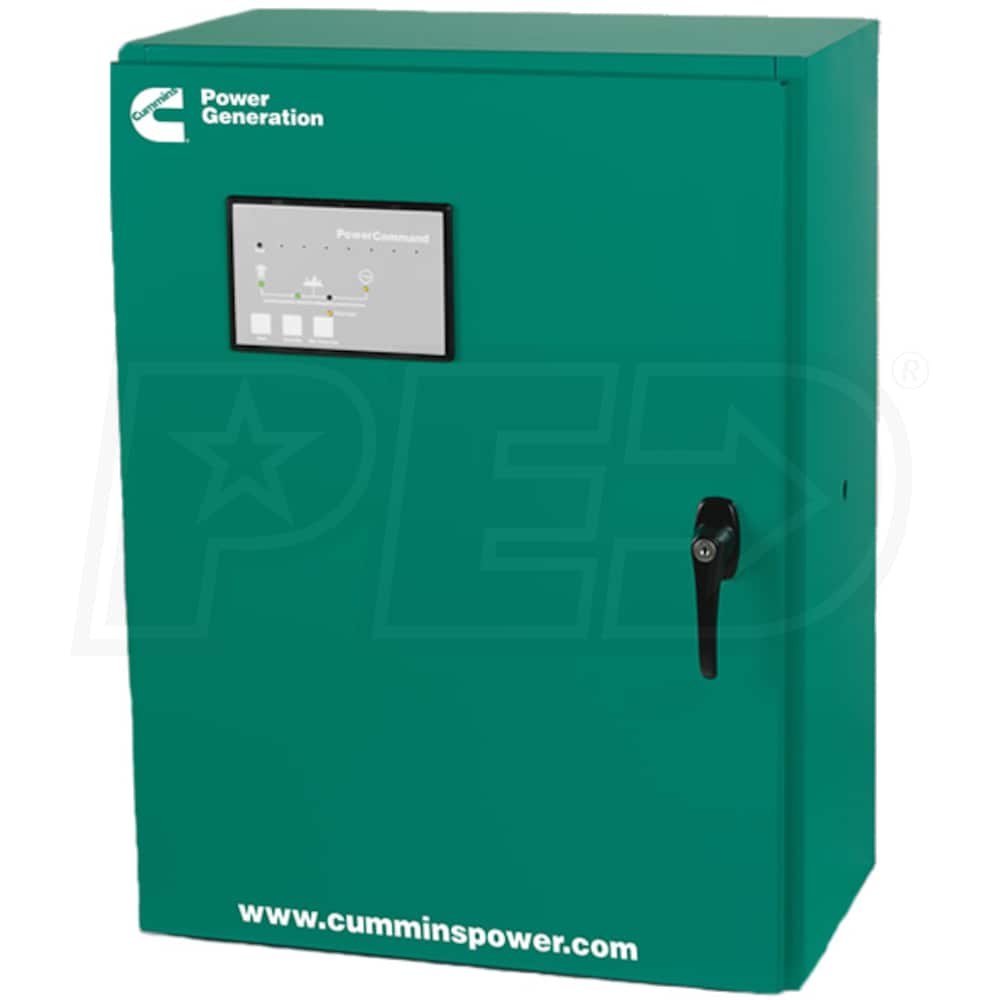

Cummins OTEC125 - 125-Amp PowerCommand® Indoor Automatic Transfer Switch (120/208V)

Cummins OTEC125 - 125-Amp PowerCommand® Indoor Automatic Transfer Switch (120/208V)
Model: A040C960
$1,371.00
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Tax-Free (Except IL)

Factory-Direct
This Item Is Built To Order
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Alaska, California, Hawaii, Indiana, North Dakota, Wisconsin or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Standard
Amp Rating
125
Load Mgmt.
Not Compatible
Enclosure
NEMA 1R
Type
Standart
Load Mgmt.
Not Compatible
?>
Enclosure
NEMA 1R
Features
Features
  • 125-Amp Automatic Indoor Transfer Switch (120/208V 3-Phase)
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand« Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Intergreal engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual opeation under de-energized conditions
  • Corrosion-Resistant NEMA 1R Enclosure
  • Approved for indoor applications
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programble
  • Meets UL 1008 Standards For Service Entrance Applications
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
125 Amps
Enclosure
NEMA 1R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
125 Amps
Max Generator Input
125 Amps
UL Listed
Yes
Overview
Weight
82 Pounds
Product Length
27 Inches
Product Width
20 Inches
Product Height
12 Inches
Consumer Warranty
1 Year
Type
Standard
Amp Rating
125
Load Mgmt.
Not Compatible
Enclosure
NEMA 1R
Type
Standart
Load Mgmt.
Not Compatible
?>
Enclosure
NEMA 1R
Features
Features
  • 125-Amp Automatic Indoor Transfer Switch (120/208V 3-Phase)
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand« Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Intergreal engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual opeation under de-energized conditions
  • Corrosion-Resistant NEMA 1R Enclosure
  • Approved for indoor applications
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programble
  • Meets UL 1008 Standards For Service Entrance Applications
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
125 Amps
Enclosure
NEMA 1R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
125 Amps
Max Generator Input
125 Amps
UL Listed
Yes
Overview
Weight
82 Pounds
Product Length
27 Inches
Product Width
20 Inches
Product Height
12 Inches
Consumer Warranty
1 Year
Product Specs
+
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
125 Amps
Enclosure
NEMA 1R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
125 Amps
Max Generator Input
125 Amps
UL Listed
Yes
Overview
Weight
82 Pounds
Product Length
27 Inches
Product Width
20 Inches
Product Height
12 Inches
Consumer Warranty
1 Year
Reviews
(1)
+
Cummins Power Generation A040C960 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Mike, the Generator Expert
icon-social-fb1
+
Can I get this with the optional internal 2-Amp battery charger?
John Wolchko
from Virginia
May 14, 2015
Answer
Thanks for your inquiry.

According to Cummins Onan all OTEC switches have a 2-amp battery charger on them.
