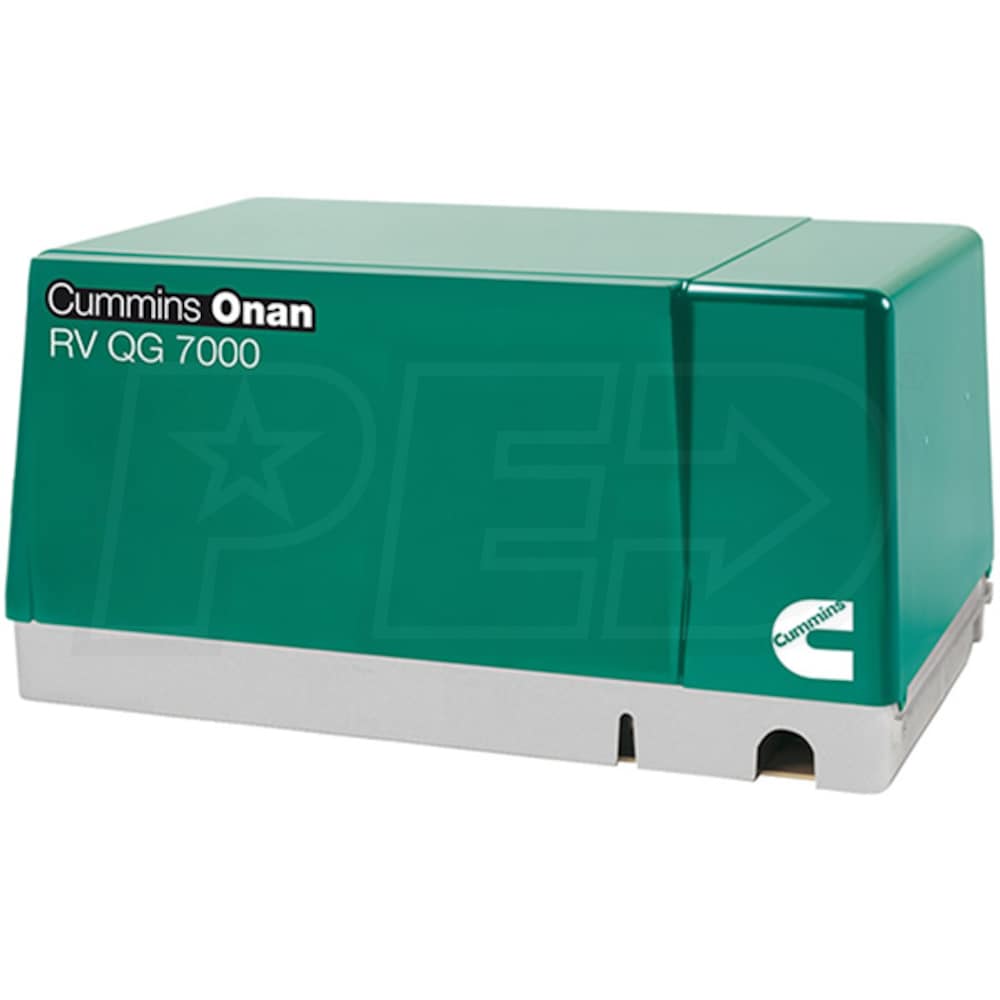

Cummins Onan RV QG 7000 - 7.0HGJAB-900 - 7kW RV Generator (Gasoline)

Model:

A063B878

Recommended
Write a Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Share

Features

Grade

Recreational

Style

RV

Run Watts

7,000 Rated Watts

Voltage

120 Single-Phase

Fuel

Gasoline

Engine

Cummins Onan



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    For Additional Models - Please Call Us @ 1-800-800-3317
  • 7.0 kW Gasoline Powered RV Generator (Model 900)
  • Provides more power for larger size RVs (30A & 30A Breakers)
  • Runs two 15,000 BTU AC units w/ 2000 additional watts available
  • Cummins Onan 4-Cycle OHV V-Twin Engine
  • Quietest in its class & fuel efficient (.7 Gal/h @ 1/2 Load)
  • Microprocessor Controlled
  • Digital voltage regulator prevents damaging voltage spikes
  • Self-diagnostic capability to simplify troubleshooting
  • Sound-Attenuating Enclosure w/ Thru Flow Cooling System
  • Integral USDA Forest Service-approved spark-arrestor muffler
  • NON EVAP MODEL- Generator Fuel Must Come from Chassis Fuel Tank
  • Universal Mounting Tray
  • Structural capability to support the generator set in RV apps.
  • 4-Point focalized mounting system with vibration isolators
  • Integral Control Panel
  • Instant one-touch stop switch
  • Added Features
  • Fuel filter, oil filter, air filter & mechanical governor
  • Automotive type starter & electric fuel pump
  • 3 Year / 2000 Hour Warranty (Please See Warranty Sheet)
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A063B878
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7000 Watts
Fuel Type
Gasoline
Rated Amps
58.3 Amps
Decibel Rating @ 3m
67
Fuel Consumption
.4-1.2 gallons/hr
Circuit Breaker Size
30 Amps
Min. Air Inlet - Front
4.7" x 18.7"
Min. Air Outlet - Bottom
6.3" x 17.8"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
14 HP
CC
653 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
290 Pounds
Consumer Warranty
3 Years
Product Length
33.6" Inches
Product Style
RV Generator
Product Width
22.2" Inches
Product Height
16.7" Inches
UPC
799530688610
Additional Model Numbers

RV QG 7000, A063B878
