Cummins Onan A063B870
Cummins Onan A063B870
Hover to zoom
1 Of 5

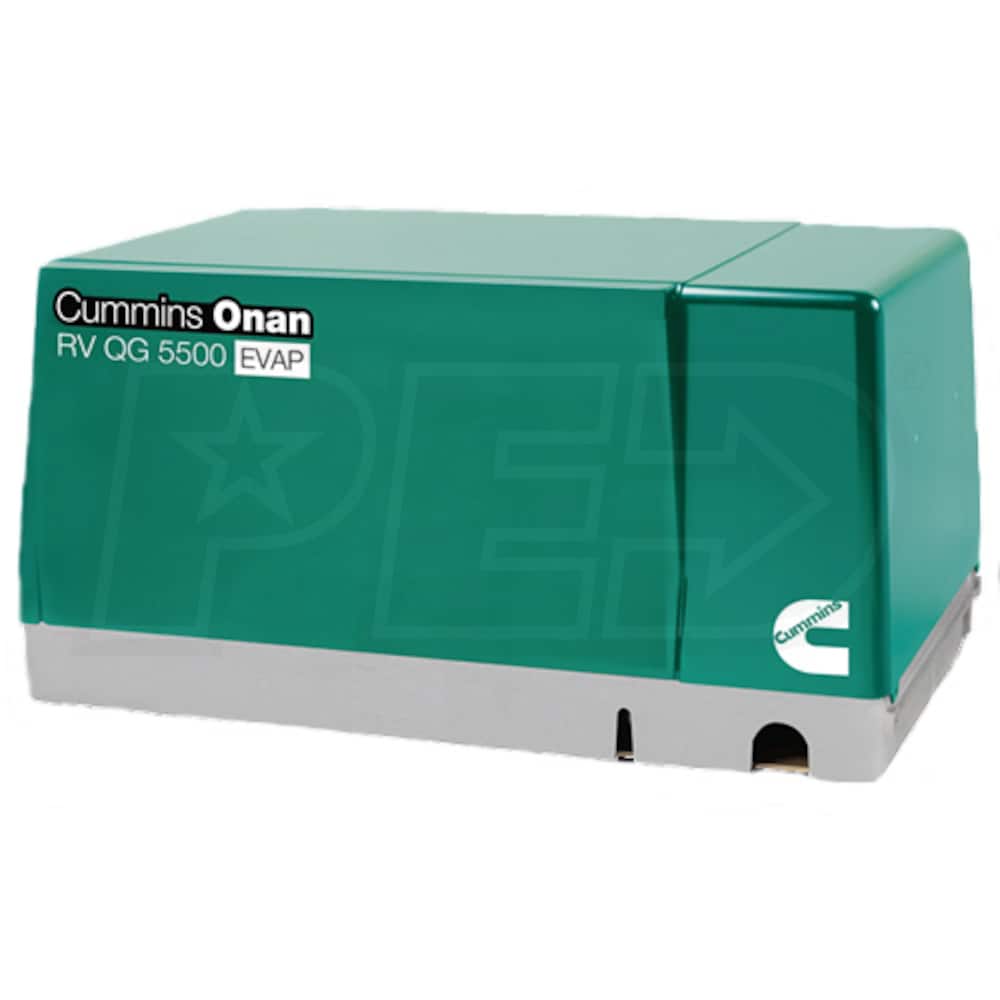

Cummins Onan RV QG5500 EVAP - 5.5HGJAB-7103 - 5.5kW RV Generator (Gasoline) EVAP Model

Model:

A063B870

Recommended
Write A Review
$5,264.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Wednesday, Mar 20th
Shipping to60601
synchrony card logo
$93 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Cummins Onan RV QG5500 EVAP - 5.5HGJAB-7103 - 5.5kW RV Generator (Gasoline) EVAP Model
Cummins Onan RV QG5500 EVAP - 5.5HGJAB-7103 - 5.5kW RV Generator (Gasoline) EVAP Model
Model: A063B870
$5,264.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

RV

Run Watts

5,500 Rated Watts

Voltage

120 Single-Phase

Fuel

Gasoline

Engine

Cummins Onan

    For Additional Models - Please Call Us @ 1-800-800-3317
  • 5.5 kW Gasoline Powered RV Generator EVAP (Model 6755)
  • More power for medium size RVs (30A & 20A Breakers)
  • Runs two 13,500 BTU AC units w/ 1100 additional watts available
  • Cummins Onan 4-Cycle OHV V-Twin Engine
  • Quietest in its class w/ excellent fuel efficiency
  • Microprocessor Controlled
  • Digital voltage regulator prevents damaging voltage spikes
  • Self-diagnostic capability to simplify troubleshooting
  • Sound-Attenuating Enclosure w/ Thru Flow Cooling System
  • Lowers noise levels while providing cross-flow cooling
  • Integral USDA Forest Service-approved spark-arrestor muffler
  • Universal Mounting Tray
  • Structural capability to support the generator set in RV apps.
  • 4-Point focalized mounting system with vibration isolators
  • Integral Control Panel
  • Instant one-touch stop switch
  • Added Features
  • Fuel filter, oil filter, air filter & mechanical governor
  • Automotive type starter & electric fuel pump
  • Meets CARB Tier 3 and EPA Phase 3 Standards
  • *For Additional Models - Please Call Us @ 1-800-800-3317
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A063B870
specs product image PID-9070
General Information
Product Category
Generator - RV
Overview
Product Category
Generator - RV
Weight
279 Pounds
Consumer Warranty
3 Years
Product Style
RV Generator
Additional Model Numbers

RV QG 5500 2, A063B870

Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Fuel Type
Gasoline
Rated Amps
45.8 Amps
Decibel Rating @ 3m
67
Fuel Consumption
.3-.9 gallons/hr
Circuit Breaker Size
20-30 Amps
Min. Air Inlet - Front
4.7" x 18.7"
Min. Air Outlet - Bottom
6.3" x 17.8"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
CC
653 CC
Consumer Engine Warranty
3 Years
Engine RPM
2400 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
