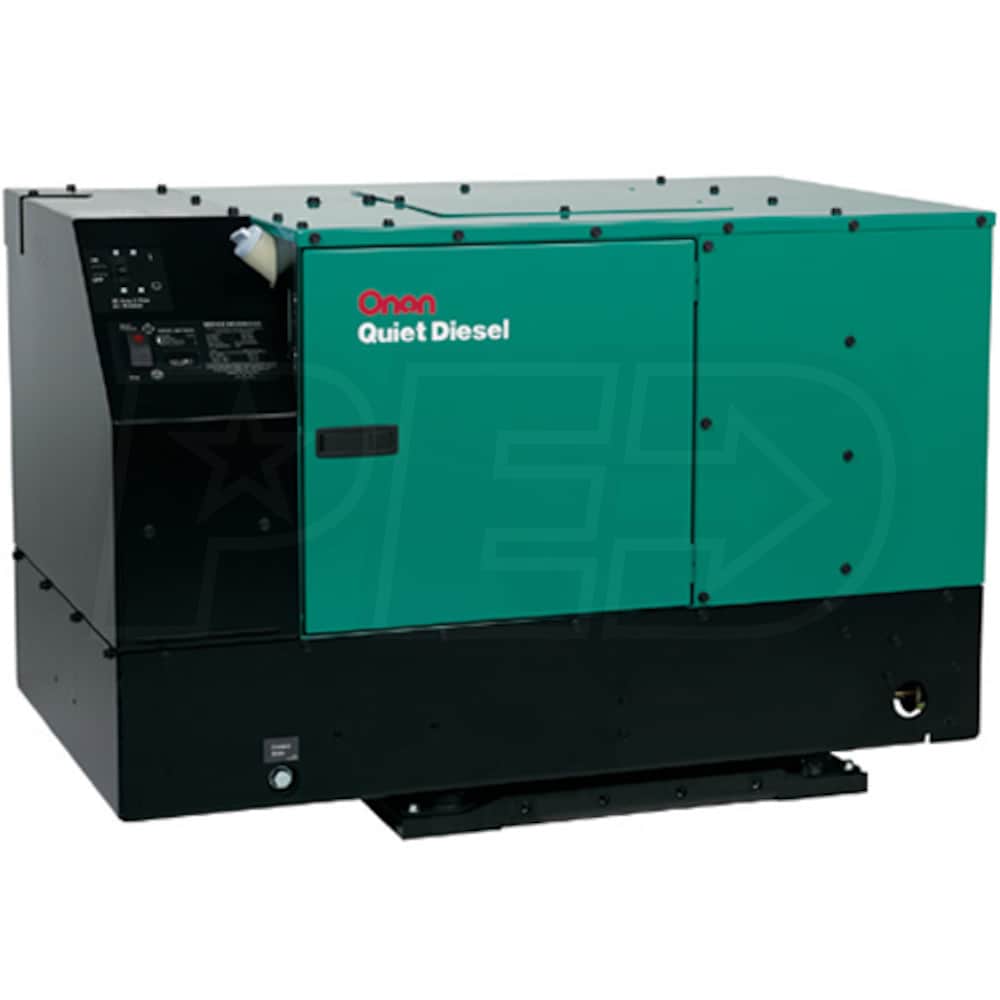

Cummins Onan RV QD10000 - 10HDKCA11506 - 10kW RV Generator (Diesel)

Model:

A055E835

Write a Review
$10,615.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 8-12 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
$186 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Cummins Onan RV QD10000 - 10HDKCA11506 - 10kW RV Generator (Diesel)
Cummins Onan RV QD10000 - 10HDKCA11506 - 10kW RV Generator (Diesel)
Model: A055E835
$10,615.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Grade

Recreational

Style

RV

Run Watts

10,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Diesel

Engine

Cummins Onan



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    For Additional Models - Please Call Us @ 1-800-800-3317
  • 10.0 kW Diesel Powered RV Generator (Model 11506)
  • Designed for Type A RVs w/ 3 AC units (45A 2-Pole Breaker)
  • Runs 3 15,000 BTU AC units w/ 2500 additional watts available
  • Cummins Onan 1499cc Liquid-Cooled Diesel Engine
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter (.43 Gal/h @ 1/2 Load)
  • Microprocessor Controlled
  • Self-diagnostic capability to simplify troubleshooting
  • High Quality, Pure Sine Wave Electrical Output
  • Digital voltage regulator prevents damaging spikes
  • Computer-Controlled Variable Speed Operation
  • Matches engine speed to load demand, minimizes noise levels
  • Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
  • Lowers noise levels while providing cross-flow cooling
  • Three-Point, Fully Focalized Mounting System
  • Reduces vibration for quieter operation
  • Stationary exhaust pipe connection point for easy installation
  • Integrated Generator Set & Engine Control
  • Provides user friendly controls and safety features
  • 3 Year / 2000 Hour Warranty (Please See Warranty Sheet)
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A055E835
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
10000 Watts
Fuel Type
Diesel
Rated Amps
41.7 Amps
Diesel Fuel Consumption @ 50% Load
.54 gallons/hr
Decibel Rating @ 3m
70
Idle Control
Yes
Hour Meter
Yes
Fuel Consumption
.38-.78 gallons/hr
Circuit Breaker Size
45 Amps
Min. Air Inlet - Front
19" x 12"
Min. Air Outlet - Bottom
15" x 16"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
27 HP
CC
1499 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Overview
Weight
767 Pounds
Consumer Warranty
3 Years
Product Length
41.4 Inches
Product Style
RV Generator
Product Width
24.5 Inches
Product Height
27 Inches
Additional Model Numbers

RV QD 10000, A055E835
